In the foundational architecture of fiber optic networks, understanding the cabling structure is as crucial as knowing your speeds and wavelengths. While all fiber optics transmit data as light, how those light signals are routed across single or multiple strands defines their application, efficiency, and scalability. The common terms are Simplex (one fiber) and Duplex (two fibers), but the demands of modern high-speed data centers have introduced a powerful third category: Multi-Fiber Push-On (MPO) or Parallel Optics.
This guide will not only define these three fundamental fiber optic cable structures but will also explore their practical applications, benefits, and limitations. By framing this as an evolution from basic single-strand communication to the sophisticated, multi-lane highways of MPO cabling, we’ll equip you with the knowledge to select the optimal fiber solution for your current and future network needs, from basic point-to-point links to 400G backbone connections.

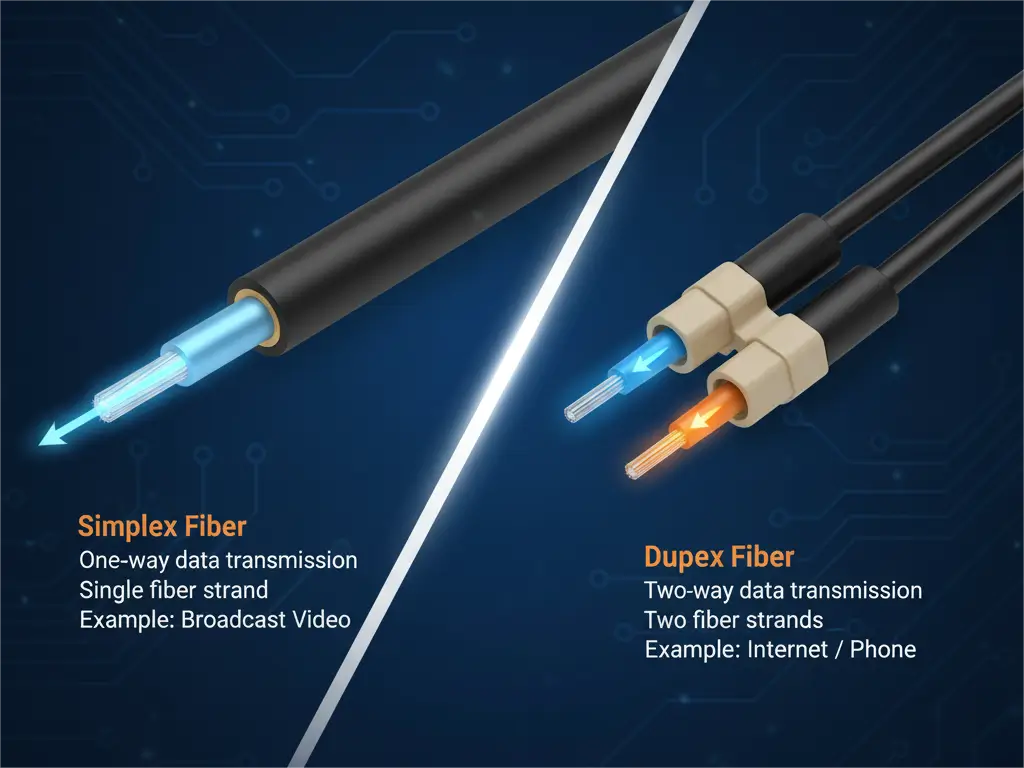

What is Simplex Fiber? (The One-Way Street)
Definition: Simplex fiber optic cable consists of a single strand of optical fiber. It is designed for one-way data transmission only. While historically used for truly unidirectional applications (like broadcast video feeds), its most common modern use is in conjunction with Bi-Directional (BiDi) Optical Transceivers.
How BiDi Transceivers Work: BiDi modules cleverly send and receive data on the same single fiber strand, but using different wavelengths of light (e.g., transmit at 1310nm and receive at 1550nm on one end, and vice-versa on the other). This allows full-duplex communication over a single fiber.
- Applications: Primarily used for:
- Fiber-to-the-Home (FTTH) / Passive Optical Network (PON): To conserve fiber resources for last-mile connectivity.
- Specific security camera feeds: Where data mostly flows one way.
- Cost/Space Optimization: In scenarios where fiber count is extremely limited, BiDi modules can double the effective capacity of existing fiber infrastructure.
- Pros: Saves a significant amount of physical fiber, reducing cable bulk and cost over long distances.
- Cons: Requires more expensive, specialized BiDi Transceivers at both ends. Slower to troubleshoot as it’s harder to isolate Tx/Rx issues.
What is Duplex Fiber? (The Two-Way Highway)
Definition: Duplex fiber optic cable consists of two strands of optical fiber, typically bundled together in a single jacket. Each strand handles data flow in one direction: one for transmitting (Tx) and one for receiving (Rx). This configuration allows for simultaneous, two-way (full-duplex) communication between devices.
- Applications: Duplex fiber is the industry standard for most enterprise and data center connections up to 100G (using WDM for high speeds).
- Standard Ethernet connections: From 1GbE to 100GbE (with appropriate transceivers).
- Fiber Channel: For Storage Area Networks (SAN).
- Typical LC Patch Cords: The ubiquitous LC-Duplex connector is the most common fiber optic interface in the world.
- Pros: Straightforward installation, easy troubleshooting (Tx and Rx paths are separate), and uses widely available, cost-effective SFP/SFP+/QSFP Transceivers that typically have dedicated Tx and Rx ports.
- Cons: Requires two fiber strands per link, which can add to cable bulk and reduce fiber density in extremely high-fiber-count scenarios compared to parallel optics.
PHILISUN Integration: Our PHILISUN LC Duplex Patch Cords are engineered to industry standards, providing reliable, low-loss connections for all your standard SFP/SFP+ and QSFP-ER/LR transceivers.
Beyond Duplex: The Rise of Parallel Optics (MPO)
The increasing demand for 40GbE, 100GbE, 200GbE, and 400GbE in data centers pushed the limits of duplex communication. While Wavelength Division Multiplexing (WDM) can pack more data into two fibers, for ultra-high speeds over short distances, Parallel Optics emerged as a more efficient solution.
Definition: Parallel optics utilizes multiple fiber strands to transmit and receive data simultaneously, with each strand carrying a portion of the total signal. The most common connector type for parallel optics is the MPO (Multi-fiber Push On) connector, which can house 8, 12, 16, or 24 fibers in a single ferrule.
- How it Works (Example: 100G-SR4): A 100G-SR4 QSFP28 transceiver uses 8 fibers in an MPO connector: 4 fibers transmit 25Gbps each, and 4 fibers receive 25Gbps each. This creates a total 100Gbps link.
- Applications: Critical for:
- High-density data center interlinks: Connecting Top-of-Rack (ToR) switches to End-of-Row (EoR) or Spine switches.
- 40G, 100G, 200G, 400G Ethernet: Especially SR4, PSM4, DR4 types of transceivers.
- Fiber Trunking: Consolidating many duplex connections into a single, high-density MPO cable.
- Pros: Extremely high bandwidth in a compact form factor, superior fiber density, simpler transceiver design (no complex WDM filters needed for short runs).
- Cons: Requires specific MPO cabling (e.g., Type B polarity for SR4), different inspection and cleaning tools, and a precise understanding of fiber count and polarity.
Which One Do You Need? (Selection Guide)
The choice depends entirely on your application, distance, and required bandwidth:
- Simplex (BiDi):
- Use When: You have only one fiber strand available, or you need to maximize fiber usage for last-mile connections (e.g., FTTH).
- Example: A remote security camera sending data back to a central server.
- Duplex (LC/SC):
- Use When: You need full-duplex communication for 1GbE, 10GbE, 25GbE, or longer-distance WDM 40G/100G links. This is the most common standard for enterprise networks and general data center patching.
- Example: Connecting a server to a switch at 10Gbps using SFP+ SR/LR transceivers.
- MPO (Parallel Optics):
- Use When: You require very high bandwidth (40G, 100G, 400G) over short to medium distances (especially within a data center rack or between racks), or when fiber density is paramount for trunking multiple lower-speed links.
- Example: A 100G uplink from a ToR switch to a spine switch using QSFP28 SR4 modules.
FAQ: Simplex vs. Duplex vs. MPO Fiber
- Q: Can I connect Simplex fiber to a standard Duplex transceiver (e.g., an SFP+ SR)?
- A: No, you cannot. A standard duplex transceiver has distinct Tx and Rx optical ports and requires two separate fiber strands for full-duplex operation. Connecting a simplex fiber would only provide one-way communication or no link at all.
- Q: What is a BiDi transceiver, and why is it used with Simplex fiber?
- A: A BiDi (Bi-Directional) transceiver is a specialized optical module designed to transmit and receive data over a single fiber strand. It achieves this by using different wavelengths for transmission and reception (e.g., 1310nm for Tx, 1550nm for Rx). It’s used to conserve fiber, especially in passive optical networks (PON) or last-mile deployments.
- Q: Is MPO considered a type of Duplex fiber?
- A: No, MPO is not considered duplex. Duplex specifically refers to two fibers. MPO is a multi-fiber connector designed for parallel optics, meaning it houses 8, 12, 16, or 24 fibers in a single ferrule to enable very high bandwidths by transmitting data simultaneously across multiple strands.
- Q: Can I break out an MPO cable into multiple LC duplex connections?
- A: Yes, absolutely! This is a very common application for MPO technology. You can use an MPO-to-LC breakout cable (or MPO fanout cable) or an MPO cassette within a patch panel to convert one high-density MPO trunk into multiple standard LC duplex ports, connecting 40G/100G MPO ports to 10G LC ports.
- Q: What is the main benefit of using MPO cables in a data center?
- A: The primary benefits are high density (packing many fibers into a small connector, reducing cable bulk), high bandwidth support (essential for 40G/100G/400G parallel optics), and rapid deployment (pre-terminated MPO trunks significantly speed up installation).
Conclusion: The Evolving Landscape of Fiber Cabling
From the simplicity of a single simplex strand to the robust two-way communication of duplex fiber, and finally, to the high-bandwidth density of MPO parallel optics, the evolution of fiber cabling reflects the ever-increasing demands of our digital world. Understanding these structures is fundamental to designing a scalable, efficient, and future-proof network.
Whether you’re optimizing an existing infrastructure with BiDi modules, deploying standard enterprise connections with duplex LC patch cords, or building a next-generation data center backbone with high-density MPO trunks, selecting the right fiber structure is paramount.
