As global network infrastructures continue to expand, managing fiber-optic connections efficiently has become essential for performance and reliability. In environments like data centers, telecom networks, and enterprise facilities, structured cable management determines not only network speed but also scalability and maintenance efficiency.
At the center of this structure lies the Optical Distribution Frame (ODF) — a critical component that organizes, protects, and connects fiber cables within modern optical networks.
As a trusted manufacturer of fiber-optic connectivity solutions, PHILISUN provides high-quality ODF systems that combine precision engineering with modular flexibility, ensuring long-term network stability and simplified operation.

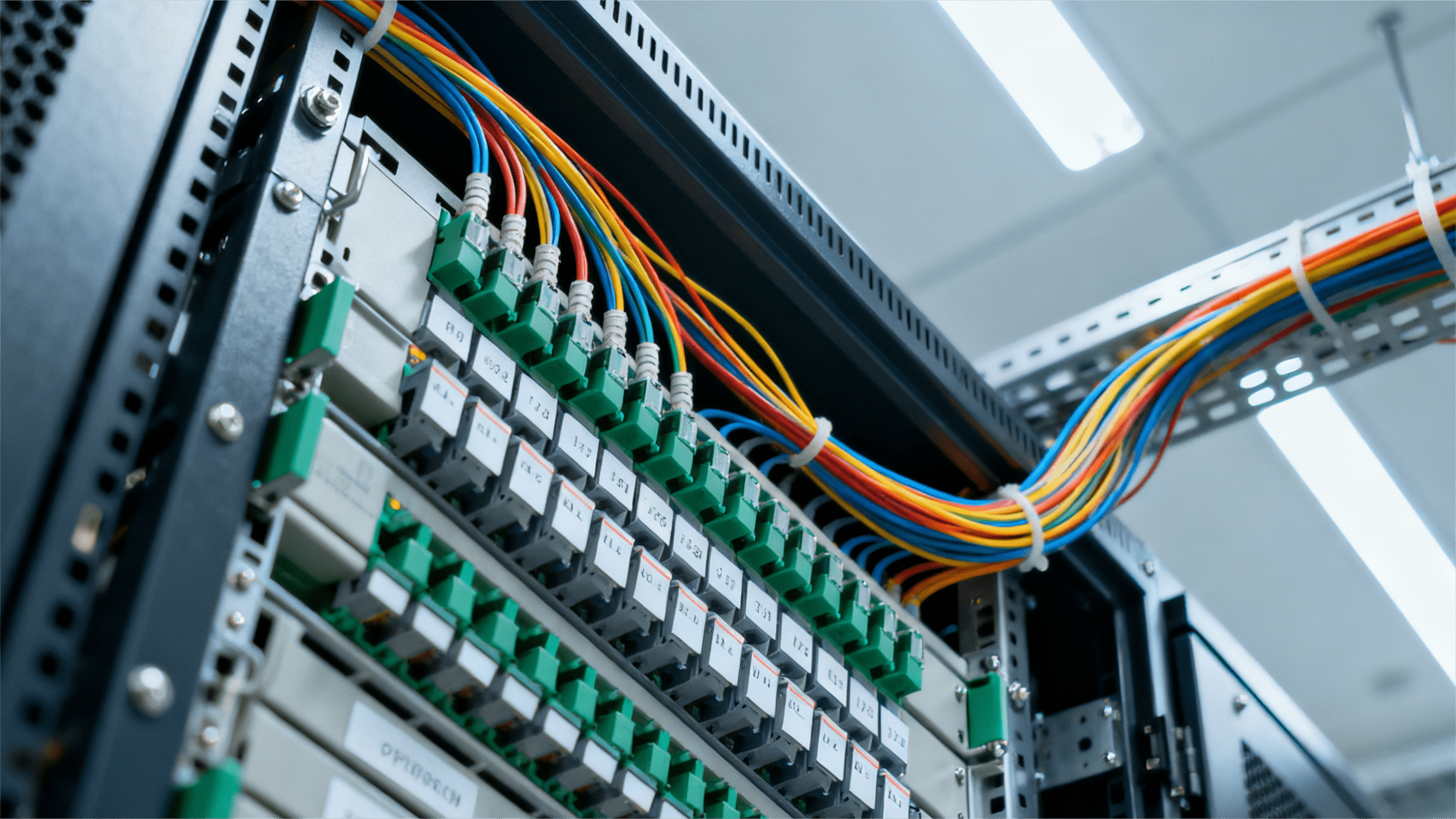

What Is an Optical Distribution Frame (ODF)?
An Optical Distribution Frame (ODF) is a centralized system used to terminate, connect, and manage multiple fiber cables within a telecommunication or data transmission network. It serves as the interface between external fiber cables and internal network equipment.
Inside a well-designed ODF, you’ll typically find:
- Adapter panels or couplers that house fiber terminations.
- Splice trays for joining fibers securely.
- Cable organizers that maintain proper routing and bend radius.
- Protective covers that shield delicate fibers from environmental damage.
- Labeling and documentation zones for clear maintenance identification.
Through these components, an ODF ensures that every fiber path is neatly organized and easily accessible — enabling faster deployment, testing, and troubleshooting.
How Does an ODF Work?
The function of an ODF is to provide a structured interface between incoming trunk cables and outgoing patch cords connected to active devices like switches or routers.
Fiber strands entering from outside are terminated and spliced within the ODF. Patch cords then connect these terminations to equipment ports, creating a flexible network layout.
In essence, an ODF acts as a fiber management hub, facilitating maintenance, reconfiguration, and network scaling — all while protecting fragile optical fibers from mechanical stress and contamination.
Main Components of an ODF
- Enclosure or Frame – The structure that holds all fiber termination modules.
- Adapter Panels – Contain connectors like LC, SC, or MPO for plug-in connections.
- Splice Trays – Securely hold spliced fibers, protecting them from physical strain.
- Cable Management Units – Control bending radius and separate fiber routes.
- Labeling Areas – Provide quick port identification for maintenance and upgrades.
Why an ODF Matters in Network Infrastructure
1. Organization and Efficiency
By providing a central, structured point for all fiber terminations, an ODF eliminates cable clutter. It simplifies network management and reduces errors during configuration or maintenance.
2. Fiber Protection
An ODF prevents bending, stretching, and contamination of optical fibers, all of which can cause signal loss. Proper cable routing ensures stable optical transmission.
3. Ease of Maintenance
Engineers can easily test, reroute, or replace fibers without disturbing active connections. This minimizes downtime and simplifies troubleshooting.
4. Scalability
As networks evolve from 10G to 400G and beyond, ODFs can be expanded by adding more panels or modules — ensuring compatibility with future standards.
5. Reliability and Performance
A professionally designed ODF minimizes mechanical stress and insertion loss, leading to higher uptime and consistent data transmission quality.
Common Types of Optical Distribution Frames
Wall-Mount ODF
Compact and ideal for smaller installations, wall-mounted ODFs are often used in office buildings or small telecom rooms. They handle lower fiber counts while offering strong protection in limited spaces.
Rack-Mount ODF
Suitable for 19-inch rack systems, these are commonly deployed in data centers. They offer high-density configurations with front-access panels for efficient patching and management.
Floor-Standing ODF
Designed for large-scale backbone or carrier networks, floor-standing ODFs support hundreds to thousands of fibers. They offer modular scalability and optimal routing space.
Comparison of ODF Types
| ODF Type | Typical Fiber Capacity | Ideal Environment | Key Features |
| Wall-Mount ODF | 12–48 fibers | Offices, small telecom closets | Compact, easy access, simple deployment |
| Rack-Mount ODF | 48–288 fibers | Data centers, network cabinets | Modular design, high-density, scalable layout |
| Floor-Standing ODF | 288–1000+ fibers | Central offices, carriers | Large capacity, full management, high stability |
ODF vs. Fiber Patch Panel
While both ODFs and patch panels are used for fiber management, their purposes differ.
A patch panel primarily handles straightforward fiber connections within small networks.
An ODF, however, integrates splicing, protection, and structured routing, offering a more complete solution for medium to large-scale systems.
If your network demands frequent reconfiguration or future expansion, the ODF provides the flexibility and resilience that patch panels alone cannot deliver.
Installation and Maintenance Best Practices
To maintain maximum performance:
- Follow minimum bend radius guidelines to prevent attenuation.
- Keep connectors clean and capped when not in use.
- Use clear labeling for all ports and splice trays.
- Separate incoming and outgoing cables to reduce tangling.
- Regularly inspect for cable tension and dust contamination.
Adopting these practices ensures long-term reliability and ease of network management.
Single-Mode vs. Multimode Fibers in ODFs
ODFs can accommodate both single-mode (SMF) and multimode (MMF) fibers:
- Single-mode fibers are used for long-haul transmission and high-speed communication between facilities.
- Multimode fibers are more common in building-to-building or intra-data center connections due to lower cost and shorter-distance efficiency.
Selecting the right fiber type based on your network architecture is key to achieving cost-effective, high-performance communication.
Future Trends in ODF Design
As networks migrate toward 5G, IoT, and cloud-edge computing, ODF systems are evolving with:
- High-density MPO/MTP modules to support parallel transmission.
- Pre-terminated fiber solutions that reduce installation time.
- Intelligent ODFs featuring port monitoring and digital labeling systems.
These innovations make ODFs more adaptive to next-generation infrastructure needs.
Conclusion
The Optical Distribution Frame (ODF) is more than just a storage unit — it’s the heart of organized, high-performance fiber management.
From protecting fibers and simplifying maintenance to ensuring scalability for future upgrades, a well-designed ODF defines the reliability of your entire optical network.
PHILISUN offers a comprehensive range of ODF solutions designed for data centers, telecom systems, and enterprise environments. With a focus on precision, modularity, and long-term dependability, PHILISUN’s ODF products ensure your network remains clean, efficient, and future-ready.
