Generic Compatible 10/100BASE-T SFP 100m Copper RJ45 Transceiver Module

SFPCO-01A-01-RJ45-SGMII

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFPCO-01A-01-RJ45-SGMIIManufacturer BrandPHILISUN
Package TypeSFPOptical ConnectorRJ45
Max Data Rate125Mbps10G Effective Transmission Distance100m
Hot-Pluggable SFPYESOperating voltage3.3V
Power Consumption-ProtocolsSFP MSA
IEEE Std 802.3
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃



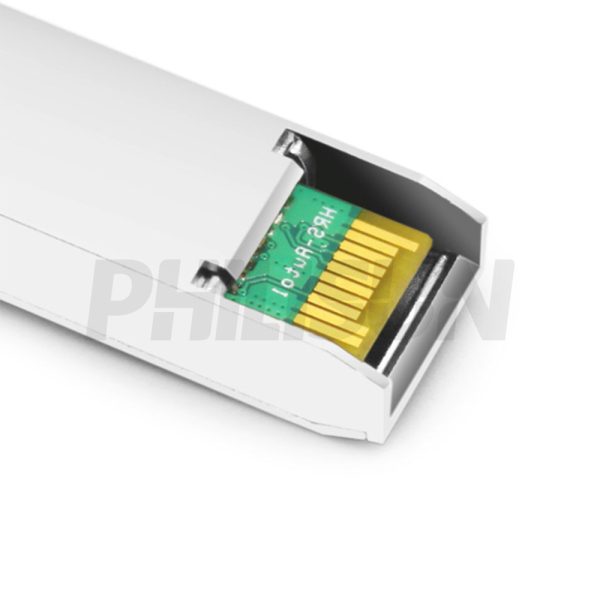

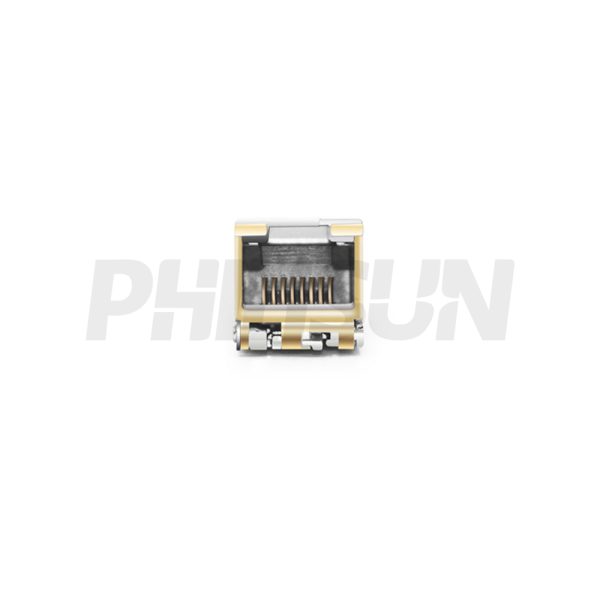

PRODUCT PRESENTATION

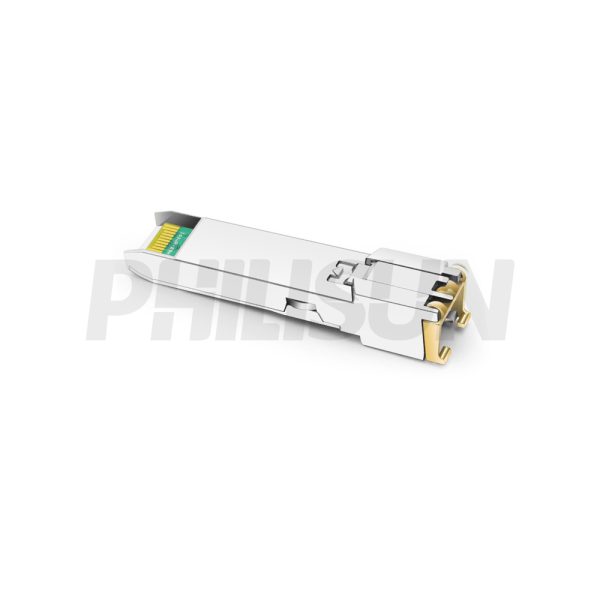

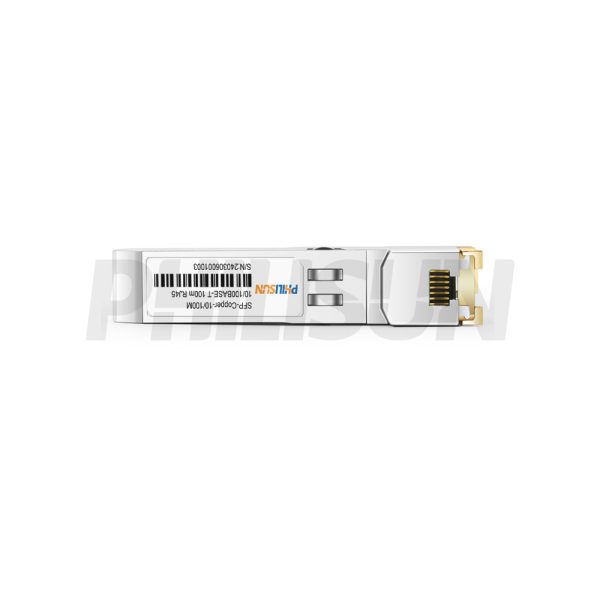

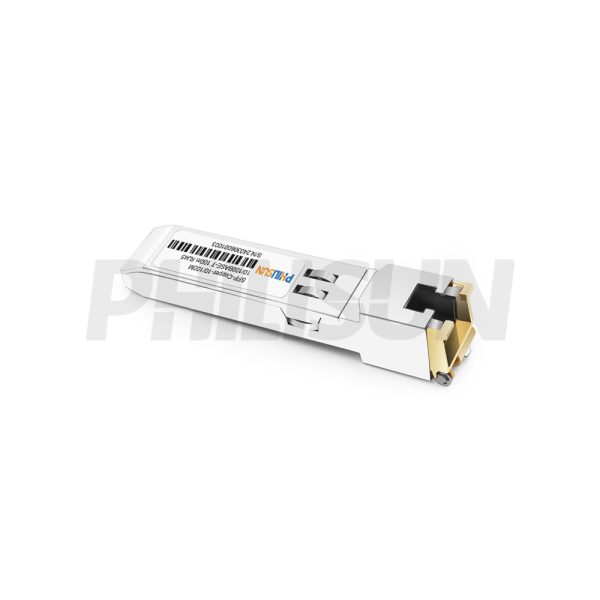

The PHILISUN SFP-Copper 10/100BASE-T 100m RJ45 transceiver is a compact, high-performance, and cost-effective Small Form Pluggable (SFP) module, designed for 10/100BASE-T applications. Built on the SFP Multi-Source Agreement (MSA) standard, this transceiver complies with IEEE 802.3-2002 and IEEE 802.3u specifications, supporting up to 100 Mbps data transmission over 100 meters via unshielded twisted-pair category-5 cable. It also offers essential scrambling and descrambling between 100Base-TX and 100Base-FX formats, along with intelligent auto-negotiation for seamless 100BASE-T operation in host systems.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Typ Max.
Maximum supply voltage Vcc -0.5 – 4.0
Storage temperature TS -40 – +85



Normal Operating Condition
Parameter Symbol Min Typ Max Units Ref.
Operating case temperature Tc 0 – 70 °C Standard
-40 – 85 Industrial
Supply voltage Vcc 3.15 3.3 3.45 V –



Electrical Characteristics
Parameter Symbol Min Typ Max Units Notes/Conditions
 +3.3 Volt Electrical Power Interface
Supply current Icc – 170 300 mA –
Input voltage Vcc 3.13 3.3 3.47 V –
Surge vurrent Isurge – – 30 mA –
Low-Speed Signals, Electronic Characteristics
SFP output low VOL 0 – 0.5 V 4.7k to 10k pull-up to host_Vcc,measured at host side of connector
SFP output high VOH host_Vcc-0.5 – host_Vcc+0.3 V 4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP input low VIL 0 – 0.8 V 4.7k to 10k pull-up to Vcc, measured at SFP side of connector
SFP input high VIH 2 – Vcc + 0.3 V 4.7k to 10k pull-up to Vcc, measured at SFP side of connector
 High-Speed Electrical Interface, Transmission Line-SFP
Line baud rates fL – 125 – MHz MLT-3 encoding per IEEE802.3u
TX output impedance Zout, TX
–
 100 – Ohm Differential, AC coupled Internally
RX input impedance Zin, RX – 100 – Ohm Differential, AC coupled Internally
 High-Speed Electrical Interface, Host-SFP
Single ended data input swing Vin 250
–
 1200 mV Single ended
Single ended data output swing Vout 300 – 1000 mV Single ended
Rise/Fall time Tr, Tf
–
 3
–
 nsec 20%-80%
TX Iinput impedance Zin
–
 50
–
 Ohm Single ended
   RX output impedance  Zout – 50 – Ohm Single ended



General Specifications
Parameter Symbol Min Typ Max Units Notes/Conditions
Data rate SFPCO-01A-01-RJ45-SGMII – 10 – Mbps –
– 125 – –
Distance – – – 100 m Category 5 UTP. BER <10-12



PIN DESCRIPTIONS
Pin No. Name Function Plug Seq. Notes
1 VeeT Transmitter ground 1 –
2 TX fault Transmitter fault indication 3 1
3 TX disable Transmitter disable 3 2
4 MOD-DEF2 Module definition 2 3 3
5 MOD-DEF1 Module definition 1 3 3
6 MOD-DEF0 Module definition 0 3 3
7 Rate select Not connected 3 –
8 LOS Los of signal 3 4
9 VeeR Receiver ground 1 –
10 VeeR Receiver ground 1 –
11 VeeR Receiver ground 1 –
12 RD- Inv. received data out 3 5
13 RD+ Received data out 3 5
14 VeeR Receiver ground 1 –
15 VccR Receiver power 2 6
16 VccT Transmitter power 2 6
17 VeeT Transmitter ground 1 –
18 TD+ Transmit data in 3 7
19 TD- Inv. transmit data in 3 7
20 VeeT Transmitter ground 1 –
1. TX Fault is not used and tied to ground within the module.

2. TX Disable is not used and is not connected within the module.

3. MOD-DEF 0,1,2 are the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VccT or VccR.
MOD-DEF 0 is tied to ground within the module.
MOD-DEF 1 is the clock line of two wire serial interface for serial ID
MOD-DEF 2 is the data line of two wire serial interface for serial ID

4. The LOS will be LVTTL low for link ok and will be LVTTL high for link off.  Externally pull up to VccR or VccT with 4.7k – 10k ohm on host board.

5. These are the differential receiver output. Internally AC-coupled in the transceiver. 100Ω differential lines and 100 Ω terminate resistor should be used on the host board.

6. VccT and VccR are internally connected together in the transceiver.

7. These are the differential receiver input. Internally AC-coupled in the transceiver. 100Ω differential lines and 100 Ω terminate resistor is used in the transceiver.



The following is the Diagram of host board connector block pin numbers and names



SERIAL COMMUNICATION PROTOCOL
PHILISUN Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA.
These SFP use a 128 byte EEPROM with an address of A0H.



EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.



Table 1 Serial ID Memory Contents
Addr. Size(Bytes) Name of Field Hex Description
BASE ID FIELDS
0 1 Identifier 03 SFP
1 1 Ext. Identifier 04 SFP function is defined by serial ID only
2 1 Connector 22 RJ-45
3- 10 8 Transceiver 00 00 00 20 00 00 00 00 100BASE-FX
11 1 Encoding 02 4B5B
12 1 BR, Nominal 01 100M
13 1 Reserved 00 –
14 1 Length (9µm)km 00 Transceiver transmit distance
15 1 Length(9µm)100m 00
16 1 Length (50µm) 10m 00
17 1 Length(62.5µm)10m 00
18 1 Length (Copper) 64 100m
19 1 Reserved 00 –
20-35 16 Vendor name XX XX XX XX XX XX XX XX  20 20 20 20 20 20 20 20 Vendor name (ASCII)
36 1 Reserved 00 –
37-39 3 Vendor OUI XX XX XX –
40-55 16 Vendor PN Transceiver part number
56-59 4 Vendor rev XX XX XX XX –
60-61 2 Wavelength 00 –
62 1 Reserved 00 –
63 1 CC_BASE Check Sum (Variable) Check code for Base ID Fields
EXTENDED ID FIELDS
64-65 2 Options 00 00 –
66 1 BR,max 00 –
67 1 BR,min 00 –
68-83 16 Vendor SN XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 Serial Number of transceiver (ASCII). For example“B000822” .
84-91 8 Date code XX XX XX XX XX XX XX XX Manufacture date code. For example “080405” .
92-94 3 Reserved XX –
95 1 CC_EXT Check Sum (Variable) Check sum for Extended ID Field.
VENDOR SPECIFIC ID FIELDS
96-127 32 Vendor Specific Read only Depends on customer information
128-255 128 Reserved Read only –
