400GBASE-SR8 QSFP-DD 850nm 100m MPO16 MMF Transceiver

SPECIFICATIONS
Product Model	QSFPDD-400(4x100)-13-2(FR4)-LCD	Manufacturer brand	PHILISUN
Package Type	QSFPDD	Optical connector	LC DX
Max Data Rate	400Gbps	Channel Data Rate	53.125Gbps
Effective transmission distance	2km
Wavelength	1310nm	Operating voltage	3.3V
Fiber Type	SMF	Core Size	9/125
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-3.3~3.5dBm	Receiver Sensitivity	-4.6dBm
Digital Optical Monitoring(DOM)	YES	Receiver Overload	3.5dBm
Power Consumption	<10W	Protocols	400G Ethernet Infiniband interconnect Data center Enterprise Networking MSA
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

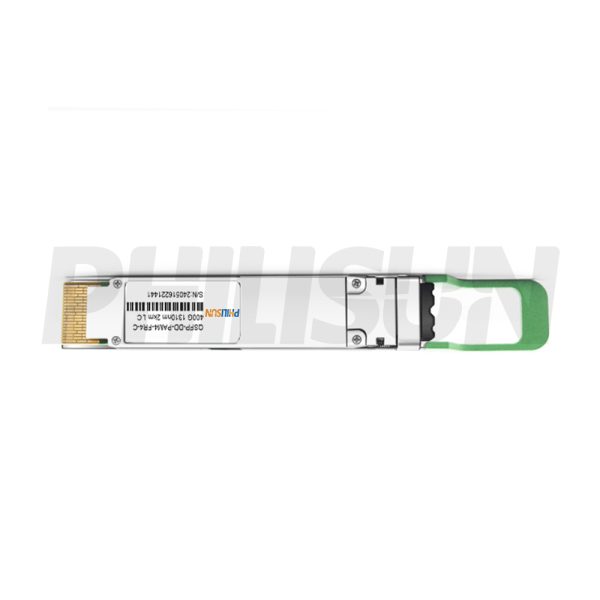

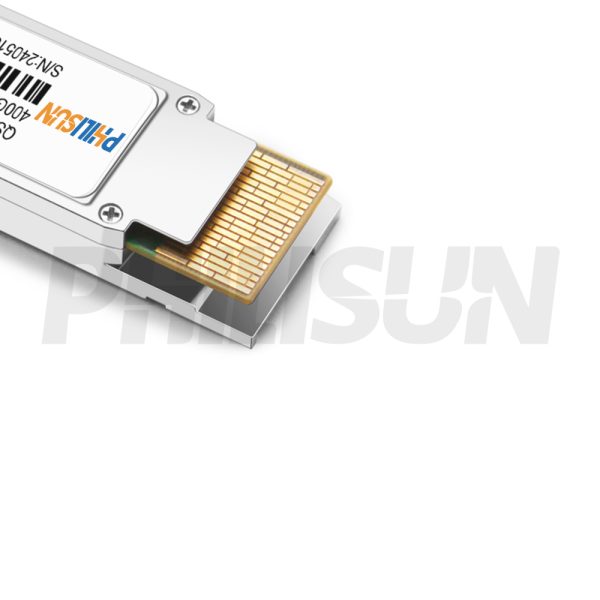

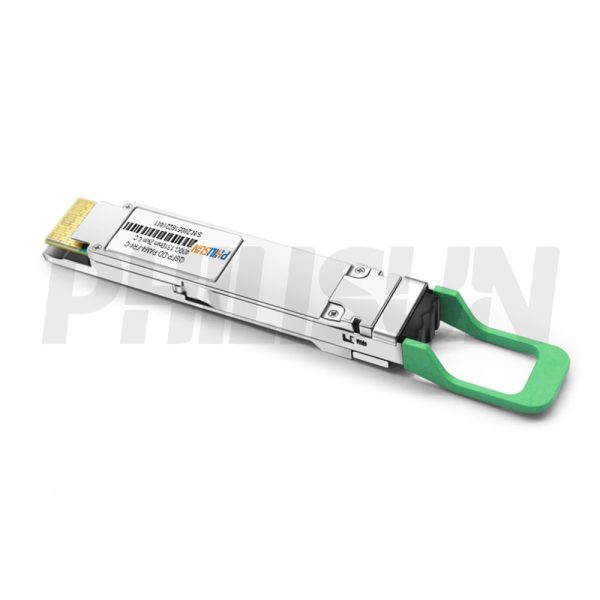

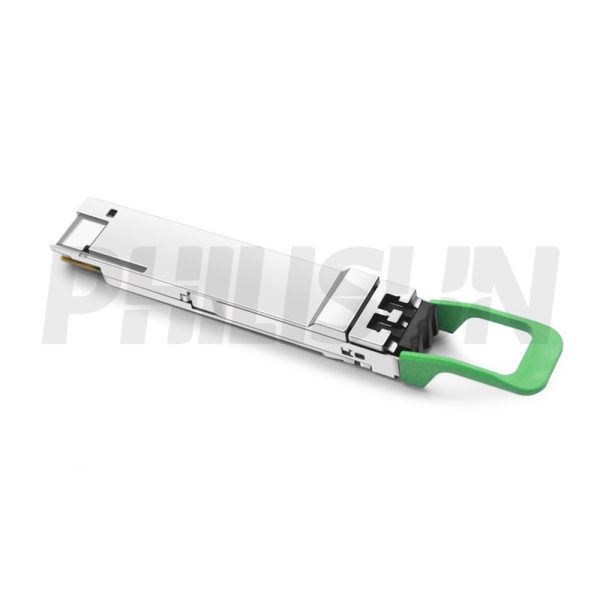

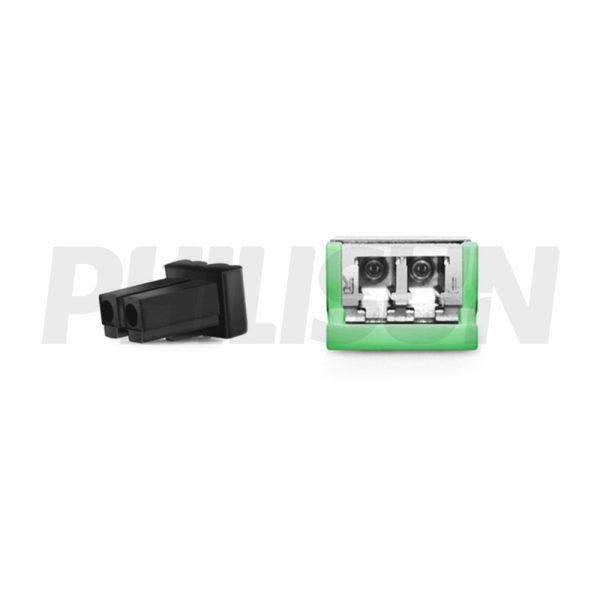

The PHILISUN QSFP-DD 400G (4x100G) 1310nm 2km FR4 LC DX transceiver is a high-performance 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for optical communication applications over distances of up to 2km. The module converts 8 channels of 50Gb/s (PAM4) electrical input into 4 CWDM optical signals, multiplexing them into a single channel for 400Gb/s optical transmission. On the receiver side, it de-multiplexes a 400Gb/s optical input into 4 CWDM optical signals and converts them back into 8 channels of 50Gb/s (PAM4) electrical output.The 4 CWDM channels operate at central wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm, as defined by the CWDM wavelength grid in ITU-T G.694.2. The transceiver features a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To ensure minimal optical dispersion over long distances, single-mode fiber (SMF) is required for this module. Host Forward Error Correction (FEC) is also necessary to support transmission over 2km.With its advanced design and adherence to industry standards, this transceiver is an ideal solution for high-speed, long-range optical communication applications.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

400G 850nm 100M sr8 mpo16 transceiver production and testing equipment

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	°C
Relative humidity	RH	0	85	%
These values represent the damage threshold of the module.Stress in excess of any of theindividual absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min.	Typical	Max	Unit
Power supply voltage	VCC	3.135	3.30	3.465	V
Operating case temperature	Tca	0	–	70	℃
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Data rate per lane	DR	53.125±100ppm			Gbps	–
Transmitter
Input differential impedance	Rin	90	100	110	Ω	–
Differential input voltage swing	Vin	900	–	1100	mVp-p	–
Receiver
Differential output swing	Vout	–	–	900	mVp-p	–
Output differential impedance	Rout	900	100	110	Ω	–
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.

Optical Characteristics
Parameter		Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Center wavelength	Ch0	λ0	1264.5	1271	1277.5	nm	–
	Ch1	λ1	1284.5	1291	1297.5
	Ch2	λ2	1304.5	1311	1317.5
	Ch3	λ3	1324.5	1331	1337.5
Data rate,each lane			53.125±100ppm			GBd	–
Side-mode suppression ratio		SMSR	30	–	–	dB	–
Average optical power,per lane		Po	-3.3	–	3.5	dBm	1
Extinction ratio		ER	3.5	–	–	dBm	–
Transmitter and dispersion eye closure		TDECQ	–	–	3.4	dB	–
Optical return loss tolerance		ORL	–	–	17.1	dB	–
Receiver
Center wavelength	Ch0	λ0	1264.5	1271	1277.5	nm	–
	Ch1	λ1	1284.5	1291	1297.5
	Ch2	λ2	1304.5	1311	1317.5
	Ch3	λ3	1324.5	1331	1337.5
Data rate,each lane		–	53.125±100ppm			GBd	–
Average receive power,each lane		–	-7.3	–	3.5	dBm	–
Receive power(OMAouter), each lane		–	–	–	3.7	dBm	–
Receiver sensitivity(OMAouter), each lane		–	–	–	-4.6	dBm	2
LOS asserted		Lsa	-20	–	–	dBm	–
LOS de-asserted		Lda		–	-10.3	dBm	–
LOS hysteresis		Lh	0.5	–	–	dB	–
Note: [1]Average launch power,each lane(min)isinformative and not the principal indicator ofsignal strength.Atransmitter with launch power below this value cannot be compliant;however,avalue above this does not ensure compliance. [2]Measured with conformance test signal at TP3 for BER=2.4E-4 Pre-FEC
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

QSFP-DD TRANSCEIVER ELECTRICAL PAD LAYOUT

PIN DEFINITION

Pin Definition
Pad	Logic	Symbol	Name/Description
1	–	GND	Ground
2	CML-I	Tx2n	Transmitter inverted data input
3	CML-I	Tx2p	Transmitter non-inverted data input
4	–	GND	Ground
5	CML-I	Tx4n	Transmitter inverted data input
6	CML-I	Tx4p	Transmitter non-inverted data input
7	–	GND	Ground
8	LVTTL-I	ModSelL	Module select
9	LVTTL-I	ResetL	Module reset
10	–	Vcc Rx	+3.3V Power supply receiver
11	LVCMOS- I/O	SCL	2-wire serial interface clock
12	LVCMOS- I/O	SDA	2-wireserial interface data
13	–	GND	Ground
14	CML-O	Rx3p	Receiver non-inverted data output
15	CML-O	Rx3n	Receiver inverted data output
16	–	GND	Ground
17	CML-O	Rx1p	Receiver non-inverted data output
18	CML-O	Rx1n	Receiver inverted data output
19	–	GND	Ground
20	–	GND	Ground
21	CML-O	Rx2n	Receiver onverted data output
22	CML-O	Rx2p	Receiver non-inverted data output
23	–	GND	Ground
24	CML-O	Rx4n	Receiver inverted data output
25	CML-O	Rx4p	Receiver non-onverted data output
26	–	GND	Ground
27	LVTTL-O	ModPrsL	Module present
28	LVTTL-O	IntL	Interrupt
29	–	VCC Tx	+3.3V power supply transmitter
30	–	VCC1	+3.3V power supply
31	LVTTL-I	InitMode	Initialization mode;in legacy QSFP applications,the initMode pad is called LPMODE
32	–	GND	Ground
33	CML-I	Tx3p	Transmitter non-inverted data input
34	CML-I	Tx3n	Transmitter inverted data input
35	–	GND	Ground
36	CML-I	Tx1p	Transmitter non-Inverted data input
37	CML-I	Tx1n	Transmitter inverted data input
38	–	GND	Ground
39	–	GND	Ground
40	CML-I	Tx6n	Transmitter inverted data input
41	CML-I	Tx6p	Transmitter non-inverted data input
42	–	GND	Ground
43	CML-I	Tx8n	Transmitter inverted data input
44	CML-I	Tx8p	Transmitter non-inverted data input
45	–	GND	Ground
46	–	Reserved	For future use
47	–	VS1	Module vender specific1
48	–	Vcc Rx1	3.3V power supply receiver
49	–	VS2	Module vender specific2
50	–	VS3	Module vender specific3
51	–	GND	Ground
52	CML-O	Rx7p	Receiver non-inverted data output
53	CML-O	Rx7n	Receiver inverted data output
54	–	GND	Ground
55	CML-O	Rx5p	Receiver non-inverted data output
56	CML-O	Rx5n	Receiver inverted data output
57	–	GND	Ground
58	–	GND	Ground
59	CML-O	Rx6n	Receiver inverted data output
60	CML-O	Rx6p	ReceiverNon-inverted data output
61	–	GND	Ground
62	CML-O	Rx8n	Receiver inverted data output
63	CML-O	Rx8p	Receiver non-inverted data output
64	–	GND	Ground
65	–	NC	No connect
66	–	Reserved	For futureuse
67	–	VCC Tx1	3.3V power supply transmitter
68	–	VCC2	3.3V power supply
69	–	Reserved	For future use
70	–	GND	Ground
71	CML-I	Tx7p	Transmitter non-inverted data input
72	CML-I	Tx7n	Transmitter inverted data input
73	–	GND	Ground
74	CML-I	Tx5p	Transmitter non-inverted data input
75	CML-I	Tx5n	Transmitter inverted data input
76	–	GND	Ground
