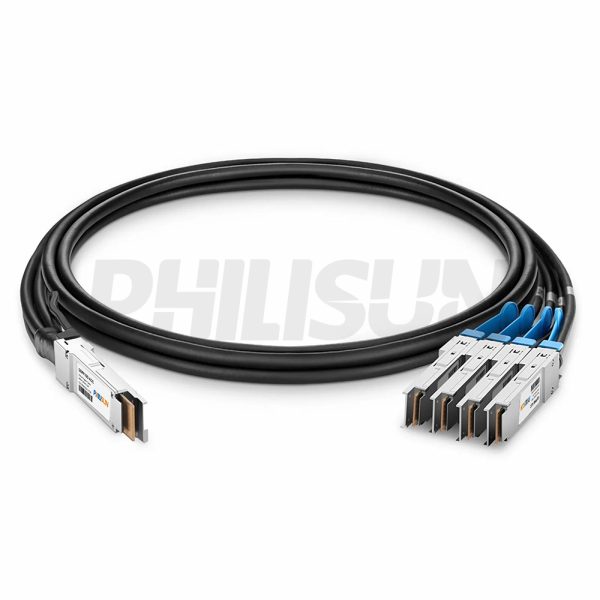

400G QSFP-DD to 4x100G QSFP56 Active Direct Attach Copper Twinax Cable (ACC)

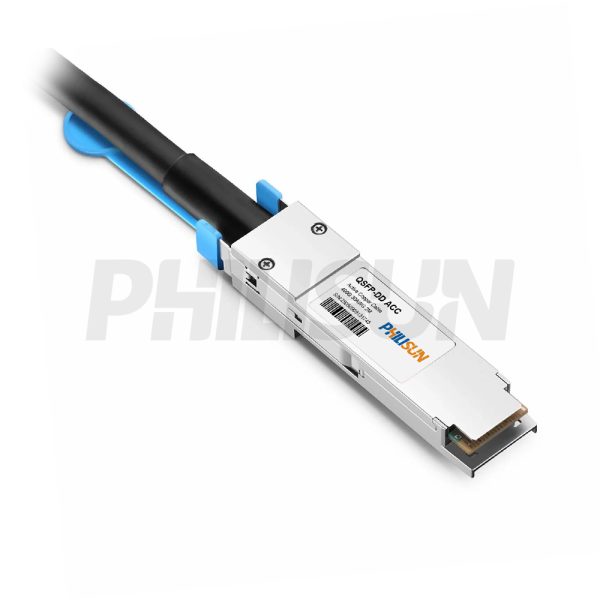

400G QSFP DD to 4×100G QSFP56 Active Direct Attach Copper Twinax Cable (ACC) product detail view 1

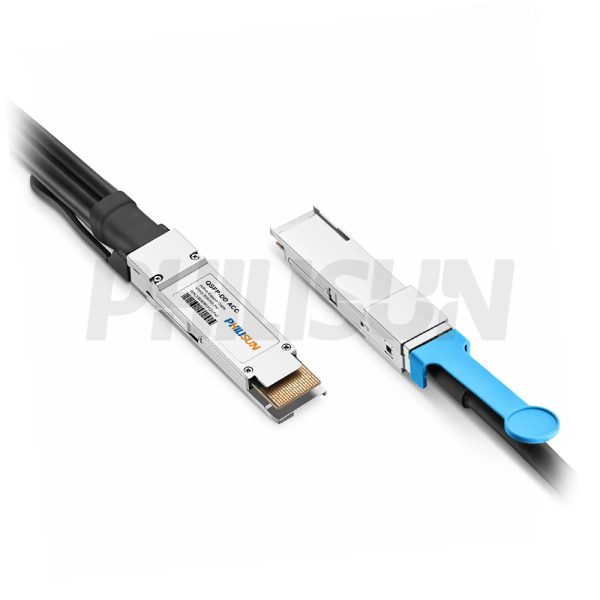

400G QSFP DD to 4×100G QSFP56 Active Direct Attach Copper Twinax Cable (ACC) product detail view 2

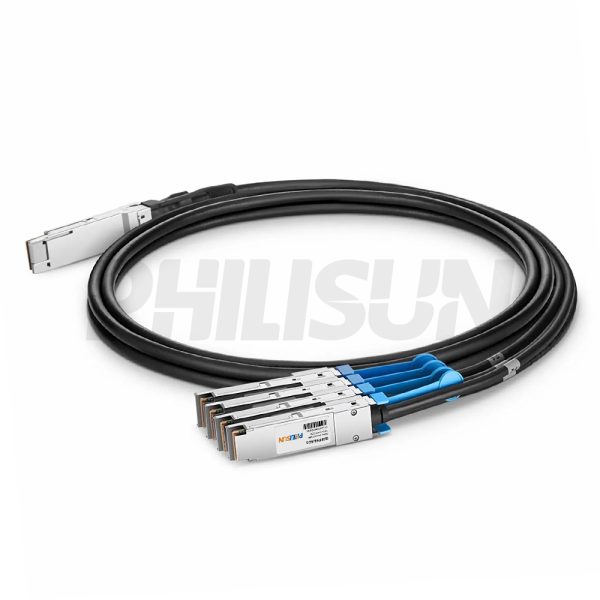

400G QSFP DD to 4×100G QSFP56 Active Direct Attach Copper Twinax Cable (ACC) product detail view 3

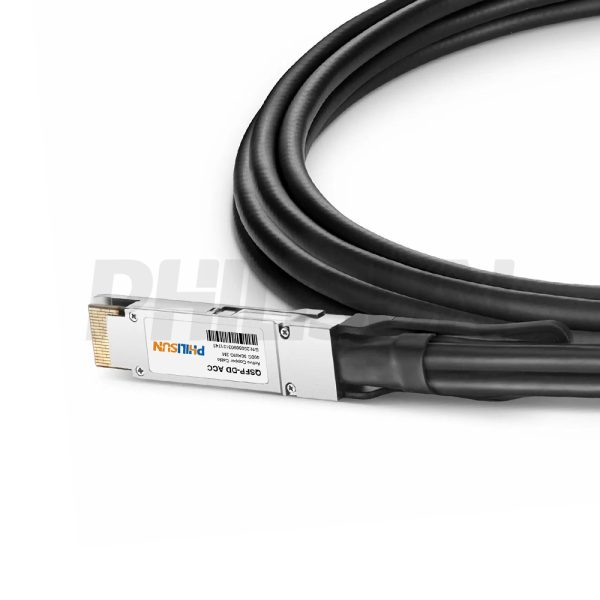

400G QSFP DD to 4×100G QSFP56 Active Direct Attach Copper Twinax Cable (ACC) product detail view 4

400G QSFP-DD to 4×100G QSFP56 ACC

Compliant with
QSFP-DD MSA, SFF-8636 standard
Switch to Switch
Switch to GPU

Category: Brand: Related collections: ,
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Cable End Connector AQSFP-DDCable End Connector B4×QSFP56
Jumper TypeActive Optical Breakout CableData Rate400G
Aggregate Bit Rate425GbpsLane Bit Rate53.125Gbps
Number of Channels8Single Channel Rate50G
Minimum Bend Radius5X Cable OD -Single, 10X Cable OD - RepeatedFactory BrandPHILISUN
Attenuation26AWG:10dB/8.5m maximum
28AWG:10dB/7m maximum
30AWG:8.4dB/5.5m maximum		Bit Error Rate≤10-12
ShieldBraid/FoilWire AWG26AWG/28AWG/30AWG
Cable TypeActive TwinaxCable OD30AWG: 14.0mm
28AWG:16.0mm
26AWG:18.0mm
Cable Colour/MaterialBlack PVC(OFNR)Cable Length Selection1-7meter
ProtocolsQSFP-DD MSA/CMIS Rev 4.0/IEEE 802.3cd/SFF-8472/SFF-8679/SFF-8636Application Scenarios400Gigabit Ethernet (400GbE)
Supply Voltage3.3VPower Dissipation<0.1W
Operating Temperature0 to 70℃ (32 to 158℉)Storage Temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION
The PHILISUN 400G QSFP-DD to 4x100G QSFP56 active high-speed breakout cable is designed for high-density applications. The hot-pluggable transceiver integrates 8 transmit and 8 receive channels.This QSFP-DD pluggable solution supports 400G transmission and is fully compliant with QSFP-DD MSA, SFF-8636 and SFF-8679 standards.It provides a high-performance, high-bandwidth, cost-effective interconnect solution for 400G and multi-rate applications.

DAC SERIES PRODUCTS
400G QSFP dd 4 100G qsfp56 acc dac series products



PRODUCTION & TESTING EQUIPMENT
400G QSFP dd 4 100G qsfp56 acc aoc production and testing equipment



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Unit Min Typical Max. Notes
Storage Temperature ºC -45 – 80 –
Power Supply not Damaged Voltage V -1 – 3.6 –
 Operating Relative Humidity % – – 85 –



Recommended Operating Conditions
Parameter Unit Min Typical Max Notes
OperatingCase Temperature ºC 0 – 70 –
Power Supply Voltage V 3.135 3.3 3.465 –
Bit Rate Gbps – 400 – –



Characteristics
Item Parameter Reference
SCD21-SDD21 8dB<X<17 . 16dB @13.28 GHz IEEE 802.3cd,Clause 136.11.2
SDD11/22 – 16.5+2*sqrt(f )dB Max @0.05GHz-4.1GHz

– 10.66+14*1og(f/5.5) dB Max@4.1GHz-
19GHz

 –
SCD11/22 -22+(20/25.78) *f DB(Max@0.01GHz~12.89GHz- 15+(6/25.78)
*f dB Max@12.89GHz~19GHz)		 IEEE802.3cd,Clause 136.11.4
SCD21-SDD21 – 10dB Max @0.01GHz~12.89GHz -27+(29/22) *f dB Max
@12.89GHz~15.7GHz -6.3dB Max.@15.7GHz~19GHz		 IEEE802.3cd,Clause 136.11.5
SCC11/22 -2dB Max. @0.2GHz~19GHz IEEE802.3cd,Clause 136.11.6
COM 3 dB Min –



PIN Function Definitions of QSFP-DD
Pin No. Symbol Level/Logic Description
1 GND – Module Ground
2 Tx2n CML-I Transmitter Inverted Data Input
3 Тx2р CML-I Transmitter Non-Inverted Data Input
4 GND – Module Ground
5 Tx4n CML-I Transmitter Inverted Data Input
6 Tx4p CML-I Transmitter Non-Inverted Data Input
7 GND – Module Ground
8 ModSelL LVTTL-I Module Select
9 ResetL LVTTL-I Module Reset
10 VccRx – +3.3V Power Supply for Receiver
11 SCL LVTTL-I 2-Wire Serial Interface Clock
12 SDA LVTTL-I/O 2-Wire Serial Interface Data Line
13 GND – Module Ground
14 Rx3p CML-O Receiver Non-Inverted Data Output
15 Rx3n CML-O Receiver Inverted Data Output
16 GND – Module Ground
17 Rx1p CML-O Receiver Non-Inverted Data Output
18 Rx1n CML-O Receiver Inverted Data Output
19 GND – Module Ground
20 GND – Module Ground
21 Rx2n CML-O Receiver Inverted Data Output
22 Rx2p CML-O Receiver Non-Inverted Data Output
23 GND – Module Ground
24 Rx4n CML-O Receiver Inverted Data Output
25 Rx4p CML-O Receiver Non-Inverted Data Output
26 GND – Module Ground
27 ModPrsL LVTTL-O Module Present
28 IntL/RxLOSL LVTTL-O Interrupt.Optionally configurable as RxLOSL via the
management interface(SFF-8636).
29 VccTx – +3.3V Power Supply for Transmitter
30 Vcc1 – +3.3V Power Supply
31 LPMode/TxDis LVTTL-I Low Power Mode.Optionally configurable as TxDis via the
management interface (SFF-8636).
32 GND – Module Ground
33 Tx3p CML-I Transmitter Non-Inverted Data Input
34 Tx3n CML-I Transmitter Inverted Data Input
35 GND – Module Ground
36 Tx1p CML-I Transmitter Non-Inverted Data Input
37 Tx1n CML-I Transmitter Inverted Data Input
38 GND – Module Ground
39 GND – Module Ground
40 Tx6n CML-I Transmitter Inverted Data Input
41 Tx6p CML-I Transmitter Non-Inverted Data Input
42 GND – Module Ground
43 Tx8n CML-I Transmitter Inverted Data Input
44 Tx8p CML-I Transmitter Non-Inverted Data Input
45 GND – Module Ground
46 Reserved – For future use
47 VSI – Module Vendor Specific 1
48 VccRx1 – 3.3V Power Supply
49 VS2 – Module Vendor Specific 2
50 VS3 – Module Vendor Specific 3
51 GND – Module Ground
52 Rx7p CML-O Receiver Non-Inverted Data Output
53 Rx7n CML-O Receiver Inverted Data Output
54 GND Module Ground
55 Rx5p CML-O Receiver Non-Inverted Data Output
56 Rx5n CML-O Receiver Inverted Data Output
57 GND – Module Ground
58 GND – Module Ground
59 Rx6n CML-O Receiver Inverted Data Output
60 Rx6p CML-O Receiver Non-Inverted Data Output
61 GND – Module Ground
62 Rx8n CML-O Receiver Inverted Data Output
63 Rx8p CML-O Receiver Non-Inverted Data Output
64 GND – Module Ground
65 NC – No Connect
66 Reserved – For future use
67 VccTx1 – 3.3V Power Supply
68 Vcc2 – 3.3V Power Supply
69 Reserved – For future use
70 GND – Module Ground
71 Tx7p CML-I Transmitter Non-Inverted Data Input
72 Tx7n CML-I Transmitter Inverted Data Input
73 GND – Module Ground
74 Tx5p CML-I Transmitter Non-Inverted Data Input
75 Tx5n CML-I Transmitter Inverted Data Input
76 GND – Module Ground



PIN Function Definitions of QSFP56
Pin No. Symbol Level/Logic Description
1 GND – Module Ground
2 Tx2n CML-I Transmitter Inverted Data Input
3 Tx2p CML-I Transmitter Non-Inverted Data Input
4 GND – Module Ground
5 Tx4n CML-I Transmitter Inverted Data Input
6 Tx4p CML-I Transmitter Non-Inverted Data Input
7 GND – Module Ground
8 ModSelL LVTTL-I Module Select
9 ResetL LVTTL-I Module Reset
10 VccRx – +3.3V Power Supply for Receiver
11 SCL LVTTL-I 2-W ire Serial Interface Clock
12 SDA LVTTL-I/O 2-W ire Serial Interface Data Line
13 GND – Module Ground
14 Rx3p CML-O Receiver Non-Inverted Data Output
15 Rx3n CML-O Receiver Inverted Data Output
16 GND – Module Ground
17 Rx1p CML-O Receiver Non-Inverted Data Output
18 Rx1n CML-O Receiver Inverted Data Output
19 GND – Module Ground
20 GND – Module Ground
21 Rx2n CML-O Receiver Inverted Data Output
22 Rx2p CML-O Receiver Non-Inverted Data Output
23 GND – Module Ground
24 Rx4n CML-O Receiver Inverted Data Output
25 Rx4p CML-O Receiver Non-Inverted Data Output
26 GND – Module Ground
27 ModPrsL LVTTL-O Module Present
28 IntL/RxLOSL LVTTL-O Interrupt. Optionally configurable as RxLOSL via the
management interface (SFF-8636).
29 VccTx – +3.3V Power Supply for Transmitter
30 Vcc1 – +3.3V Power Supply
31 LPMode/T Dis LVTTL-I Low Power Mode. Optionally configurable as TxDis via the
management interface (SFF-8636).
32 GND – Module Ground
33 Tx3p CML-I Transmitter Non-Inverted Data Input
34 Tx3n CML-I Transmitter Inverted Data Input
35 GND – Module Ground
36 Tx1p CML-I Transmitter Non-Inverted Data Input
37 Tx1n CML-I Transmitter Inverted Data Input
38 GND – Module Ground



Electrical Pad Layout of QSFP-DD

QSFP-DD electrical pad layout diagram 1

QSFP-DD electrical pad layout diagram 2
Electrical Pad Layout of QSFP56
Electrical Pad Layout of QSFP
PRODUCT CERTIFICATION
AOC product certification document



COMPATIBLE BRANDS
Compatible optical transceiver brands graphic
CONFIGURATION INFORMATION
DAC/ACC/AEC产品详情订购信息
