800G OSFP 500m DOM 2MPO8/12 SMF Optical Transceiver Module

SPECIFICATIONS
Product Model	OSFP-800(8x100G）-PAM4-05-(DR8)-MPO16/2MPO8/12	Manufacturer brand	PHILISUN
Package Type	OSFP	Optical connector	Dual MTP-12 APC
Max Data Rate	800Gbps	Channel Data Rate	106.25 Gb/s
Effective transmission distance	500m
Wavelength	1310nm	Operating voltage	3.3V
Fiber Type	SMF	Core Size	9/125
Transmitter Type	EML	Receiver Type	PIN
TX Power	-2.9~4.0dBm	Receiver Sensitivity	-5.9dBm
Digital Optical Monitoring(DOM)	YES	Receiver Overload	4dBm
Power Consumption	<16.5W	Protocols	800G Ethernet 2x400G Ethernet IB NDR
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

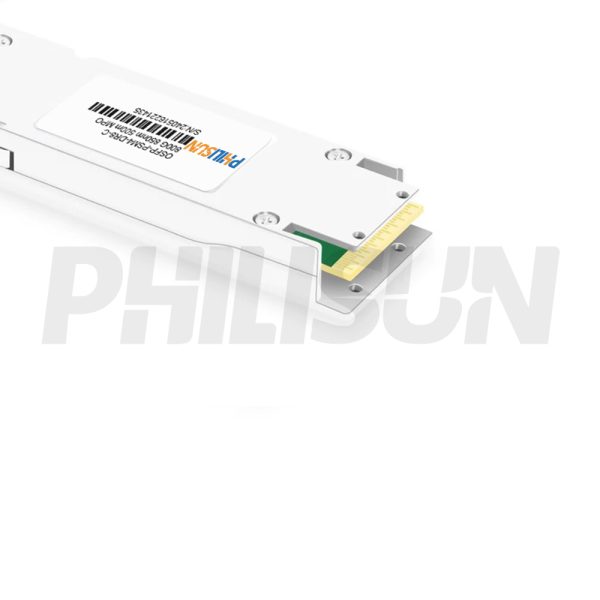

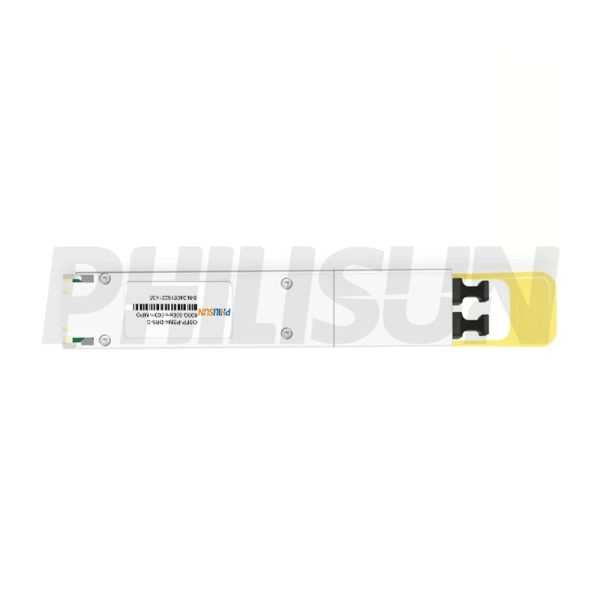

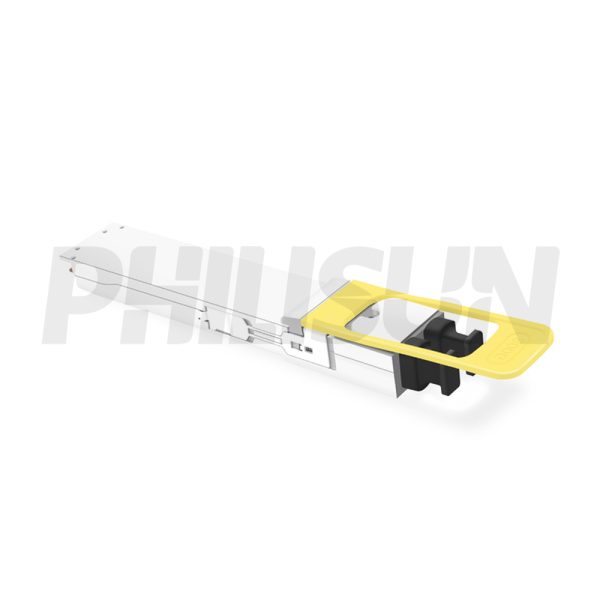

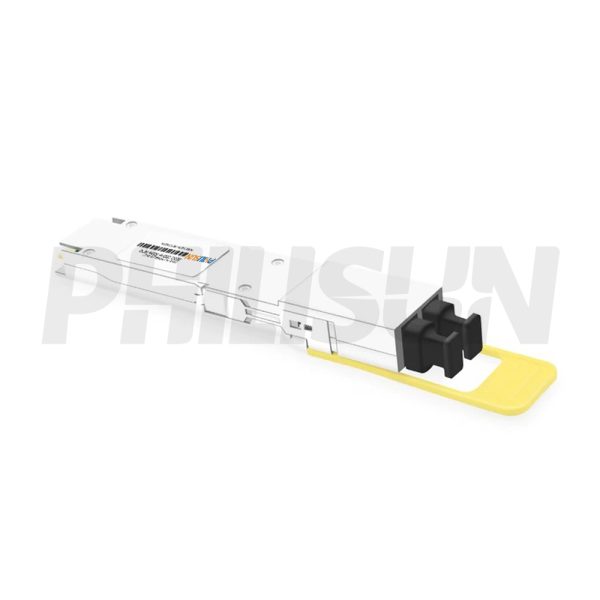

The PHILISUN OSFP 800G PSM4 500m DR8 2MPO8/12 Transceiver is an advanced 8-channel, pluggable fiber-optic module designed for high-speed 800Gbps Ethernet applications. This high-performance transceiver is ideal for data communication and interconnect solutions, supporting data rates of up to 106.25Gbps per lane over single-mode fiber, with transmission distances of up to 500 meters. The optical interface utilizes Dual MPO-12 APC receptacles for efficient connectivity.
Optimized for multi-mode fiber systems, the transceiver operates at a nominal wavelength of 850nm. Its electrical interface features a 60-contact edge-type connector, ensuring robust and reliable performance. Designed for efficiency and high-speed networking, this module is a cutting-edge solution for next-generation data communication requirements.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

400G 850nm 100M sr8 mpo16 transceiver production and testing equipment

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	0	85	%
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.15	3.30	3.45	V
Operating case temperature	Tca	0	–	70	℃
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Data rate per lane	DR	–	106.25	–	Gbps	–
Transmitter
Common mode voltage tolerance	–	15	–	–	mV	–
Input differential impedance	Rin	–	100	–	Ω	–
Differential input voltage swing	Vin	300	–	900	mV	–
Tx fault	VoL	-0.3	–	0.4	V	At 0.7mA
Receiver
Differential output swing	Vout	300	–	900	mV	–
Output differential impedance	Rout	–	100	–	Ω	–
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.

Optical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Center wavelength	λ	1304.5	1310	1317.5	nm	–
Side-mode suppression ratio	SMSR	30	–	–	dB	–
Average optical power	Po	-2.9	–	4	dBm	1
Extinction ratio	ER	3.5	–	–	dBm	–
Outer optical modulation amplitude (OMAouter),each lane	OMA	-0.8	–	4.2	dB	–
Transmitter and dispersion eye closure	TDECQ	–	–	3.4	dB	–
Optical return loss tolerance	ORL	–	–	21.4	dB	–
Receiver
Center wavelength	λ	1304.5	1310	1317.5	nm	–
Average receive power,each lane	–	-5.9	–	4	dBm	–
Receive power(OMAouter),each lane	–	–	–	4.2	dBm	–
Note: [1]Theoptical power is launched into SMF. [2]BER=2.4E-4;PRBS31Q@106.25GBd.
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

OSFP TRANSCEIVER ELECTRICAL PAD LAYOUT

PIN DEFINITION

Pin Definition
Pin	Symbol	Name/Description
1	GND	Ground
2	TX2p	Transmitter data non-inverted
3	TX2n	Transmitter data inverted
4	GND	Ground
5	Tx4p	Transmitter data non-inverted
6	TX4n	Transmitter data inverted
7	GND	Ground
8	TX6p	Transmitter data non-inverted
9	TX6n	Transmitter data inverted
10	GND	Ground
11	TX8p	Transmitter data non-inverted
12	TX8n	Transmitter data inverted
13	GND	Ground
14	SCL	2-wire Serial interface clock
15	VCC	+3.3V Power
16	VCC	+3.3V Power
17	LPWn/PRSn	Low-power mode/module present
18	GND	Ground
19	RX7n	Receiver data inverted
20	RX7p	Receiver data non-inverted
21	GND	Ground
22	RX5n	Receiver data inverted
23	RX5p	Receiver data non-inverted
24	GND	Ground
25	RX3n	Receiver data inverted
26	RX3p	Receiver data non-inverted
27	GND	Ground
28	RX1n	Receiver data inverted
29	RX1p	Receiver data non-inverted
30	GND	Ground
31	GND	Ground
32	RX2p	Receiver data non-inverted
33	RX2n	Receiver data inverted
34	GND	Ground
35	RX4p	Receiver data non-inverted
36	RX4n	Receiver data inverted
37	GND	Ground
38	RX6p	Receiver data non-inverted
39	RX6n	Receiver data inverted
40	GND	Ground
41	RX8p	Receiver data non-inverted
42	RX8n	Receiver data inverted
43	GND	Ground
44	INT/RSTn	Module interrupt/module reset
45	VCC	+3.3V power
46	VCC	+3.3V power
47	SDA	2-wire serial interface data
48	GND	Ground
49	TX7n	Transmitter data inverted
50	TX7p	Transmitter data non-inverted
51	GND	Ground
52	TX5n	Transmitter data inverted
53	TX5p	Transmitter data non-inverted
54	GND	Ground
55	TX3n	Transmitter dataInverted
56	TX3p	Transmitter data non-inverted
57	GND	Ground
58	TX1n	Transmitter data inverted
59	TX1p	Transmitter data non-inverted
60	GND	Ground
