In the modern data center, precision is paramount. Every inch of rack space, every unit of cooling, and every millisecond of latency is optimized. While standard-length patch cords have their place, relying solely on them for high-density environments, especially with MPO cabling, can lead to a tangled mess of “cable spaghetti.” This not only looks unprofessional but also obstructs airflow, complicates troubleshooting, and introduces unnecessary signal degradation from excessive bends.
This guide is designed for network architects, data center managers, and cabling professionals who demand perfection. We’ll demystify the critical specifications for ordering custom length MPO cables, including the often-confused concepts of gender, polarity, and fiber count. By understanding these nuances, you can confidently specify the exact MPO trunk cables and breakout assemblies needed, eliminating clutter, improving performance, and ensuring seamless deployment.
Why Standard Lengths Fail in High-Density Racks
The exponential growth of 40G, 100G, 400G, and even 800G connectivity has made MPO cables indispensable. However, the benefits of high density are quickly lost if cables are not cut to precise lengths:
- Airflow Obstruction: Excess cable clutters the front and rear of racks, impeding critical airflow and leading to overheating.
- Maintenance Nightmare: Tracing a specific cable in a tangled mess is time-consuming and increases the risk of accidental disconnections.
- Signal Integrity Risk: Excessive coiling or sharp bends can induce macrobending loss, degrading the optical signal.
- Unprofessional Appearance: A messy rack simply looks unmanaged.

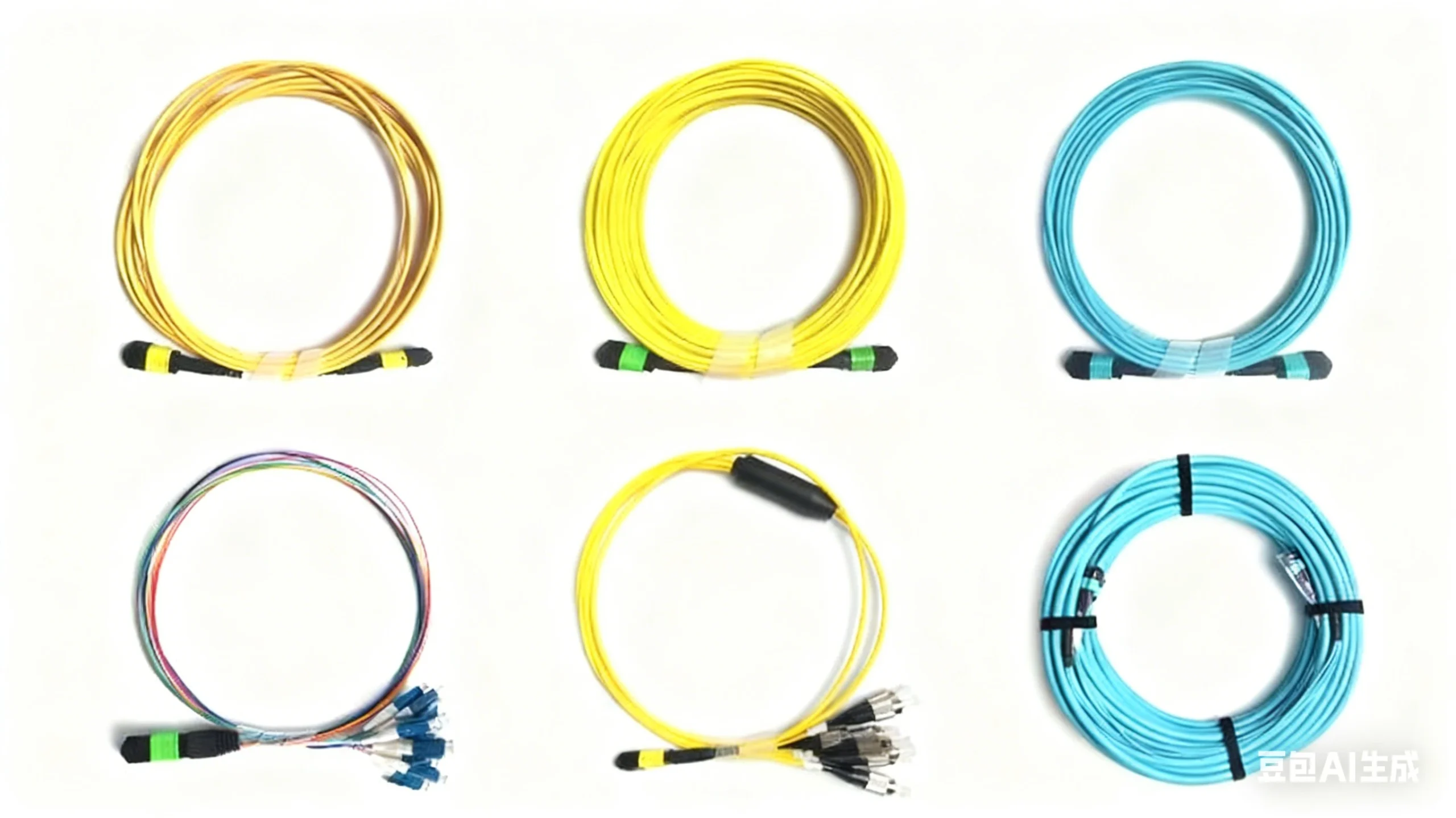

Custom length MPO cables are the solution, ensuring every connection is neat, efficient, and optimized for performance.
The 4 Critical Specs for Custom MPO Orders (Don’t Get It Wrong) – Continued
Ordering a custom MPO cable is more than just specifying a length. The intricate nature of MPO requires careful consideration of several key parameters:
1. Length & Measurement (Precision is Key)
- How to Measure: Always measure the exact distance between the two points where the cable will terminate, including any vertical or horizontal cable management paths. Add a small service loop if desired, but avoid excessive slack.
- Standard Tolerances: Understand that factory-made cables will have a slight tolerance (e.g., +/- 1-2% or a fixed value like +/- 0.1m for very short lengths).
- Metric vs. Imperial: Always specify units clearly (meters or feet).

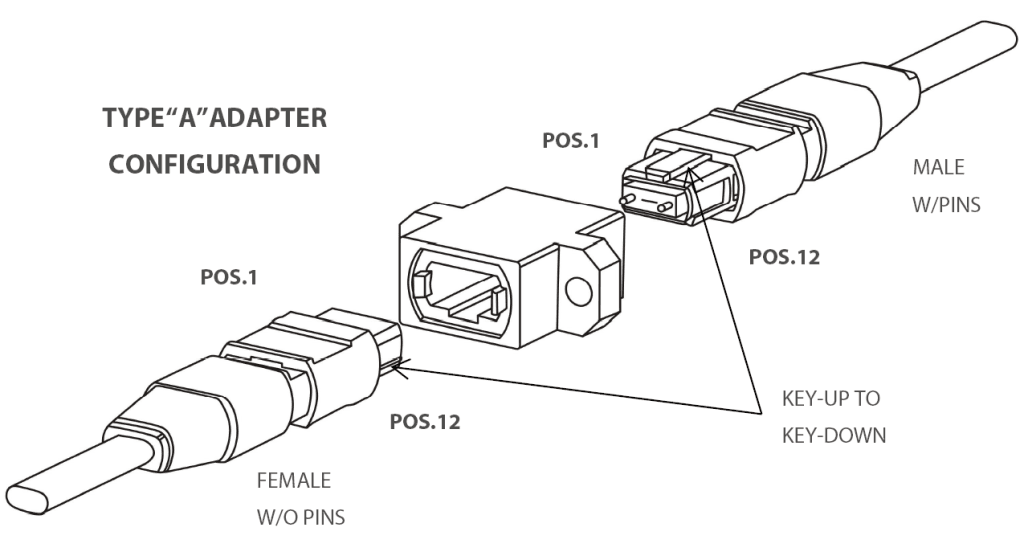

2. Gender: Male (Pinned) vs. Female (Unpinned) (The Pin Problem)
This is the most critical and often misunderstood aspect of MPO. MPO connectors have small metal pins that ensure precise fiber alignment.
- Male Connector: Has two protruding alignment pins.
- Female Connector: Has two alignment holes.
The Golden Rule: MPO connectors are always mated Male-to-Female.
- Transceivers (e.g., QSFP28 SR4): The MPO port on transceivers is always Female (unpinned). Therefore, the MPO cable connecting to a transceiver must be Male (pinned).
- MPO Cassettes/Adapter Panels: These usually have Female MPO ports. Thus, MPO trunk cables connecting to cassettes must be Male (pinned).
- MPO Trunk to MPO Trunk Connection: One end must be Male, the other Female.
PHILISUN Tip: When in doubt, most MPO trunk cables will have Male (pinned) connectors on both ends to mate with Female transceiver ports or Female cassette ports. Adapter panels (used to extend MPO runs) are typically Male on one side and Female on the other.
3. Polarity (Type A, Type B, Type C)
Polarity dictates how the fiber strands are ordered from one end of a cable to the other, ensuring that the transmit (Tx) fiber on one end connects to the receive (Rx) fiber on the other. Incorrect polarity will result in no link! There are three main types, defined by TIA-568.3-D:
- Type A (Straight Through): Fiber 1 on one end connects to Fiber 1 on the other end, Fiber 2 to Fiber 2, and so on. This means the key-up (up position) on one connector mates with the key-down (down position) on the other. It typically requires A-B patch cords at the equipment ends to correct for Tx/Rx flip.
- Type B (Cross-Over/Flipped): Fiber 1 on one end connects to Fiber 12 on the other end, Fiber 2 to Fiber 11, etc. This is a reversed configuration. This is the most common polarity used for directly connecting QSFP/QSFP-DD SR4/DR4/PSM4 optical transceivers because the transceiver’s internal circuitry performs the required Tx/Rx flip. For direct transceiver-to-transceiver connections, Type B is usually required.
- Type C (Paired-Flipped): Fiber 1 to Fiber 2, Fiber 2 to Fiber 1, Fiber 3 to Fiber 4, Fiber 4 to Fiber 3, etc., with pairs flipped. This is common for breakout applications from 2-fiber pairs (e.g., in OM3/OM4 cassettes).
PHILISUN Recommendation: For direct connections between 40G/100G/400G QSFP/QSFP-DD transceivers (e.g., SR4, DR4), Type B (Cross-Over) MPO trunk cables are almost always the correct choice. Always verify the transceiver and switch vendor’s documentation.
4. Fiber Count & Type (Base-8, Base-12, Base-16, Base-24)
- Fiber Count: MPO connectors are built around multiples of 12 fibers, but modern parallel optics often use Base-8 (8 or 16 fibers) or Base-12 (12 or 24 fibers) configurations.
- Base-8: Ideal for 40G-SR4 (uses 8 fibers: 4Tx, 4Rx) and 100G-SR4 (uses 8 fibers: 4Tx, 4Rx). It utilizes all fibers without waste, making it highly efficient.
- Base-12: Historically common, but less efficient for 40G/100G SR4 (as 4 fibers remain unused). It is still used for breaking out to 6x LC duplex pairs.
- Fiber Type:
- Multimode (OM3/OM4/OM5): Aqua or Lime Green jackets, used for short-reach SR4/SR8/SR16 transceivers.
- Single-mode (OS2): Yellow jacket, used for long-reach DR4/PSM4 transceivers.
Jacket Ratings: Meeting Safety and Environment Standards
The outer jacket of your custom MPO cable must comply with local fire safety codes:
- Plenum (CMP): Highest fire rating, for use in plenum air spaces (e.g., above suspended ceilings). Most expensive.
- Riser (CMR): For vertical runs between floors.
- Low Smoke Zero Halogen (LSZH): For areas where smoke and toxic fumes are a concern (e.g., data centers in Europe/Asia). Releases minimal smoke and no halogen when burned.
- Outdoor/Direct Burial: Specialized armored jackets for harsh external environments.
The PHILISUN Customization Process: Precision & Quality
Ordering custom MPO cables from a reputable manufacturer like PHILISUN ensures you get cables that perform optimally and fit perfectly.
- Factory Termination: Our MPO cables are precision-terminated in a controlled factory environment, ensuring superior end-face geometry, minimal insertion loss (IL), and high return loss (RL) compared to field termination.
- Interferometry Testing: Each custom MPO assembly undergoes rigorous 3D interferometry testing to verify end-face quality and MPO Polarity Testing to ensure correct fiber mapping. Detailed test reports (IL, RL, and interferometry) are provided with your order.
- Dedicated Engineering Support: Our team helps you navigate complex specifications, ensuring your custom cables perfectly match your equipment (transceiver type, switch vendor, required polarity).
- Custom Breakout & Hybrid Cables: Need an MPO-to-LC Duplex breakout cable with staggered leg lengths? Or an MPO-to-SC hybrid? We can design and manufacture a solution.
FAQ: Custom Length MPO Cables
- Q: What is the typical lead time for custom MPO cables from PHILISUN?
- A: Lead times vary based on quantity and complexity, but as a direct manufacturer, we offer competitive and often faster turnaround times than distributors. Please submit your specifications for an accurate estimate.
- Q: Should I order Male or Female MPO connectors for my trunk cables?
- A: For most applications, especially connecting to QSFP/QSFP-DD transceivers or MPO cassettes, you will need Male (pinned) MPO connectors on your trunk cables. Always double-check the interface you are connecting to.
- Q: Can I get custom breakout lengths (e.g., some legs longer than others) on an MPO-to-LC fanout cable?
- A: Yes, absolutely. This is a common customization request for cable management in dense racks. You can specify the exact length for each individual breakout leg.
- Q: How do I know if I need Type A, B, or C polarity?
- A: Your transceiver and network design will dictate polarity. For direct connections between QSFP SR4/DR4/PSM4 transceivers, Type B is almost universally required. If you are using MPO cassettes, their internal wiring will determine the trunk polarity needed. Always consult your equipment’s documentation.
- Q: Are custom MPO cables significantly more expensive than standard lengths?
- A: While there might be a small premium for customization, the long-term savings from improved airflow, reduced troubleshooting time, and optimized rack space usually far outweigh any initial difference. For bulk orders, the cost difference per cable can become negligible.
Conclusion: Precision Engineering for Optimal Performance
In the high-stakes environment of data centers, generic cabling is a compromise you cannot afford. Custom length MPO cables, precisely tailored to your network’s unique architecture, are a critical component for achieving peak performance, impeccable cable management, and long-term reliability. By mastering the nuances of MPO gender, polarity, fiber count, and jacket types, you empower your network with the precision it demands.
