Navigating the landscape of 400G optical modules can be challenging. When planning for high-speed Data Center Interconnect (DCI) or Metro network links, the choice between QSFP-DD LR4 vs ZR4 becomes critical. Selecting the wrong module can lead to unexpected costs or performance issues. This guide will demystify their core differences, helping you make an informed decision for your network infrastructure.
Introducing 400G QSFP-DD Ethernet Modules
The QSFP-DD form factor is pivotal for next-generation networks. It doubles the density of QSFP modules. This enables high-bandwidth connectivity in compact spaces. Understanding its role is essential.

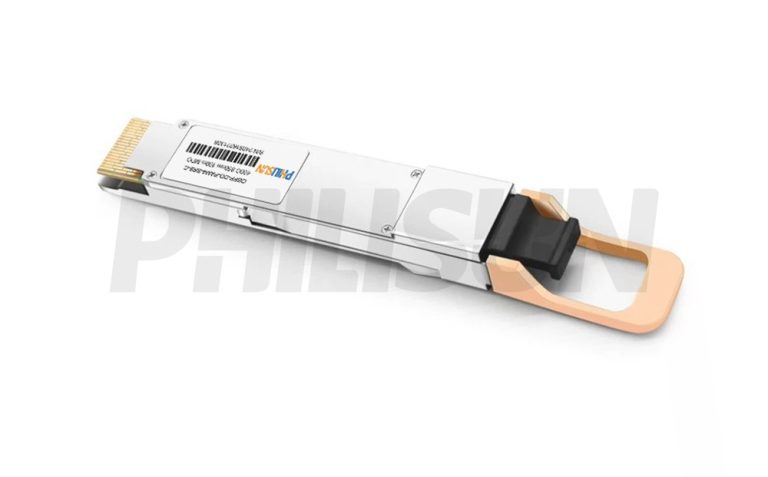

QSFP-DD Form Factor in Modern Networks
QSFP-DD (Quad Small Form-Factor Pluggable Double Density) supports eight lanes of electrical data. This allows for 400Gbps transmission. It maintains backward compatibility with QSFP28 modules. Its high density is key.
Coherent and Non-Coherent Solutions
400G modules can be coherent or non-coherent. Non-coherent modules, like LR4, use direct detection. Coherent modules, like ZR4, use advanced digital signal processing (DSP). This enables longer distances.
Technical Specifications: LR4 vs ZR4
These two module types serve distinct purposes. Their technical specifications highlight their intended applications. Understanding these details is vital.
Transmission Reach and Protocol (400GBASE-LR4)

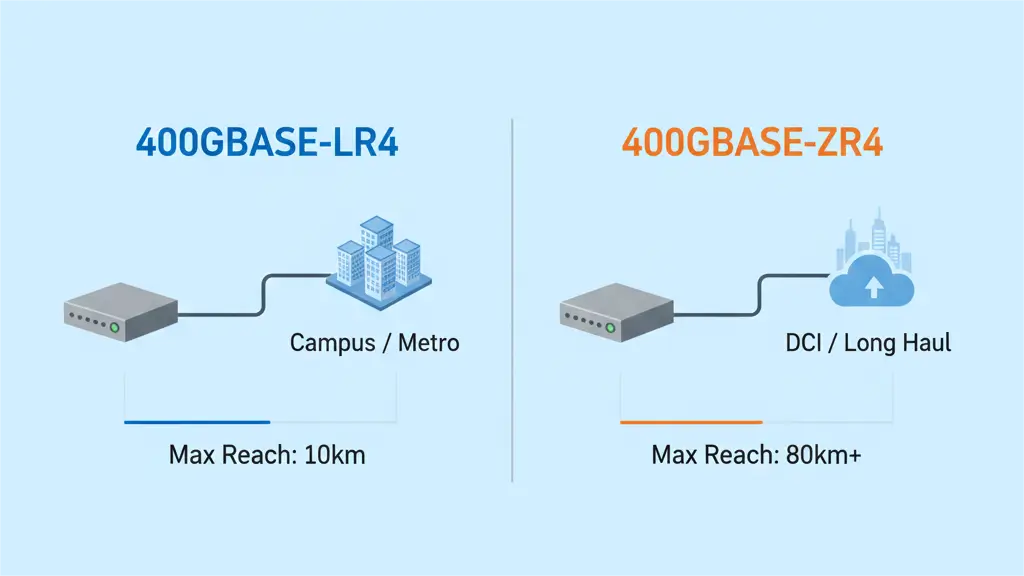

The 400GBASE-LR4 module typically supports distances up to 10 kilometers. It operates over four lanes, each transmitting 100Gbps. It uses standard duplex LC connectors. This makes it ideal for campus or short DCI.
Coherent Technology in ZR4 (400G-ZR)
400G-ZR is a coherent optical module. It is designed for much longer reaches, often up to 80 kilometers or more. It employs complex modulation schemes like 16QAM. This technology drastically extends range.
Power Consumption and Thermal Load
ZR4 modules generally consume more power than LR4 modules. This is due to their integrated DSP chip. Higher power consumption means more heat generation. Proper thermal management is crucial.
Application Scenarios and Deployment
The deployment choice largely depends on the required link distance. Each module is optimized for different network segments. Consider your specific needs carefully.
When to Use LR4 (DCI, <10km)
LR4 is perfect for inter-data center links within a metro area. It suits connections between buildings on a campus. Its cost-effectiveness for shorter distances is a major advantage. It’s a reliable choice.
When ZR4 is Essential (Metro/Long-Haul, >80km)
ZR4 modules shine in Metro Area Networks (MANs). They are also suitable for longer-haul Data Center Interconnect. They reduce the need for expensive dedicated transport equipment. This simplifies network design.
DWDM Integration and Management
ZR4 modules are often designed for DWDM (Dense Wavelength Division Multiplexing). This allows multiple channels over a single fiber pair. LR4 modules typically operate on a dedicated fiber pair. DWDM enhances fiber capacity.
Cost and Operational Differences
Beyond initial purchase price, consider the total cost of ownership. Operational aspects also play a significant role. Make a holistic evaluation.
Comparing Unit Cost (LR4 vs ZR4)
LR4 modules are generally more affordable than ZR4 modules. The advanced coherent DSP in ZR4 adds to its manufacturing cost. This cost difference should be factored into your budget.
Operational Simplicity vs Advanced Features
LR4 offers simpler deployment without complex DSP configuration. ZR4 requires more advanced network planning and potentially sophisticated management. Its benefits come with increased operational complexity.
Importance of Low Loss OS2 Fiber
Both LR4 and ZR4 modules benefit from high-quality, low-loss OS2 single mode fiber. Ensuring minimal attenuation is vital. This optimizes performance and maximizes reach. PHILISUN’s OS2 fiber ensures top-tier performance.
PHILISUN’s Commitment to 400G High-Speed Optics
PHILISUN understands the diverse needs of modern networks. We provide a range of high-performance optical solutions. Our commitment is to quality and reliability.
High-Quality LR4 and ZR4 Module Supply
PHILISUN offers robust QSFP+ LR4 and ZR4 optical transceivers. Our modules meet stringent industry standards. We ensure reliable operation in demanding environments. Trust PHILISUN for your 400G needs.
Ensuring Compatibility with Major Switches
Our QSFP-DD modules are extensively tested for compatibility. They seamlessly integrate with leading networking equipment. PHILISUN ensures plug-and-play functionality. This minimizes deployment headaches.
Conclusion
The choice between QSFP-DD LR4 and ZR4 hinges on your specific distance and application needs. LR4 excels at shorter, cost-effective DCI. ZR4 provides extended reach for Metro and long-haul links. By understanding their unique capabilities and cost implications, you can optimize your network infrastructure.
Explore PHILISUN’s Range of Optical Transceivers Today!
FAQ
Q1: What is the main difference between QSFP-DD LR4 and ZR4?
A1: The primary difference is transmission distance. LR4 modules typically reach up to 10km using direct detection, while ZR4 modules use coherent technology to extend reach up to 80km or more for Metro applications.
Q2: Which module type consumes more power?
A2: QSFP-DD ZR4 modules generally consume more power than LR4 modules. This is due to the integrated digital signal processor (DSP) required for coherent technology, which enables their extended reach.
Q3: Can I use LR4 and ZR4 modules interchangeably?
A3: No, they are not interchangeable. They are designed for different distances and use different technologies (non-coherent vs. coherent). Ensure your network equipment and fiber plant are compatible with the chosen module type.
Q4: Is ZR4 more expensive than LR4?
A4: Yes, ZR4 modules are typically more expensive per unit than LR4 modules. The advanced coherent DSP and more complex optical components in ZR4 contribute to its higher manufacturing cost.
Q5: What kind of fiber is required for these modules?
A5: Both LR4 and ZR4 modules require single mode (OS2) fiber optic cables. Using high-quality, low-loss OS2 fiber is crucial to achieve optimal performance and maximum specified reach.
