If you’ve ever mis-matched an MPO connector in the field, you already know the pain: ports won’t mate, pins get damaged, links fail OTDR testing, and the entire migration stalls. MPO connector gender (male vs female) is one of the most overlooked yet most critical parts of building reliable parallel-optic networks—especially as data centers deploy 100G–800G SR4/SR8, DR4, and DR8 links at scale.
This guide will give you a complete, practical, field-ready understanding of MPO gender, including:
- How MPO male vs female connectors physically differ
- When to use each type
- Why mismatched gender cause permanent connector damage
- The correct gender rules for trunk cables, cassettes, and transceivers
- How PHILISUN ensures polarity + gender consistency across MPO cabling systems
Whether you’re deploying SR4/SR8, upgrading to 800G DR8, or planning new MPO/MTP cabling, this guide eliminates confusion and ensures your links are designed correctly the first time.
Understanding the Critical Role of MPO Connector Gender in Cabling
Purpose of Guide Pins in MPO/MTP Alignment
MPO connectors rely on high-precision mechanical alignment to ensure the optical fibers inside line up with their corresponding cores.
This alignment is provided by:
- Guide pins on MPO male connectors
- Alignment holes on MPO female connectors
The slightest misalignment (even a few microns) can cause:
- High insertion loss
- Increased reflectance
- Crosstalk in parallel applications
- Link failure at higher speeds (e.g., 400G SR4/DR4 or 800G SR8/DR8)
Why Correct Gender Matching Is Essential
To ensure alignment, MPO connections must always follow:
👉 MPO male (pins) → MPO female (no pins)
Never pair two males. Never pair two females.
Incorrect gendering causes:
- Pin-to-pin collision
- Bent pins
- Damaged ferrules
- Permanent loss of connector alignment
- Failure of the entire optical channel
MPO Male Connector: Pin Alignment and Applications
Identifying the MPO Male (Protruding Pins)

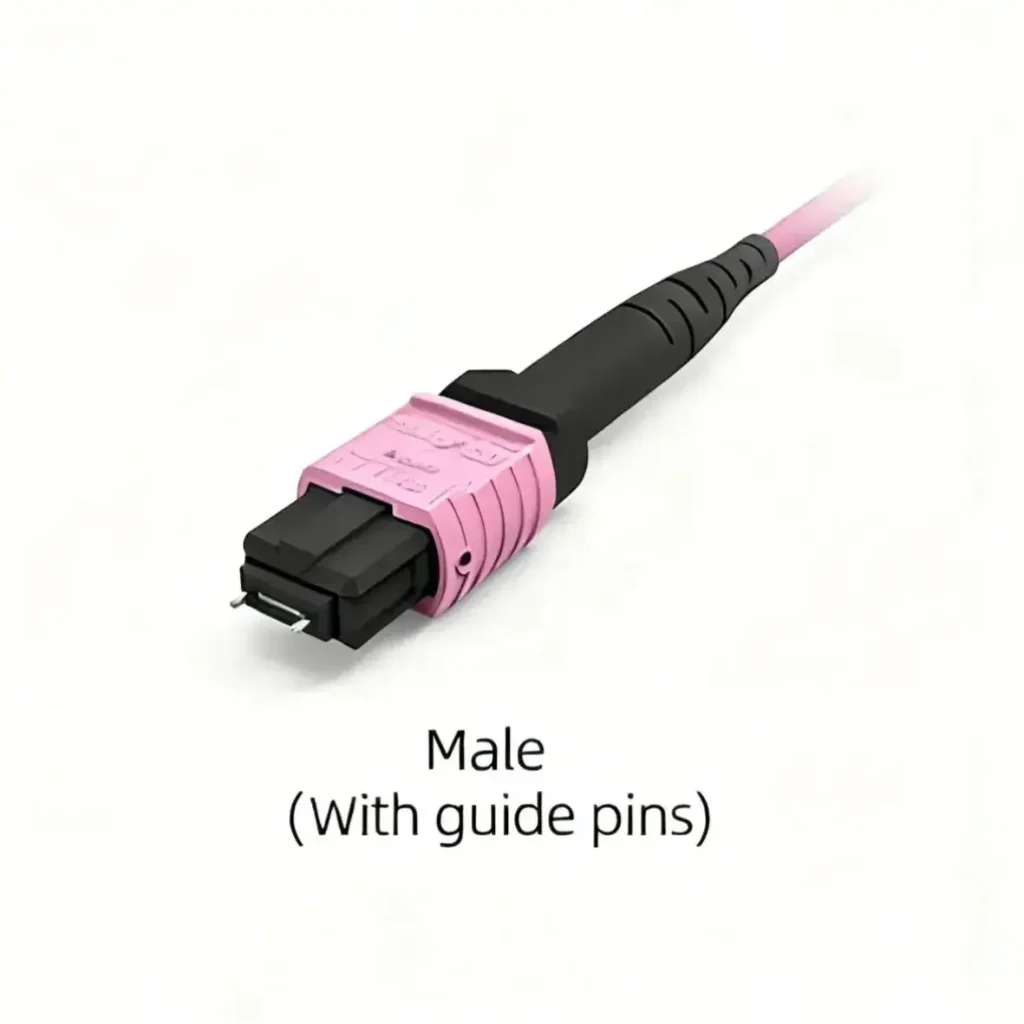

An MPO male connector has two metal guide pins extending from the ferrule.
Field identification tips:
- Look directly at the ferrule → If you see two pins, it’s male
- Male connectors usually appear on trunk cables
- Heavier construction due to pin hardware
MPO Male Applications (Trunk Cables / Cassettes)
MPO male connectors are used in:
- Backbone/trunk MPO cabling
- Structured cabling inside panels
- Modules and cassettes that receive MPO transceivers
Why? Because MPO transceivers are typically female, and cassettes must match gender expectations for system polarity.
MPO Female Connector: The Receptacle and Its Primary Use
Recognizing the MPO Female (Alignment Holes)
An MPO female connector has two alignment holes with no pins.
Because the transceiver port provides the alignment hardware, the jumper must be female on the transceiver side.
Field identification:
- No pins = female
- Common on patch cords and jumper cables
- Required for direct plugging into MPO transceivers
MPO Female Use (Transceivers / Adapters)
MPO female connectors are used for:
- MPO transceivers (SR4/SR8, DR4, DR8)
- Interconnect jumpers
- Device-end patches inside racks
For jumper applications, PHILISUN provides options like:
The Cardinal Rule: Why You Must Never Connect Two MPO Male Connectors
Damage Caused by Pin Collision (Pin vs Pin)
Connecting two male connectors forces the pins to collide head-on, leading to:
- Bent or broken guide pins
- Cracked ferrules
- Abraded fiber endfaces
- Immediate link failure
A damaged male connector cannot be repaired—only replaced.
Signal Loss from Incorrect Gender Pairing
Even if the connector appears to mate, incorrect gender pairing causes:
- High insertion loss (IL)
- Severe return loss (RL)
- Unstable parallel-optic performance
- Failure for high-speed traffic (100G/200G/400G/800G)
Practical Guide to MPO Gender Selection in Data Center Planning
Using Adapter Panels for Gender Swapping
If you need to change MPO gender, use:
- MPO male-to-female adapters
- MPO cassettes are designed for gender conversion
Never modify a connector in the field.
Never try to remove or add pins manually.
PHILISUN’s Gender Standards Guide
PHILISUN ensures:
- Correct gendering throughout the entire MPO chain
- Matching polarity (A, B, or C)
- Low-loss ferrules meeting IEC & Telcordia specs
Explore PHILISUN’s MPO portfolio:
🔗 MPO cabling series (trunk + modules + jumpers)

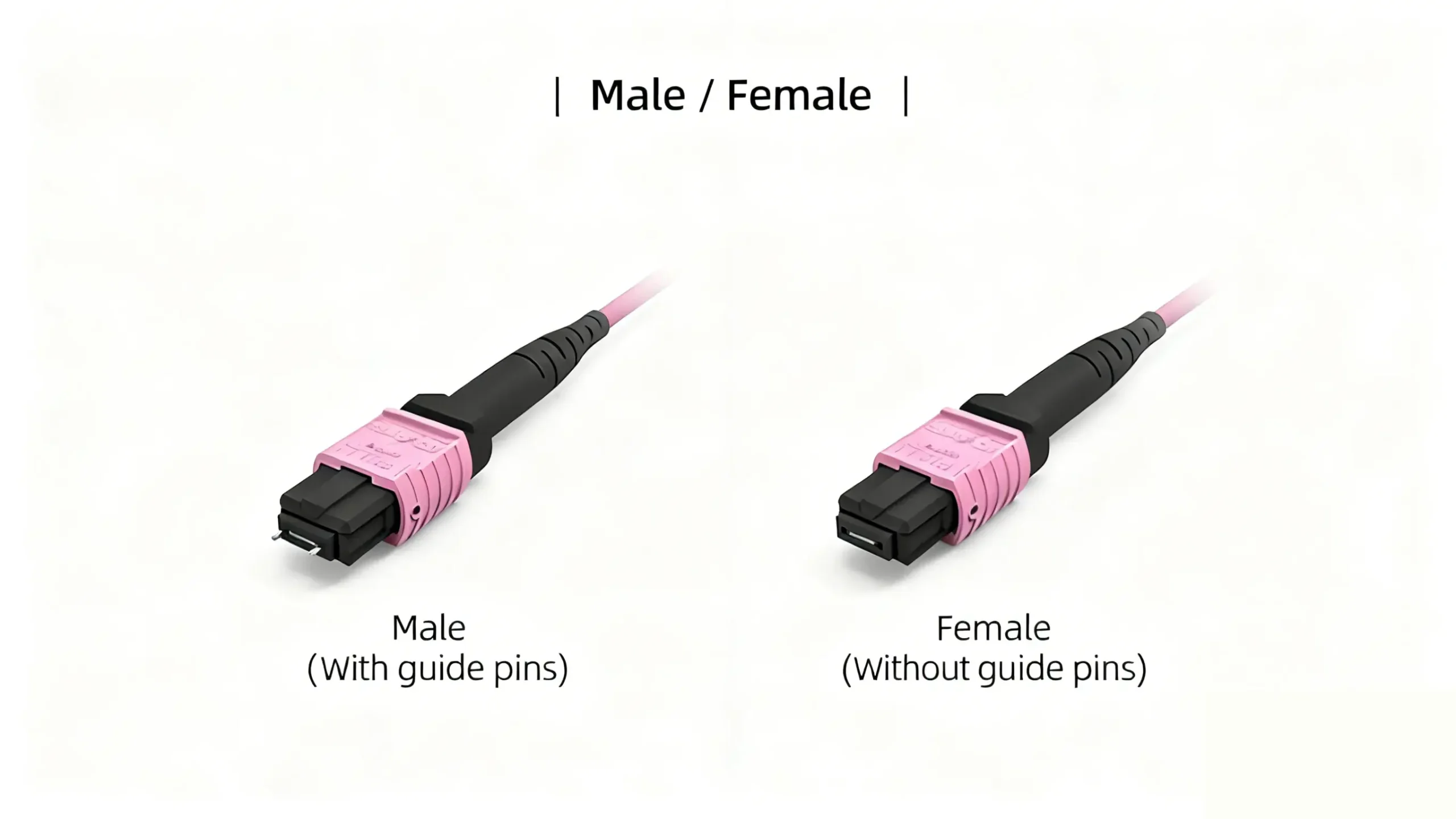

MPO Male vs Female Comparison Table
| Feature | MPO Male | MPO Female |
| Guide pins | ✔ Yes (2 pins) | ✘ None |
| Alignment | Provides alignment | Requires alignment pins |
| Typical use | Trunks, cassettes | Jumpers, transceivers |
| Risk if mis-matched | Pin collision, damage | Won’t mate with female-only ports |
| Used with transceivers | Rarely | Always |
| Field identification | Visible pins | Alignment holes |
PHILISUN’s Reliable MPO Cabling Solutions for Data Center Infrastructure
Ensuring Correct MPO Gender and Polarity
PHILISUN designs systems where:
- MPO male appears only at the correct trunk positions
- MPO female is always used for transceiver patching
- Polarity is pre-engineered (A, B, or C) to avoid cross/wrong fiber mapping
- Loss budgets meet 100G–800G requirements
This ensures flawless deployment with zero field confusion.
High-Quality MPO/MTP Connectors (Durability / Loss)
PHILISUN provides:
- Precision-engineered MPO connectors
- Ultra-low insertion loss (<0.35 dB typical)
- High-durability alignment hardware
- Compatible cables for SR4, SR8, DR4, DR8, and future 1.6T optics
Browse PHILISUN’s portfolio:
Conclusion
Selecting the correct MPO connector gender—male (with pins) or female (with alignment holes)—is not a small detail. It directly determines whether your fiber links perform at peak efficiency or fail due to misalignment, insertion loss, or even physical damage. In modern high-density data centers, AI clusters, and hyperscale networks, the margin for error is nearly zero. Correctly pairing MPO male and female connectors, following polarity rules, and using high-precision components ensures stable, predictable, and scalable optical performance.
FAQ: MPO Connector Gender
1. Can I connect two MPO male connectors together?
No. This will cause a pin collision and irreversible damage.
2. Why are MPO jumpers usually female?
Because MPO transceivers are almost always female, the jumper must be male-free.
3. How do I change MPO gender?
Use an MPO adapter or cassette designed for gender conversion.
4. Does polarity depend on gender?
They are separate concepts, but gender mistakes often cause polarity confusion during deployment.
