When network architects and IT directors ask, “What is QSFP?” they aren’t just looking for a simple definition; they are looking for the future of their infrastructure. They are asking about the power, density, and engineering required to handle the next generation of data traffic.
The Quad Small Form-factor Pluggable (QSFP) module is more than just a transceiver standard; it is the single most important component driving the scalability of modern data centers, allowing for exponential jumps in speed from 40 Gigabit Ethernet (40G) up to 800G.
This article provides an in-depth look at the QSFP evolution, focusing on the engineering and deployment considerations necessary for adopting high-density QSFP-DD and 800G technology.
What is QSFP? The Foundation of High-Speed Networking
The QSFP is an industry standard for compact, hot-pluggable transceivers. Its primary distinguishing feature, the “Quad,” refers to its ability to handle four independent transmit and receive channels (lanes) simultaneously.
Beyond SFP+: The Jump to Parallel Optics

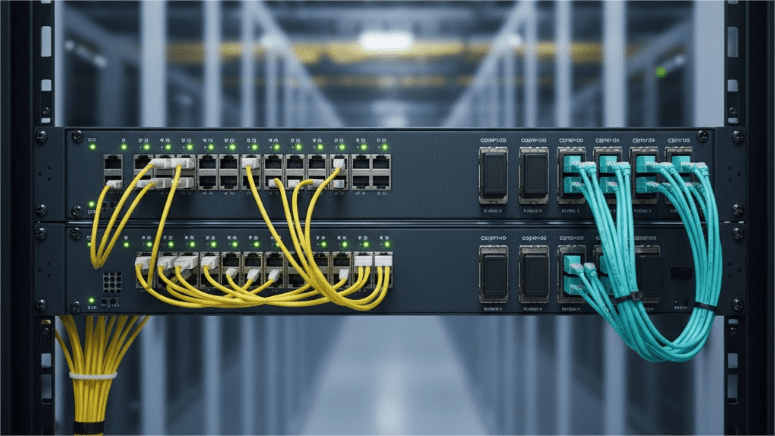

Before QSFP, the Small Form-factor Pluggable (SFP) module dominated. SFP and its successors (SFP+ at 10G, SFP28 at 25G) typically rely on a single transmit channel and a single receive channel.
QSFP broke this mould by bundling four lanes, which could initially support 4x10G for a total of 40G (QSFP+) or 4x25G for 100G (QSFP28). This ability to transmit data in parallel over multiple channels is the core engineering principle that enabled the massive bandwidth explosion in data center spine-and-leaf architectures.
Next Generation: Deciphering the Engineering of QSFP-DD and Beyond
To move from 100G to 400G and 800G, engineers could not simply make the module bigger. The solution required doubling the density while keeping the form factor mostly the same. This led to the creation of the QSFP-DD standard.
Doubling Down: The Engineering of QSFP-DD (Double Density)
The “DD” (Double Density) standard is the current flagship of QSFP evolution. It achieves a four-fold increase over QSFP28 (from 100G to 400G) by two key engineering feats:
- Doubling the Lanes: It increases the number of electrical and optical lanes from four to eight.
- Doubling the Contact Rows: It physically adds a second, smaller row of electrical contacts inside the module interface.
This design allows the module to use 8 lanes, each running at 50G (via PAM4 modulation), totaling 400G. The same concept is applied to 800G QSFP-DD, where 8 lanes run at 100G each. This innovation ensures that high-speed modules maintain backward compatibility with previous QSFP standards while quadrupling bandwidth.
The Thermal and Power Challenge
The primary engineering hurdle for QSFP-DD and 800G is thermal management. Doubling the density of electrical contacts and increasing the signaling rate significantly increases power consumption (and heat generation), which directly impacts a data center’s operational expenditure (OpEx).
When selecting critical components, the quality and reliability of the supplier are paramount. PHILISUN specializes in high-performance optical networking solutions, including advanced 400G/800G transceivers and ultra-low-loss MPO/MTP cabling assemblies. Our mission is to provide the critical components that ensure network architects can deploy reliable, scalable, and energy-efficient data center and carrier networks. We focus on rigorous testing and certified interoperability to support seamless integration across all major platform vendors, offering a trusted choice for your high-speed networking needs.
When selecting a vendor for your high-speed transceivers, it is essential to review the power classes (e.g., 7.0W, 10.0W) and thermal designs, as inefficient modules will immediately translate into higher cooling costs and potential performance throttling in the rack.
Deployment Essentials: Cabling for High-Density QSFP Modules
The jump to QSFP-DD is not just a module upgrade; it requires a fundamental shift in cabling infrastructure and installation practices.
The MPO/MTP Mandate: Cabling for QSFP-DD Modules
High-speed QSFP transceivers, especially those using Parallel Optics (like 400G-SR8), transmit and receive data over multiple fibers simultaneously. This makes high-density, multi-fiber connectors mandatory.
MPO/MTP assemblies are the only efficient way to manage the 8, 12, or 16 fiber counts required by 400G/800G QSFP-DD modules.
- How it works: A single MPO/MTP connector plugs directly into the QSFP module, handling all eight transmit and receive fibers in one click.
- The Installation Advantage: This system allows for pre-terminated trunk cabling, which reduces on-site installation time by eliminating tedious field termination and guarantees factory-tested performance. Network planners rely on vendors like PHILISUN to provide these low-loss, pre-certified MPO/MTP solutions to ensure signal integrity across the entire fiber plant.
The QSFP Breakout Strategy
A common commercial application of QSFP modules is breakout cabling. This strategy maximizes port utilization and is crucial for connecting high-speed switches (400G) to lower-speed servers (100G or 50G).
- How it works: A single 400G QSFP-DD module can be connected to four separate 100G QSFP28 ports using a breakout cable. The cable features a single 400G MPO connector on one end and four 100G connectors (or equivalent) on the other.
- The Installation/Cost Benefit: This configuration allows a single, expensive 400G switch port to service four distinct network devices, dramatically reducing the per-port cost.
Conclusion: The Future is QSFP-DD
The evolution of QSFP from the 40G QSFP+ to the 800G QSFP-DD is a testament to continuous innovation in density and speed. For network professionals, understanding QSFP is no longer about definitions; it’s about mastering the engineering behind parallel optics, thermal management, and structured MPO/MTP deployment.
Choosing the right QSFP transceivers and validated cabling is the key decision that will determine the scalability and total cost of ownership of your next-generation data center.
