You are in your data closet. You look at a patch panel and see two fiber cables. One is thin and yellow. The other is thicker and aqua blue. You know they are both “fiber,” but why are they different? Can you plug the yellow one into the aqua one’s port? (The answer is: absolutely not.)
This is the most fundamental concept in fiber optics: Single Mode vs Multimode. This comprehensive guide will explain the difference, why it matters, and how it dictates all of your hardware choices.

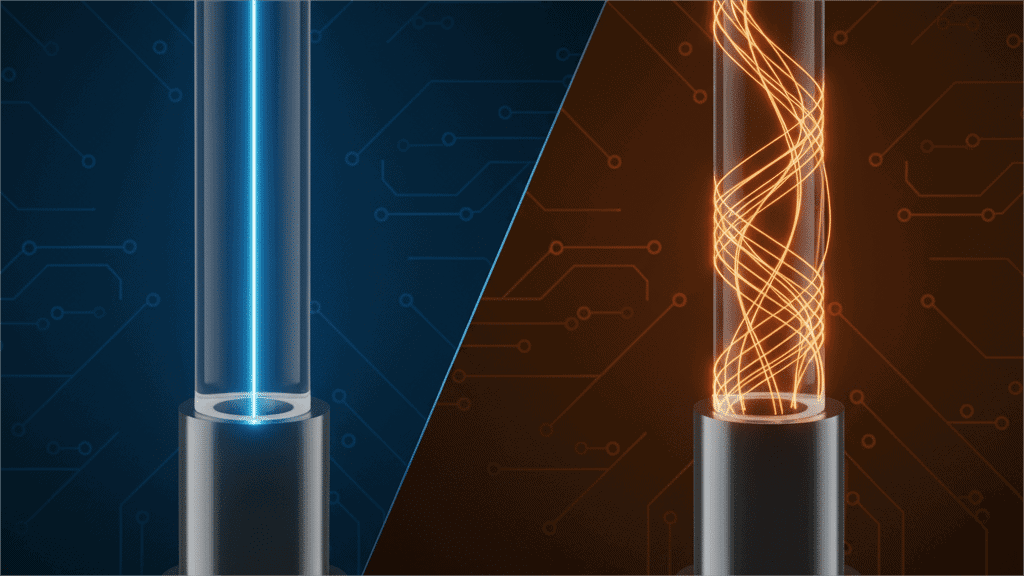

The Core Difference: Yellow Cables vs. Aqua Cables
What is Singlemode Fiber (MMF)?
Let’s start with the aqua (or violet) cable: Multimode Fiber (MMF).
- The Analogy: MMF has a fat core. The core is the part the light travels. It’s 50 or 62.5 micrometers (µm) wide. Think of it as a wide, 5-lane highway.
- The Physics: Because the core is wide, light from a cheap source (like an LED or a VCSEL laser) can travel down multiple paths (or “modes”) at the same time. The light beams bounce off the walls of the core.
- The Problem: Some light beams take a direct path, while others bounce around. They arrive at the other end at slightly different times. This “smearing” of the signal is called modal dispersion.
- The Result: The signal gets messy over long distances. MMF is only reliable for short distances (e.g., 300-500 meters). This makes it perfect for use inside a building or data center.
What is Single Mode Fiber (SMF)?
Now, let’s look at the yellow cable: Single Mode Fiber (SMF).
- The Analogy: SMF has a tiny core. It is only 9 micrometers (µm) wide—smaller than a human blood cell. Think of it as a single-lane, high-speed train tunnel.
- The Physics: The core is so small that it forces light to travel in only one path (a single “mode”). There is no bouncing, and no “smearing.”
- The Light Source: To get light into this tiny core, you need a high-precision, more expensive Laser (like a DFB laser).
- The Result: With no modal dispersion, the signal stays clean and sharp. SMF can send data 10km, 40km, 80km, or even farther. This makes it the king of long-distance links, like connecting two buildings or two cities.
Direct Comparison: Single Mode vs. Multimode Table
Here is the definitive comparison that every network engineer must know.
| Feature | Multimode Fiber (MMF) | Single Mode Fiber (SMF) |
| Core Size | Fat (50µm / 62.5µm) | Tiny (9µm) |
| Light Source | LED / VCSEL (Cheaper) | Laser (More Expensive) |
| Main Problem | Modal Dispersion | (None) |
| Max Distance | Short (e.g., < 500m) | Very Long (e.g., 100km+) |
| Bandwidth | Limited | Virtually Unlimited |
| Jacket Color | Aqua (OM3), Violet (OM4) | Yellow (OS2) |
| Common Use | In-Building, Data Center, LAN | Telecom, WAN, Campus, DCI |
Why Your Fiber Choice Affects All Hardware (Transceivers & Jumpers)
This is the most important part: You cannot mix them. They are 100% incompatible. Your choice of fiber is the first and most important decision, as it dictates all the hardware you must buy.
1. It Dictates Your Optical Transceivers
The “SR” (Short Reach) and “LR” (Long Reach) on a transceiver are not suggestions.
- If you have Multimode (MMF) fiber, you must buy a Multimode Transceiver (like 10GBASE-SR or 100G-SR4). Its VCSEL laser is designed for the fat core.
- If you have Single Mode (SMF) fiber, you must buy a Single Mode Transceiver (like 10GBASE-LR or 100G-LR4). Its laser is designed for the tiny core.
- Plugging an LR (Single Mode) module into an MMF cable will fail. Plugging an SR (Multimode) module into an SMF cable will fail.
View Our Range of Optical Transceivers (SR, LR, and other types)
2. It Dictates Your MPO Jumpers
This is just as critical. High-speed 100G transceivers (like the SR4) use MPO connectors.

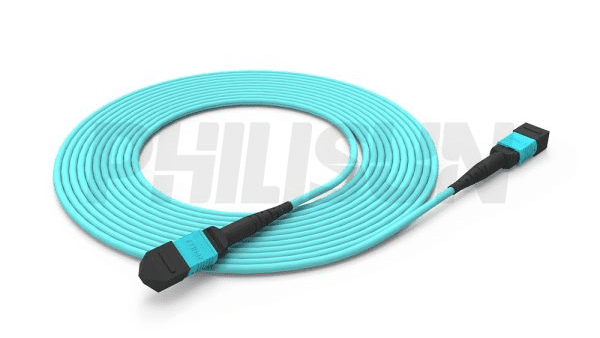

- If your transceiver is a 100G-SR4, it is a Multimode module. You must use a Multimode MPO Jumper (which will be aqua or violet).
- If your transceiver is a 100G-PSM4 (a Single Mode parallel optic), you must use a Single Mode MPO Jumper (which will be yellow).
- Using the wrong MPO jumper—even if the connector fits—will cause the link to fail.
The Real-World Cost Myth: “Isn’t Single Mode More Expensive?”
- The Cable: No. Single Mode fiber cable is actually cheaper to manufacture than Multimode cable.
- The Transceivers: Yes. The high-precision lasers for Single Mode transceivers are more expensive than the simple VCSELs for Multimode.
- The Rule of Thumb: For short links inside a rack or room, Multimode is the cheapest total solution. For new, long-distance “backbone” builds, Single Mode is the only smart, future-proof choice.
Common Questions About Fiber Types (FAQ)
- Q: What is OM1, OM2, OM3, OM4, OM5?
- A: These are generations of Multimode fiber. OM1/OM2 are old, orange cables for 1 G. OM3 (aqua) and OM4 (violet) are optimized for 10G/40G/100G. OM5 (lime green) is for new WDM applications.
- Q: Can I use an adapter to connect SMF to MMF?
- A: No. Never. They are physically and optically incompatible. You will get massive signal loss and a dead link.
Make the right fiber choice for your network’s future.
Conclusion: Your Application Dictates Your Fiber
The choice is simple:
- Multimode (MMF): For short distances (a few hundred meters) inside your building.
- Single Mode (SMF): For long distances (kilometers) between buildings or across a campus.
Your fiber choice is the foundation of your network. It determines every Optical Transceiver and every MPO Jumper you will buy for years to come.
