If your business network relies on dozens or even hundreds of cables, structure and organization become essential. That’s where a patch panel comes in. It’s a simple yet powerful tool that brings order to network cabling, making maintenance faster and system expansion easier. Whether for an office, data center, or industrial setup, patch panels keep networks reliable and professional.
Defining the Patch Panel
A patch panel is a passive hardware unit that consolidates multiple network connections in one location. Typically rack-mounted, it features ports on the front for easy access and termination points at the back for permanent cabling.
By linking wall outlets or devices to network switches through short patch cords, patch panels provide structure, clarity, and flexibility—key benefits for any network administrator.
Why Patch Panels Matter
Patch panels simplify cable management by grouping all connections neatly. They make it easy to reconfigure or add devices without disturbing the building’s fixed cabling.
They also protect active network equipment, such as switches, from constant plugging and unplugging, helping extend the hardware’s life span and reducing downtime during upgrades or troubleshooting.
When a Patch Panel Becomes an Asset
Once your network includes more than a few devices or rooms, cable management can quickly turn chaotic. A patch panel eliminates that disarray.
For growing companies or facilities expecting frequent changes, patch panels deliver flexibility, scalability, and a professional cabling structure that supports long-term stability.
The Working Principle Behind Patch Panels
Patch panels don’t transmit data; instead, they act as a bridge between permanent cabling and active network components.
- Rear side: where the building’s cables terminate.
- Front side: where patch cords connect to switches or routers.
This setup lets technicians reconfigure connections or swap equipment without disturbing the main wiring backbone.
Signal Performance and Patch Panels
Because patch panels are passive, they don’t weaken signals when properly installed. Issues like signal loss typically stem from poor terminations, low-quality cables, or excessive lengths—not the panel itself.
High-quality materials and correct installation guarantee full signal integrity.
Cable Standards and Compatibility
Patch panels are available for different cabling categories, such as Cat5e, Cat6, or fiber optic. The key difference is the data rate and bandwidth supported. For example, Cat6 can deliver higher speeds at shorter distances.
Most modern patch panels support multiple cable types, but overall performance depends on the lowest-rated component in the system.
Following Cabling Standards for Reliable Connections
Ethernet patch panels follow either the T568A or T568B wiring standards. While both work effectively, maintaining consistency across your entire network is critical. Mixing standards can cause interference or cross-pairing errors.
Patch Panel vs. Switch: What’s the Difference?
A patch panel and a switch serve very different roles in a network. A switch is an active device — it routes or forwards packets, manages network traffic, and requires power. In contrast, a patch panel is passive: it simply arranges cabling and provides clear access points for connectivity.
When visualizing the analogy, if the switch is the engine driving network traffic, the patch panel is the staging area of cables aligned and organized for efficient distribution.
Active vs. Passive Devices
Switches actively process and route network data, while patch panels do not. Patch panels simply centralize the termination of cables and present them for flexible connectivity. Because patch panels are relatively inexpensive and simple, they offer a low-cost way to manage cables without interfering with network operations.
Role Clarification
Patch panels don’t switch or route traffic — that job is left to switches, routers, and gateways. Their value is in structuring the physical layout of your cabling system for clarity, organization, and easier maintenance.
The Role of Keystone Modules
Keystone modules enhance patch panels by supporting multiple connector types—RJ45, RJ11, or fiber adapters—in a single frame. This modularity allows for mixed cabling systems and seamless technology upgrades.
The Upsides and Downsides of Patch Panels
Benefits
- Streamlined cable management
- Simplified maintenance and expansion
- Reduced wear on network ports
- Clear labeling and traceability
Considerations
- Requires rack space and thoughtful layout
- Needs careful installation for best results
Once installed, patch panels offer years of dependable performance with minimal upkeep.
Cost and Long-Term Value
Patch panels are affordable, but the main investment lies in precise installation—labeling, terminating, and organizing cables correctly. That effort pays off through easier troubleshooting and scalability in the future.
Space Planning and Signal Integrity
Poor installation can cause issues such as bent cables or signal interference. Always plan sufficient rack space for both front and rear access and avoid overcrowding cables. Keeping patch panels near switches ensures cleaner layouts and better airflow.
PHILISUN’s Example of Efficient Design

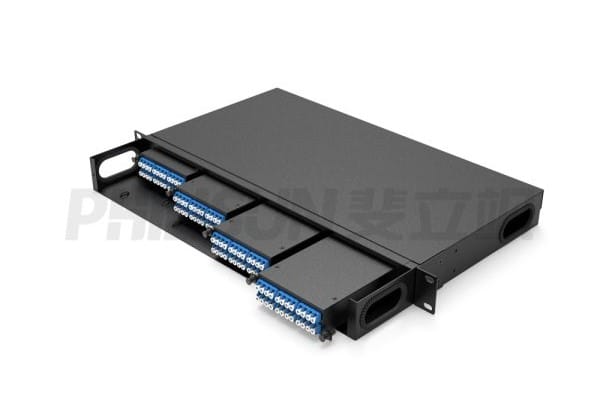

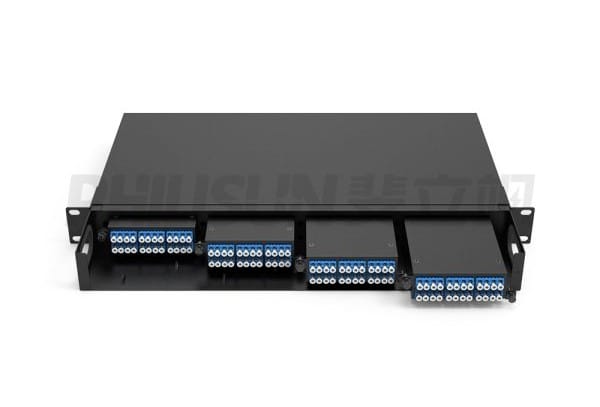

PHILISUN’s 1U Fixed Type 4-Cassette 96-Core Patch Panel represents the next generation of structured cabling management.
- Four modular cassettes support up to 96 fibers
- Tool-free design simplifies maintenance
- Compact 1U height saves rack space
- Ideal for commercial and data-center installations
This model demonstrates how PHILISUN integrates precision engineering with efficient layout design to enhance modern fiber-optic systems.
Conclusion
A patch panel may not route data, but it ensures that data flows efficiently by keeping cabling organized and accessible. For networks of any scale, it’s an investment in reliability, flexibility, and professionalism.
With products like PHILISUN‘s MPO patch panel, businesses can achieve cleaner cable management and simplified network maintenance—setting the foundation for long-term stability.
