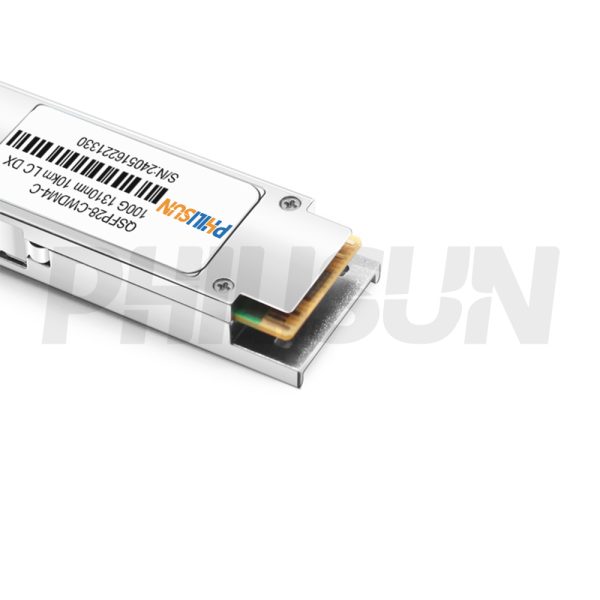

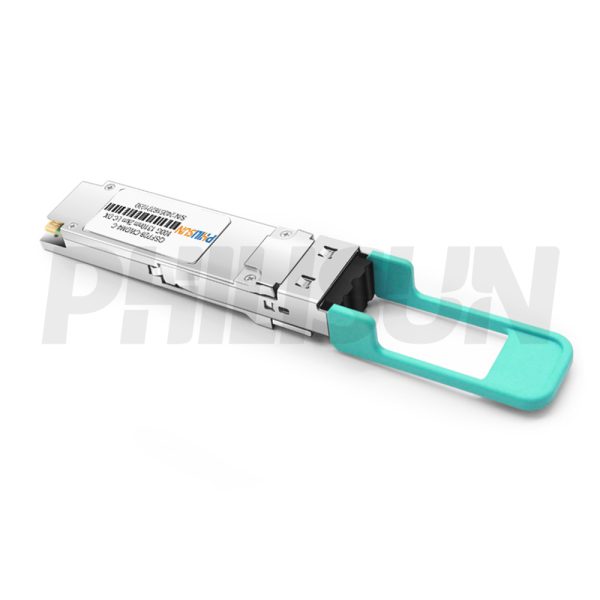

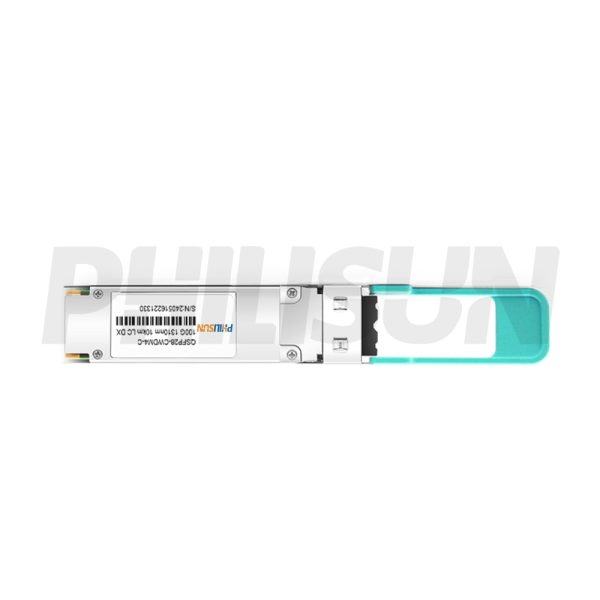

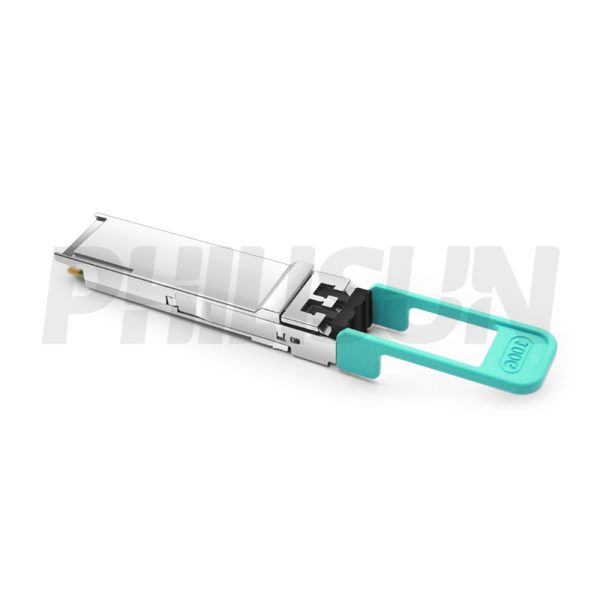

100G CWDM4 QSFP28 10km DOM Duplex LC SMF Optical Transceiver Module

100G CWDM4 QSFP28 optical transceiver with duplex LC, DOM and up to 10 km reach over single-mode fiber.

Category: Brand: Related collections:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelQSFP28-103-CW4-10-LCDManufacturer brandPHILISUN

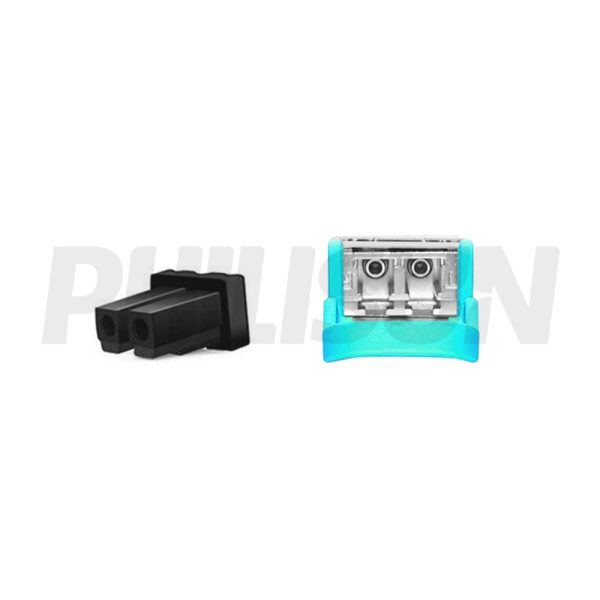

Package TypeQSFP28Optical connectorLC DX
Max Data Rate100GbpsChannel Data Rate25.78125Gbps
Effective transmission distance10km
Wavelength1310nmOperating voltage3.3V
Fiber TypeSMFCore Size9/125
Transmitter TypeDFBReceiver TypeIDP
TX Power-6.5~2.5dBmReceiver Sensitivity-8.6dBm
Digital Optical Monitoring(DOM)YESReceiver Overload2.5dBm
Power Consumption<3.5WProtocols100G CWDM4 applications with FEC
retimed CAUl-4 per 100G Ethernet lEEE 802.3bm Annex 83E
Operating temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN QSFP28 100G CWDM4 10km LC DX Transceiver is a high-performance, 4x25G module designed to optimize reach, bandwidth, density, and cost for high port-count 100G systems and client-side 100G interfaces. Compliant with the 100G 4WDM-10 MSA, based on CWDM4 MSA version 1.1, this transceiver ensures seamless interoperability with other CWDM4 transceivers over distances of up to 10km.

When to choose the 10 km CWDM4 module

This 10 km variant is intended for CWDM4 links that exceed the 2 km class. It uses a duplex LC interface and single-mode fiber. Before deployment, verify host FEC, connector loss and the link-budget limits in the performance tables below.



TRANSCEIVER SERIES PRODUCTS
103G 850nm 100M sr4 MPO 8 12 transceiver series products



PRODUCTION & TESTING EQUIPMENT
103G 850nm 100M sr4 MPO 8 12 transceiver production and testing equipment



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Power supply voltage VCC -0.5 +3.6 V
Operating case temperature TC -40 +85 ℃
Relative humidity RH 5 85 %
These values represent the damage threshold of the module.Stress in excessof any of the individual  absolute maximum ratings can cause immediate catastrophic damage tothe module even if all other parameters are within recommended operating conditions.



Recommended Operating Environment
Parameter Symbol Min Typical Max Unit
Power supply voltage VCC 3.15 3.30 3.45 V
Operating case temperature Tca 0 – 70 ℃



Electrical Characteristics
Parameter Symbol Min Typical Max Unit Ref
Transmitter
Input differential impedance Rin – 100 – Ω 1
Single-ended input voltage
tolerance		 – -0.3 – 4.0 V –
AC common mode input voltage
tolerance		 – 15 – – mV –
Differential input voltage – 50 – – mV –
Differential input voltage swing,
perlane		 Vin 190 – 1000 mV –
Receiver
Output differential impedance Rout – 100 – Ω 1
Differential output swing,perlane Vout 300 – 900 mV 2
AC common mode output voltage tolerance – – – 7.5 mV –
Single-ended output voltage – -0.3 – 4.0 V –
Notes:
[1]AC coupled.
[2]Into 100 ohm differentialter mination.



Transmitter Specifications-Optical
Parameter Symbol Min Typical Max Unit –
Center wavelength Ch0 λ0 1264.5 1271 1277.5 nm –
Ch1 λ1 1284.5 1291 1297.5 nm –
Ch2 λ2 1304.5 1311 1317.5 nm –
Ch3 λ3 1324.5 1331 1337.5 nm –
Bit rate per channel DR 25.78125±100p Gbps 1
Side mode suppression ratio SMSR 30 – – dB –
Average launch power each lane – -6.5 – 2.5 dBm 7
Optical modulation amplitude(each lane) OMA -4.0 2.5 dBm –
Transmit OMA per lane @TDP max – -2.0 – –
dBm
 2
l launch power in OMA minus TDP,each ane OMA-TDP -5.0 – – dBm –
Transmission&dispersion penalty, each lane TDP – – 3.0 dB 3
Transmitter reflectance – – – -12 dB –
Extinction ratio ER 3.5 – – dB –
Transmitter eyemask definition{X1,X2,X3,Y1,Y2,Y3} {0.31,0.4,0.45,0.34,0.38,0.4}
CWDM4 MSA technical specifications rev 1.1
Total average launch power Po – – 8.5 dBm –
Average launch power of OFF transmitter,each lane Poff – – -30 dBm –
Optical return loss tolerance ORL – – 20 dB –



Receiver Specifications-Optical
Parameter Symbol Min. Typical Max. Unit –
Center wavelength Ch0 λ0 1264.5 1271 1277.5 nm –
Ch1 λ1 1284.5 1291 1297.5 nm –
Ch2 λ2 1304.5 1311 1317.5 nm –
Ch3 λ3 1324.5 1331 1337.5 nm –
BitRate per channel DR 25.78125±100ppm Gbps 4
Unstressed sensitivity(OMA) OMAin – – -11.5 dBm 5
Receiver overload PMAX 2.5 – – – –
Stressed sensitivity(OMA) OMAin,str – – -8.6 dBm 6
Optical return loss ORL – – -26 dB –
Vertical eye closure penalty,each lane VECP – – 1.9 dB –
Stressed eye J2 jitter,each lane J2 – – 0.3 UI –
Stressed eye J9 jitter,each lane J9 – – 0.5 UI –
Stressed eye J4 jitter,each lane J4 – – 0.48 UI –
SRS eye mask definition{X1,X2,X3,Y1, Y2,Y3} {0.39,0.5,0.5,0.39,0.39,0.4}
CWDM4 MSA Technical Specifications Rev 1.1		 –
Damage threshold,eachlane – 3.5 – – dB –
Notes:
[1]Transmitter consists of 4lasersoperating at25.78Gb/s each.
[2]At maximum TDP.
[3]TDP value does not include MPI penalty.
[4]Receiver consists of4 photodetectors operating at 25.78Gb/s each.
[5]Sensitivity is specified at 5×10-5 BER.
[6]Measured with CWDM4 MSA2 conformance test signal at TP3 for 5×10-5BER.
[7]Power value and power accuracy are with allchannels on.



General Specifications
Parameter Symbol Min. Typical Max. Unit Ref.
Bit rate(all wavelengths combined) BR – – 103.1 Gb/s –
BitError ratio @25.78Gb/s BER – – 5×10-⁵ – 1
Maximum supported distances
Fiber type – – – – – –
SMF per G.652 LossBdgt – – 5 dB 2
Notes:
[1]Tested witha 231-1  PRBS.
[2]This5dB loss budget includes2.5dB optical coding gain from FEC on the host [RS-FEC(528,514)per Clause 91].The option to bypass RS-FEC is not supported.Loss budget may include up to 1dB MPI loss penalty with worse case Transmitter and worst case connector MPI.



QSFP28 TRANSCEIVER ELECTRICAL PAD LAYOUT
QSFP-Transceiver Electrical Pad Layout



PIN DEFINITION
Pin Definition
Pin Symbol Name/Description
1 GND Ground
2 Tx2n Transmitter inverted data input
3 Tx2p Transmitter non-inverted data input
4 GND Ground
5 Tx4n Transmitter inverted data input
6 Tx4p Transmitter non-inverted data input
7 GND Ground
8 ModSelL Module select
9 ResetL Module reset
10 VCCRx +3.3V power supply receiver
11 SCL 2-wire serial interface clock
12 SDA 2-wire serial interface data
13 GND Ground
14 Rx3p Receiver non-inverted data output
15 Rx3n Receiver inverted data output
16 GND Ground
17 Rxlp Receiver non-inverted data output
18 Rx1n Receiver inverted data output
19 GND Ground
20 GND Ground
21 Rx2n Receiver inverted data output
22 Rx2p Receiver non-inverted data output
23 GND Ground
24 Rx4n Receiver inverted data output
25 Rx4p Receiver non-inverted data output
26 GND Ground
27 ModPrsL Module present
28 IntL Interrupt
29 VCCTx +3.3V power supply transmitter
30 VCC1 +3.3V power supply
31 LPMode Low power mode
32 GND Ground
33 Tx3p Transmitter non-inverted data input
34 Tx3n Transmitter inverted data input
35 GND Ground
36 Txlp Transmitter non-inverted data input
37 Tx1n Transmitter inverted data input
38 GND Ground
