100G CWDM4 QSFP28 10km LC Transceiver

SPECIFICATIONS
Product Model	QSFP28-103-LW-80(ZR4)-LCD	Manufacturer brand	PHILISUN
Package Type	QSFP28	Optical connector	LC DX
Max Data Rate	111.81Gbps	Channel Data Rate	25.78125Gbps
Effective transmission distance	80km
Wavelength	1310nm	Operating voltage	3.3V
Fiber Type	SMF	Core Size	9/125
Transmitter Type	LAN WDM EML	Receiver Type	PlN
TX Power	2.0~6dBm	Receiver Sensitivity	-28dBm
Digital Optical Monitoring(DOM)	YES	Receiver Overload	4.5dBm
Power Consumption	<6.5W	Protocols	100GBASE-ZR4 Ethernet Links
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

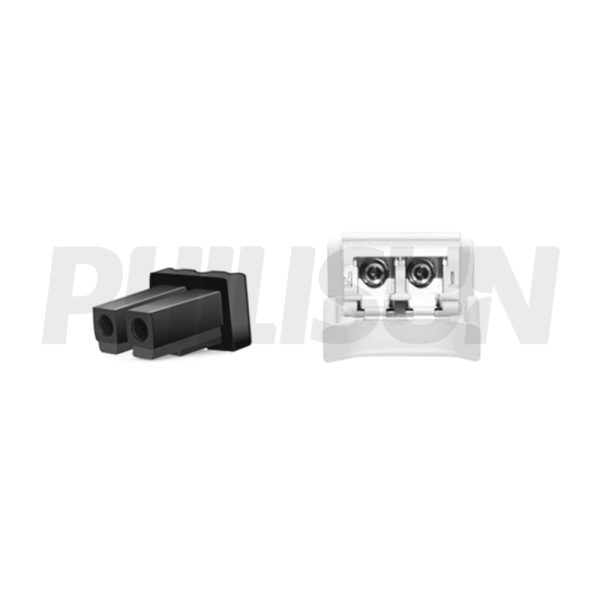

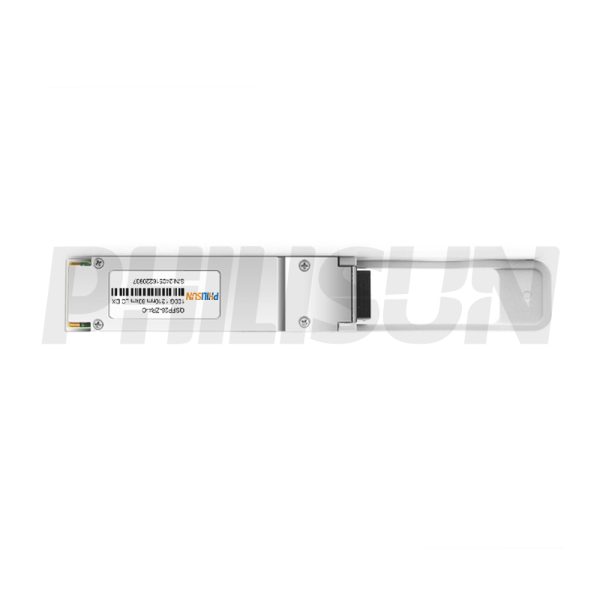

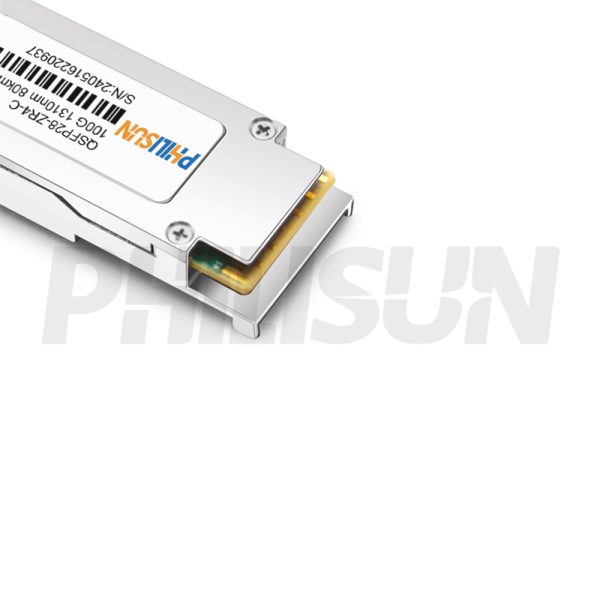

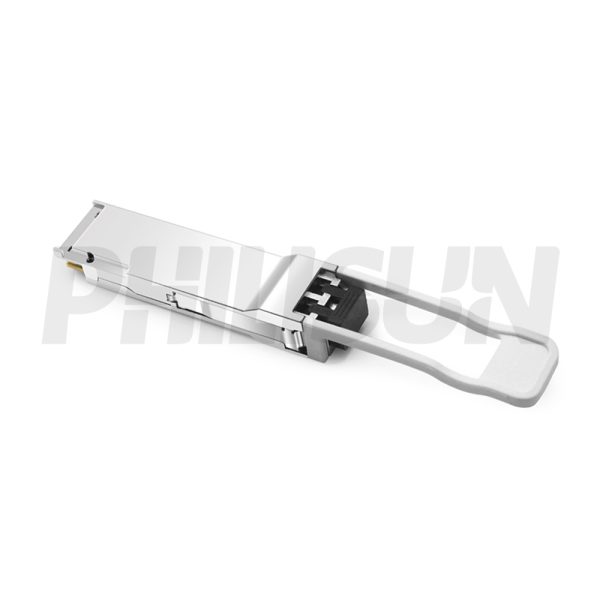

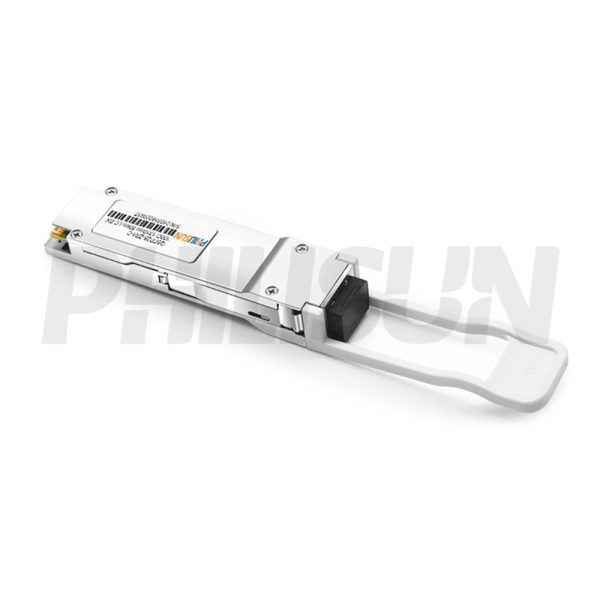

The PHILISUN QSFP28 100G LAN-WDM 80km ZR4 LC DX Transceiver is a high-performance module designed for 80km optical communication applications. It integrates a 4-lane optical transmitter, a 4-lane optical receiver, and a module management block with a 2-wire serial interface. The optical signals are multiplexed onto a single-mode fiber via an industry-standard LC connector.Built in compliance with the QSFP+ Multi-Source Agreement (MSA), the transceiver features a compact form factor, robust optical/electrical connections, and a digital diagnostic interface. It is engineered to withstand harsh external conditions, including extreme temperatures, high humidity, and EMI interference, ensuring reliable performance in demanding environments.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

103G 850nm 100M sr4 MPO 8 12 transceiver production and testing equipment

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	5	85	%
These values represent the damage threshold of the module.Stress in excessof any of the individual absolute maximum ratings can cause immediate catastrophic damage tothe module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.15	3.3	3.45	V
Operating case temperature	Tca	0	–	70	℃
Link distance	D	–	–	80	km

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter
Input differential impedance	Rin	90	100	110	Ω	1
Differential input voltage amplitude	Vin	–	–	900	mVp-p	2
Receiver
Output differential impedance	Rout	90	100	110	Ω	1
Differential output voltage amplitude	Vout	300	–	900	mVp-p	3
Notes: [1]AC coupled. [2]Differential input voltage amplitude is measured between TxnP and TxnN. [3]Differentialoutput voltage amplitude is measured between RxnP and RxnN.

Transmitter Specifications-Optical
Parameter		Symbol	Min	Typical	Max	Unit
Center wavelength	Ch0	λ0	1294.53	1295.56	1296.59	nm
	Ch1	λ1	1299.02	1300.05	1301.09	nm
	Ch2	λ2	1303.54	1304.58	1305.63	nm
	Ch3	λ3	1308.09	1309.14	1310.09	nm
Bit Rate per channel		B	25.78125±100ppm			Gbps
Side mode suppression ratio		SMSR	30	–	–	dB
Average launch power,each lane		–	2	–	6	dBm
Launch power in OMA minus TDP,each lane		OMA-TDP	-0.7	–	–	dBm
Transmission & dispersion penalty, each lane		TDP	–	–	2.5	dB
Relative intensity noise		RIN	–	–	-130	dB/Hz
Transmitter reflectance		–	–	–	-20.0	dB
Extinction ratio		ER	6	–	–	dB
Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3}		{0.25,0.4,0.45,0.25,0.28,0.4}
Average launch power of OFF transmitter,each lane		–	–	–	-30	dBm
Optical return loss tolerance		–	–	–	20	dB

Receiver Specifications-Optical
Parameter		Symbol	Min.	Typical	Max.	Unit
Center wavelength	Ch0	λ0	1294.53	1295.56	1296.59	nm
	Ch1	λ1	1299.02	1300.05	1301.09	nm
	Ch2	λ2	1303.54	1304.58	1305.63	nm
	Ch3	λ3	1308.09	1309.14	1310.09	nm
Bit rateper channel		B	25.78125±100ppm			Gbps
Damage threshold,each lane		–	6.5	–	–	dBm
Average receive power,each lane		–	-28.0	–	-7	dbm
Unstressed sensitivity (OMA) at 5×10-5 BER		OMAin	–	–	-28	dBm
LOS assert		LOSA	-40	–	–	dBm
LOS de-assert		LOSD	–	–	-29	dBm

QSFP28 TRANSCEIVER ELECTRICAL PAD LAYOUT

PIN DEFINITION

Pin Definition
Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCC rx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCCTx	+3.3V power supply transmitter
30	VCC1	+3.3V power supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted data input
37	Tx1n	Transmitter inverted data input
38	GND	Ground
