200G QSFP56 10km DOM Duplex LC SMF Optical Transceiver Module

SPECIFICATIONS
Product Model	QSFP56-200(4x50)-CW4-10(LR4)-LCD	Manufacturer brand	PHILISUN
Package Type	QSFP56	Optical connector	LC DX
Max Data Rate	200Gbps	Channel Data Rate	26.5625Gbps
Effective transmission distance	10km
Wavelength	1310nm	Operating voltage	3.3V
Fiber Type	SMF	Core Size	9/125
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-3.4~5.3dBm	Receiver Sensitivity	-7.7dBm
Digital Optical Monitoring(DOM)	YES	Receiver Overload	5.3dBm
Power Consumption	<8W	Protocols	5G backhaul Switch&Router Connections Data Centers 200GE 10Km SMF links
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

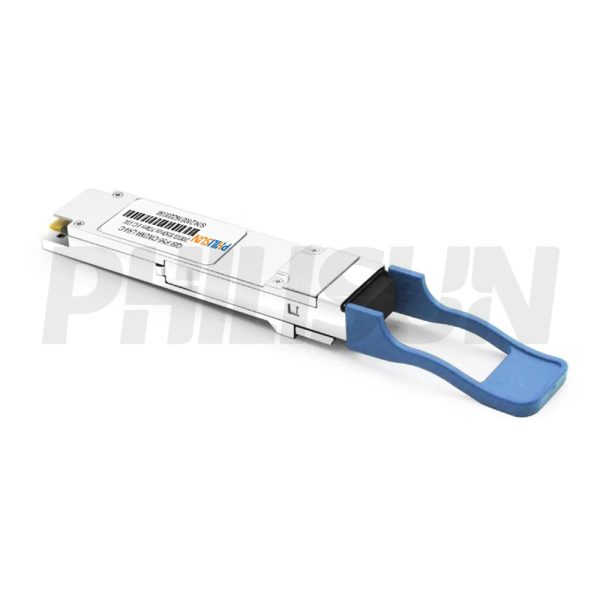

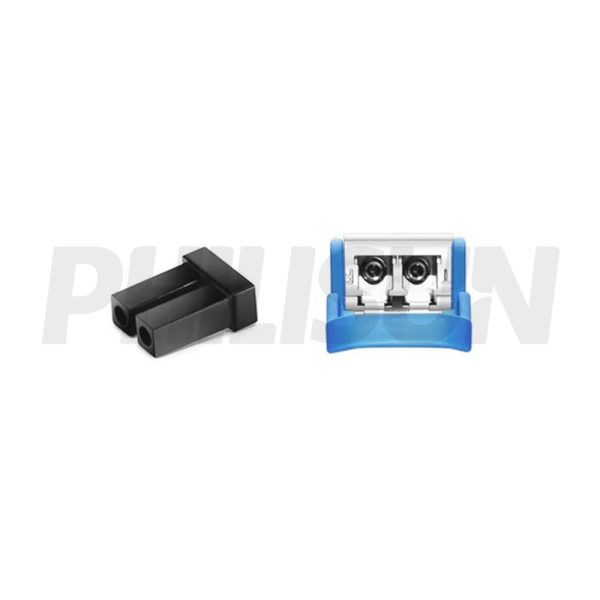

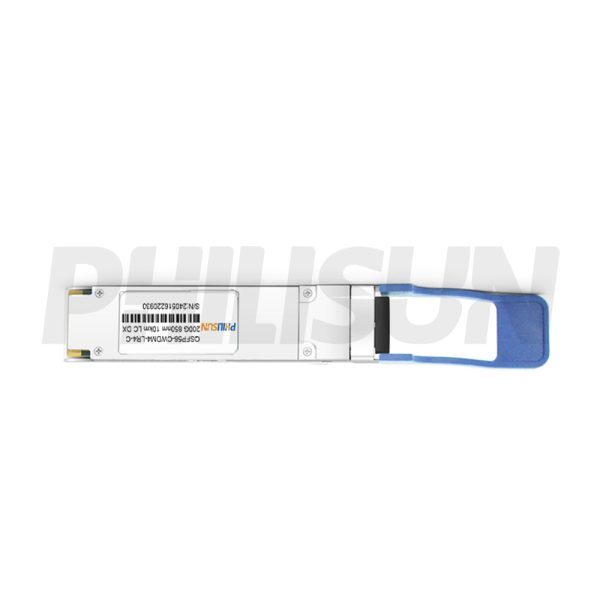

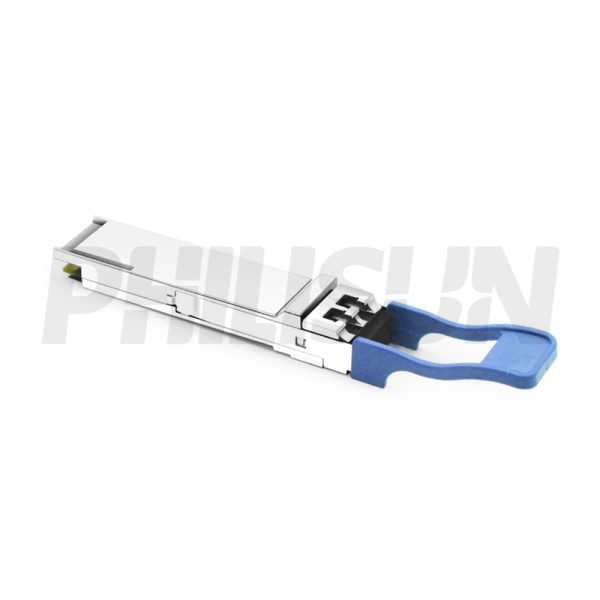

The PHILISUN QSFP56 200G (4x50G) CWDM4 10km LR4 LC DX Transceiver is a high-performance, hot-pluggable optical module designed for 200GE links over single-mode fiber (SMF) at distances of up to 10km. It combines four 26.5625 GBd PAM4 electrical lanes into four corresponding optical channels, fully compliant with IEEE 200GBASE-LR4 standards. This transceiver delivers superior performance and reliability with an advanced design that incorporates cooled EA-DFB lasers at LAN-WDM 1.3μm wavelengths and four PIN photodetectors with low-power TIAs. The optical signals are multiplexed and demultiplexed onto a single fiber pair through an LC duplex connector, ensuring efficient and reliable data transmission.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

103G 850nm 100M sr4 MPO 8 12 transceiver production and testing equipment

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	5	85	%
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.135	3.30	3.465	V
Operating case temperature	Tca	0	–	70	℃
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Signaling rate per lane	–	-100ppm	26.5625	+100ppm	Gbd	–
Transmitter
Differential input impedance	Zin	90	100	110	ohm	–
Differential input voltage amplitude	△Vin	–	–	900	mVp-p	–
Receiver
Differential output impedance	Zout	90	100	110	ohm	–
Differential output voltage amplitude	△Vout	900	–	–	mVp-p	AtTPla
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Optical Characteristics
Parameter		Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Center wavelength	Ch0	λo	1294.53	–	1296.59	nm	–
	Ch1	λ1	1299.02	–	1301.09
	Ch2	λ2	1303.54	–	1305.63
	Ch3	λ3	1308.09	–	1310.19
Side-mode suppression ratio		SMSR	30	–	–	dB	–
Average optical power,each lane		Po	-3.4	–	5.3	dBm	–
Outer optical modulation amplitude(each ane)		OMAout	-0.4	–	5.1	dBm	–
Launch power in OMAouter minus TDECQ		Ptdecq	-1.8	–	–	dBm	–
Extinction ratio		ER	3.5	–	–	dBm	–
Transmitter and dispersion eye closurefor PAM4 per lane		TDECQ	–	–	3.4	dB	–
Average launch power of off transmitter(each lane)		Poff	–	–	-30	dBm	–
Optical return Loss tolerance		ORL	–	–	15.1	dB	–
Receiver
Center wavelength	Ch0	λo	1294.53	–	1296.59	nm	–
	Ch1	λ1	1299.02	–	1301.09
	Ch2	λ2	1303.54	–	1305.63
	Ch3	λ3	1308.09	–	1310.19
Damage threshold		DT	6.3	–	–	dBm	–
Average receive power ,each lane		–	-9.7	–	5.3	dBm	–
Receiver reflectance		Rfl	–	–	-26	dB	–
Receiver power(OMAouter),each lane		OMAout	–	–	5.1	dBm	–
Stressed receiver sensitivity(OMAouter), each lane		Sens	–	–	-5.2	dBm	–
Receiver sensitivity(OMAouter), each lane		Sen	–	–	-7.7	dBm	1
The following optical characteristics are defined over the recommended operating environment unless otherwise specified. Note: [1]Measured with conformancetest signal at TP3 for the BER specified in IEEE802.3bs

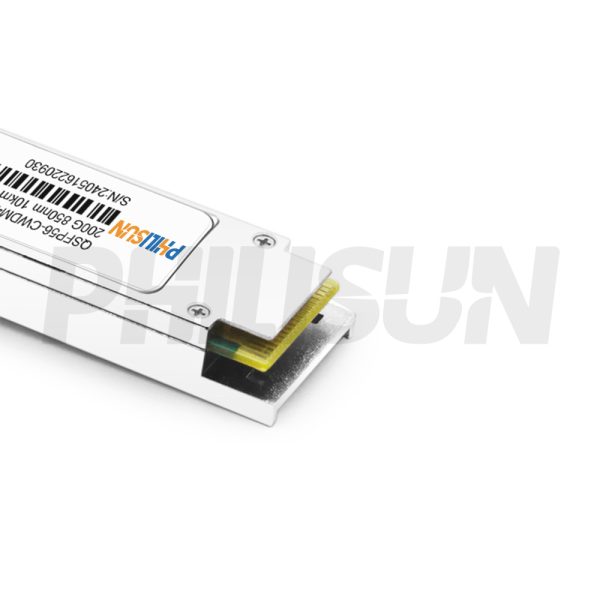

QSFP56 TRANSCEIVER ELECTRICAL PAD LAYOUT

PIN DEFINITION

Pin Definition
Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCCTx	+3.3V power supply transmitter
30	VCC1	+3.3V power Supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted dataInput
37	Tx1n	Transmitter inverted data input
38	GND	Ground
