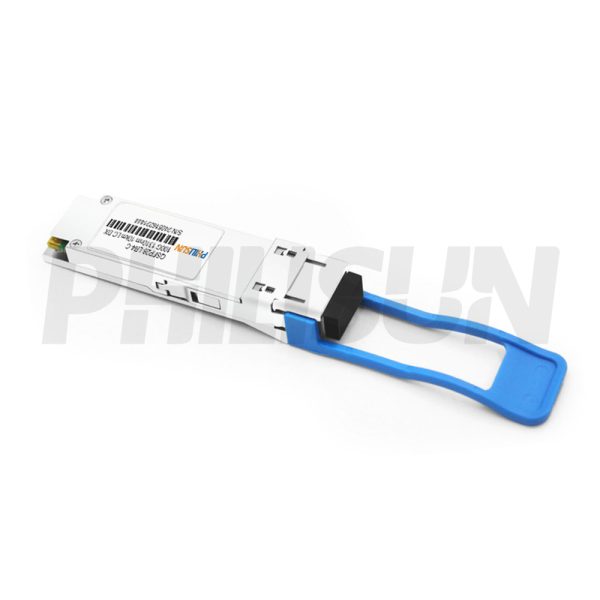

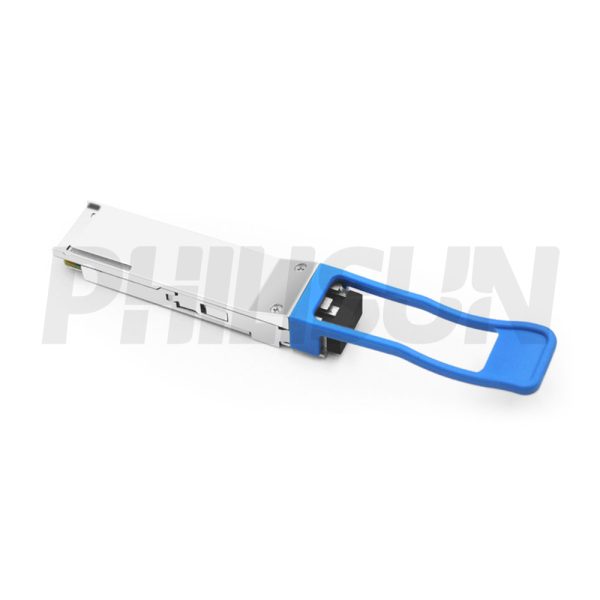

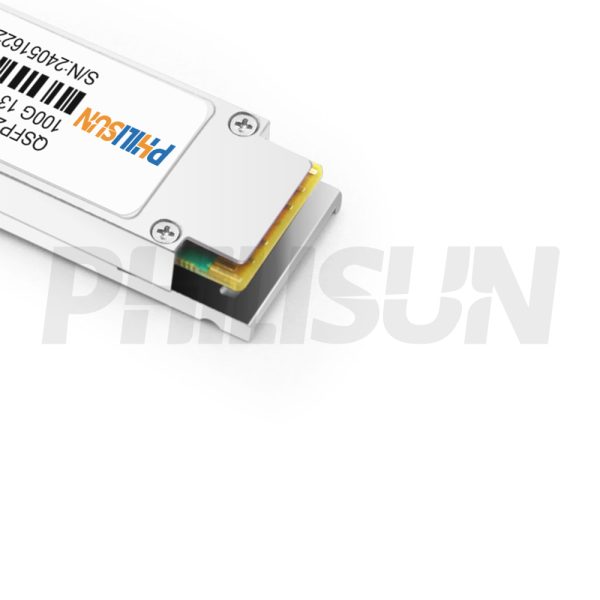

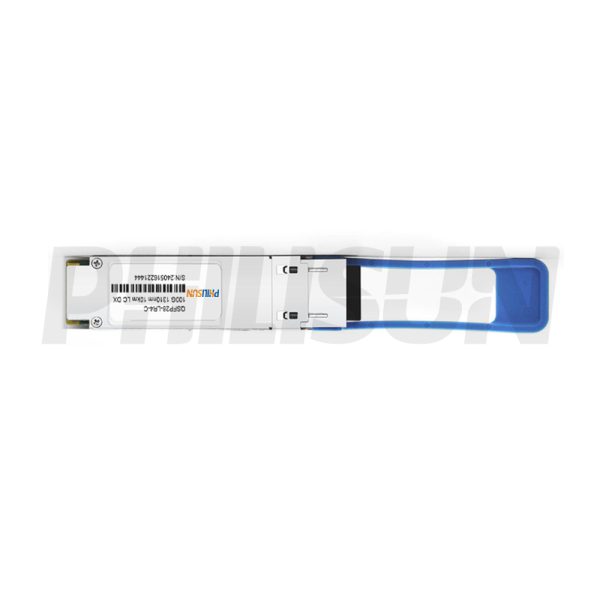

100G CWDM4 QSFP28 10km LC Transceiver

SPECIFICATIONS
Product Model	QSFP28-103-LW-10(LR4)-LCD	Manufacturer brand	PHILISUN

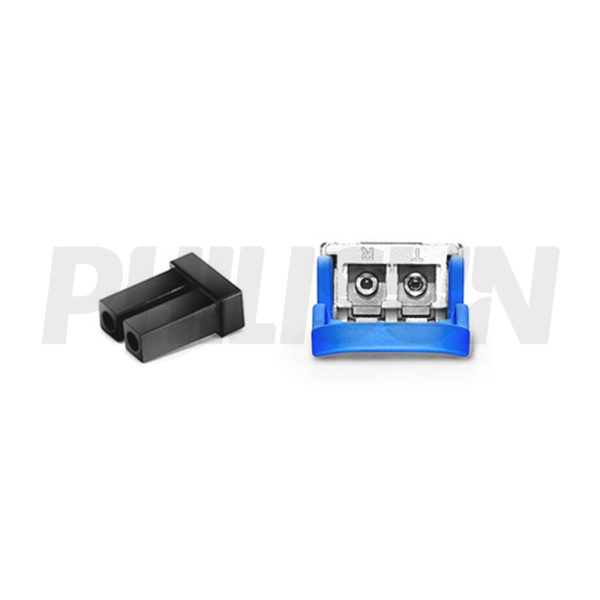

Package Type	QSFP28	Optical connector	LC DX
Max Data Rate	100Gbps	Channel Data Rate	25.78125Gbps
Effective transmission distance	10km
Wavelength	1310nm	Operating voltage	3.3V
Fiber Type	SMF	Core Size	9/125
Transmitter Type	DFB	Receiver Type	DIN
TX Power	-4.3~4.5dBm	Receiver Sensitivity	-8.6dBm
Digital Optical Monitoring(DOM)	YES	Receiver Overload	4.5dBm
Power Consumption	<4W	Protocols	100GBASE-LR4 100G Ethernet
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

The PHILISUN QSFP28 100G LAN-WDM 10km LR4 LC DX Transceiver is a high-performance optical module designed for 100GBASE-LR4 applications, compliant with the IEEE P802.3ba standard. This module converts four channels of 25Gb/s electrical data into four LAN-WDM optical signals, multiplexing them into a single channel for 100Gb/s optical transmission. On the receiver side, it de-multiplexes a 100Gb/s optical input into four LAN-WDM channels and converts them back into four electrical output channels.The central wavelengths of the four LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm, aligned with the LAN-WDM wavelength grid defined in IEEE 802.3ba. Equipped with high-performance cooled LAN-WDM DFB transmitters and high-sensitivity PIN receivers, the transceiver ensures reliable performance for 100Gigabit Ethernet applications over links up to 10km, meeting the IEEE 802.3ba Clause 88 100GBASE-LR4 optical interface requirements.Designed according to the QSFP+ Multi-Source Agreement (MSA), this transceiver features a compact form factor, optical/electrical connections, and a digital diagnostic interface. It is built to withstand harsh external operating conditions, including extreme temperatures, high humidity, and EMI interference, ensuring robust and reliable performance in demanding environments.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

103G 850nm 100M sr4 MPO 8 12 transceiver production and testing equipment

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	5	85	%
These values represent the damage threshold of the module.Stress in excess of any of theindividual absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.15	3.30	3.45	V
Operating case temperature	Tca	0	–	70	℃

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter Section:
Input differential impedance	Rin	–	100	–	Ω	1
Single-ended input voltage tolerance	–	-0.3	–	4.0	V	–
AC common mode input voltage tolerance	–	15	–	–	mV	–
Differential input voltage	–	50	–	–	mV	–
Differential input voltage swing, perlane	Vin	190	–	1000	mV	–
Receiver
Output differential impedance	Rout	–	100	–	Ω	1
Differential output swing,perlane	Vout	300	–	900	mV	2
AC common mode output voltage tolerance	–	–	–	7.5	mV	–
Single-ended output voltage	–	-0.3	–	4.0	V	–
Notes: [1]AC coupled. [2]Into 100 ohm differentialter mination.

Transmitter Specifications-Optical
Parameter	Symbol	Min	Typical	Max	Unit	Ref.
Bit rate per lane	DR	25.78125±100ppm			Gb/s	1
Data rate variation	–	-100	–	100	ppm	–
Lane_0 center wavelength	λ0	1294.53	1295.56	1296.59	nm	–
Lane_1 center wavelength	λ1	1299.02	1300.05	1301.09	nm	–
Lane_2 center wavelength	λ2	1303.54	1304.58	1305.63	nm	–
Lane_3 center wavelength	λ3	1308.09	1309.14	1310.19	nm	–
Total average output power	Po	–	–	10.5	dBm	–
Average launch power each lane	–	-4.3	–	4.5	dBm	2,7
Optical modulation amplitude (OMA)each lane	OMA	-1.3	–	4.5	dBm	–
Difference in launch power between any two lanes(OMA)	–	–	–	5	dB	–
Launch power in OMA minus TDP, each lane	OMA-TDP	-2.3	–	–	dBm	–
Transmitter and dispersion penalty(TDP),each lane	TDP	–	–	2.2	dB	–
Extinction ratio	ER	4	–	–	dB	–
Side-mode suppression ratio	SMSR	30	–	–	dB	–
Average launch power of OFF transmitter per lane	Poff	–	–	-30	dBm	–
Transmitter reflectance	–	–	–	-12	dB	–
Optical return loss tolerance	ORL	–	–	20	dB	–
Transmitter eye mask definition{X1,X2,X3,Y1,Y2,Y3}	{0.25,0.4,0.45,0.25,0.28,0.4}					3

Receiver Specifications-Optical
Parameter	Symbol	Min.	Typical	Max.	Unit	Ref.
Bit rate per channel	DR	25.78125±100ppm			Gb/s	4
Data rRate variation	–	-100	–	100	ppm	–
Lane_0 center wavelength	λ0	1294.53	1295.56	1296.59	nm	–
Lane_1 center wavelength	λ1	1299.02	1300.05	1301.09	nm	–
Lane_2 center wavelength	入2	1303.54	1304.58	1305.63	nm	–
Lane_3 center wavelength	λ3	1308.09	1309.14	1310.19	nm	–
Average receive power per lane	RXPOW	-10.6	–	4.5	dBm	5,7
Receive power(OMA)per lane	–	–	–	4.5	dBm	–
Receive sensitivity in OMA per lane	Rsen	–	–	-8.6	dBm	–
Stressed receiver sensitivity(OMA) per lane	RXSRS	–	–	-6.8	dBm	6
Optical return loss	ORL	–	–	-26	dB	–
LOS assert	Lsa	-25	–	–	dBm	–
LOS DE-assert	Lda	–	–	-12	dBm	–
LOS hysteresis	Lh	0.5	–	–	dB	–
Notes: [1]Transmitter consists of 4lasers operating at 25.78Gb/s each. [2]Minimum value is informative. [3]Hit ratio 5×10-5. [4]Receiver consists of4 photodetectors operatingat 25.78Gb/s each. [5]Minimum valueis informative,equals min TxOMA with infinite ERand max channel insertion loss. [6]SRS ismeasured with verticaleye closure penalty of 1.8 dB max,J2of 0.30 UI,and J9 of 0.47 UI. [7]Power valueand power accuracy are with all channels on.

General Specifications
Parameter	Symbol	Min.	Typical	Max.	Unit	Ref.
Bit rate(all wavelengths combined)	BR	–	–	103.1	Gb/s	1
Bit error ratio @25.78Gb/s	BER	–	–	10-12	–	2
Maximum supported distances
Fiber type	–	–	–	–	–	–
SMF per G.652	Lmax	–	–	10	km	–
Notes: [1]Supports 100GBASE-LR4 per IEEE 802.3ba. [2]Tested with a 231-1 PRBS.

QSFP28 TRANSCEIVER ELECTRICAL PAD LAYOUT

PIN DEFINITION

Pin Definition
Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCCTx	+3.3V power supply transmitter
30	VCC1	+3.3V power supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted data input
37	Tx1n	Transmitter inverted data input
38	GND	Ground
