MPO 1U Rack Mount Fiber Patch Panel with 6 Metal Cassettes(12pcs of 12 Fibers MPO to LC Fiber Patch Cord), 144 Fibers, Fixed Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	144 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Fixed	Overall Dimensions	1U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	6 Metal cassettes
Breakout Length	0.3m	Patch Cord Type	12pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 2 Patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	235mm	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This extreme-density 1U Fixed MPO Patch Panel is engineered to manage an astonishing 12 MPO-12 inputs within a single rack unit, delivering 144 active LC ports via six metal cassettes. This specialized configuration securely supports 72 dual-fiber channels or 144 single-fiber bidirectional channels, optimizing every cubic inch of rack space. The combination of the fixed chassis and high-quality metal cassettes provides a highly stable, tamper-resistant, and scalable platform for the most consolidated fiber links.

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

1U Fixed 6*Metal Cassettes

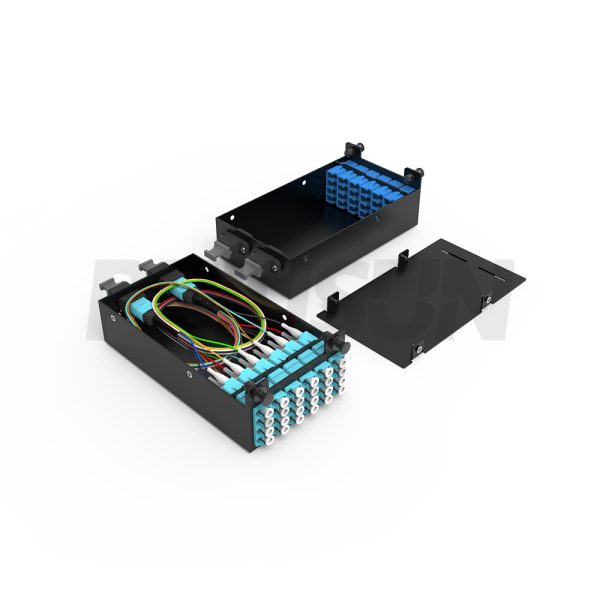

Modular MPO cassettes	Easy disassembly	Cable entry mode
Removable modular design can achieve rapid repalcement and wiring, and reach max capacity 144 fibers in 6 MPO cassette module.	The top cover can be easily disassembled by hand screw.	Oval cable entry ports at both lateral sides of the patch panel as the primary cable leading; and the spare round cable entry ports at the back to meet different cable inlet requirements of users.
