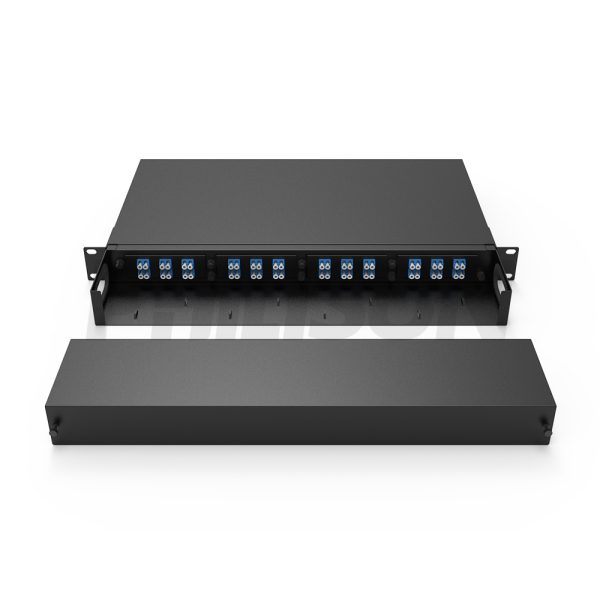

MPO 1U Rack Mount Fiber Patch Panel with 4 Metal Cassettes(4pcs of 12 Fibers MPO to LC Fiber Patch Cord), 48 Fibers, Fixed Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	48 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Fixed	Overall Dimensions	1U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	4 Metal cassettes
Breakout Length	0.3m	Patch Cord Type	4pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 1 patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times

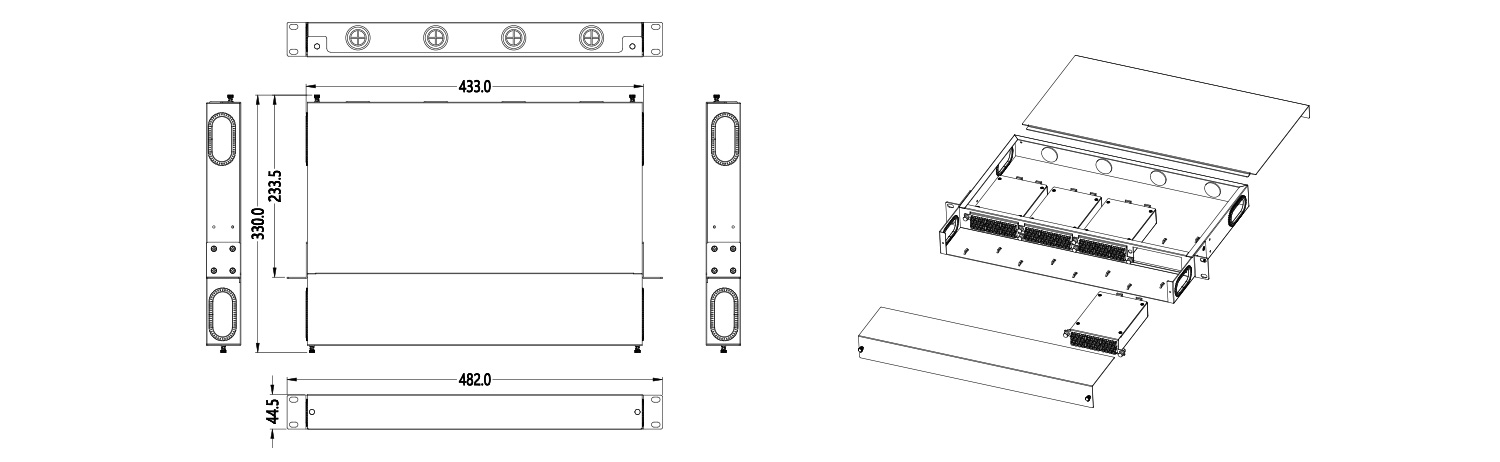

Depth	330mm	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

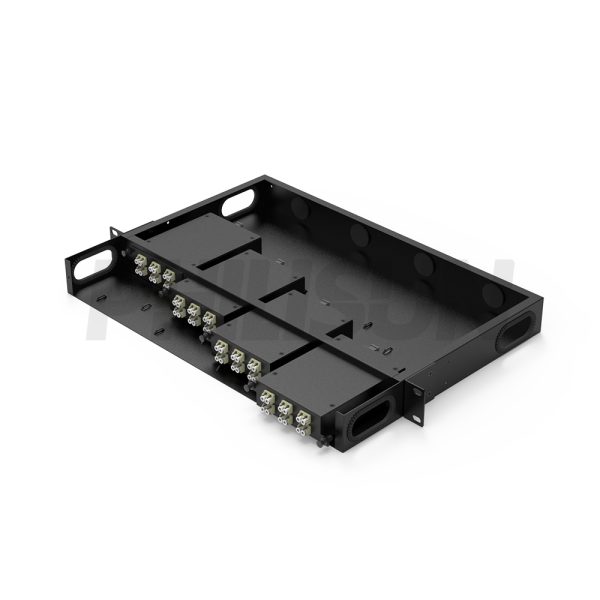

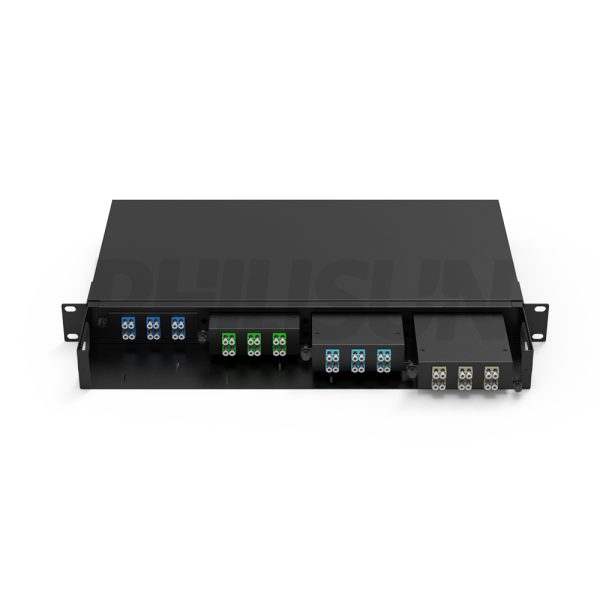

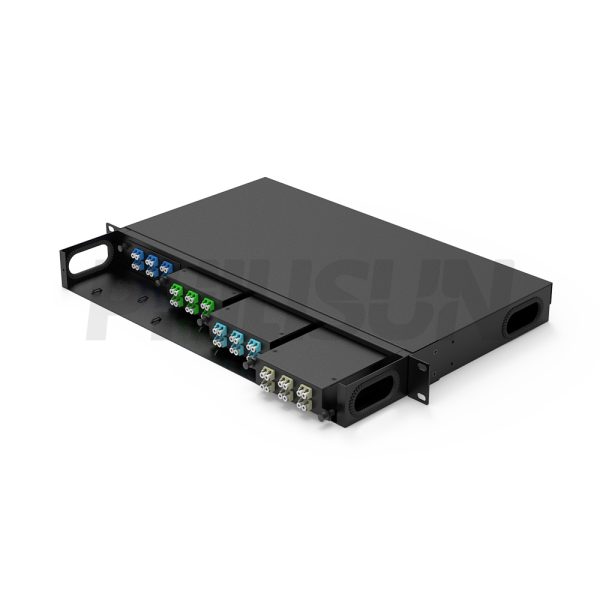

This 1U Fixed MPO Patch Panel is built with a rugged, all-metal construction for exceptional durability and signal protection. Containing four 12-fiber metal cassettes, it delivers 48 active LC ports in a stable, fixed platform. This configuration is perfect for mission-critical core links, securely supporting 24 dual-fiber channels or 48 high-speed single-fiber bidirectional channels via four MPO-12 connections. The metal cassettes ensure superior mechanical protection and heat dissipation compared to standard plastic alternatives.

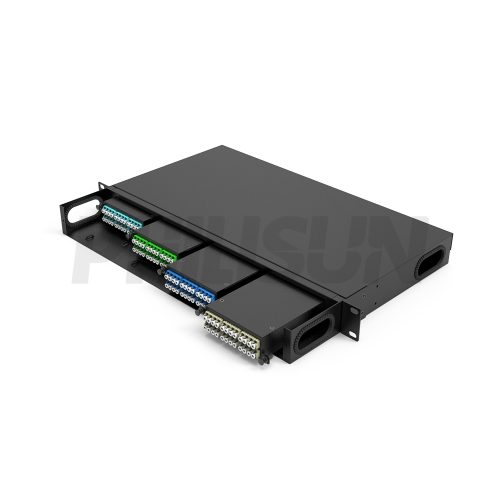

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

*1U Fixed 4Metal Cassettes**

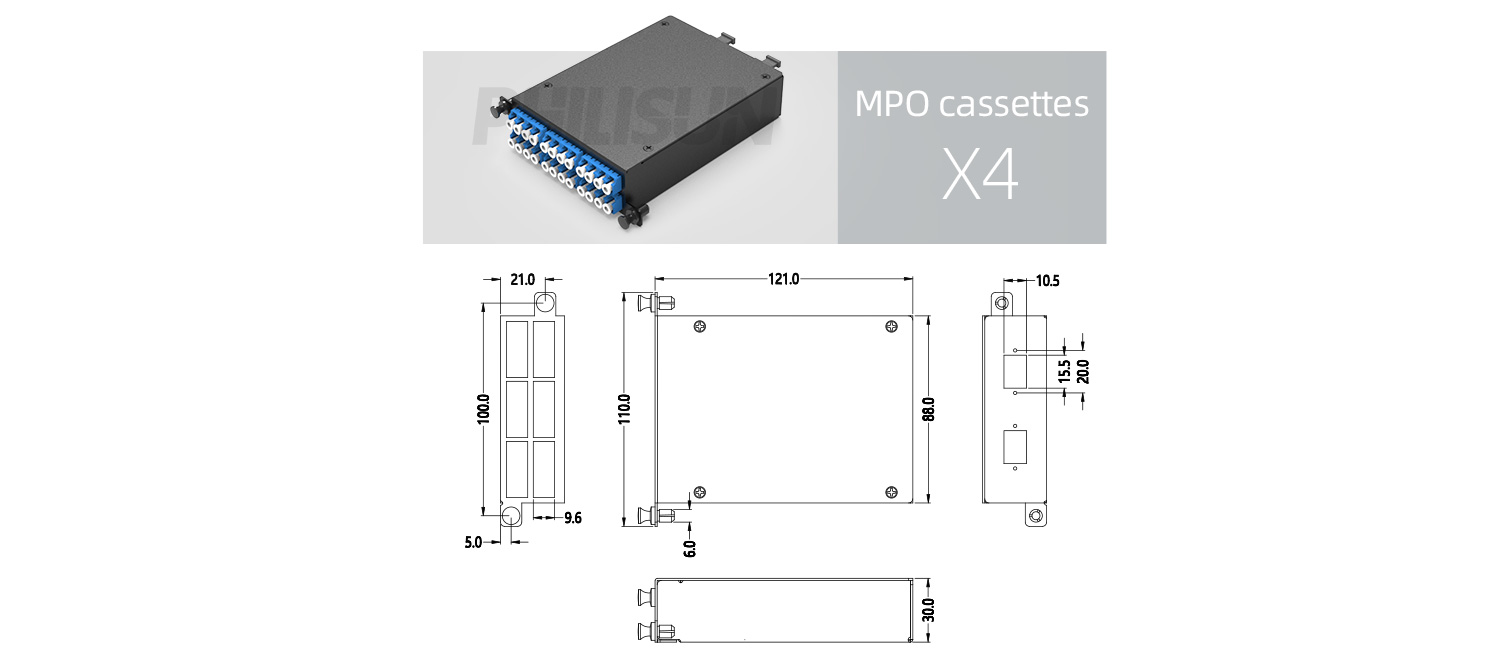

Modular MPO cassettes	Easy disassembly	Cable entry mode	Cable organizing panel

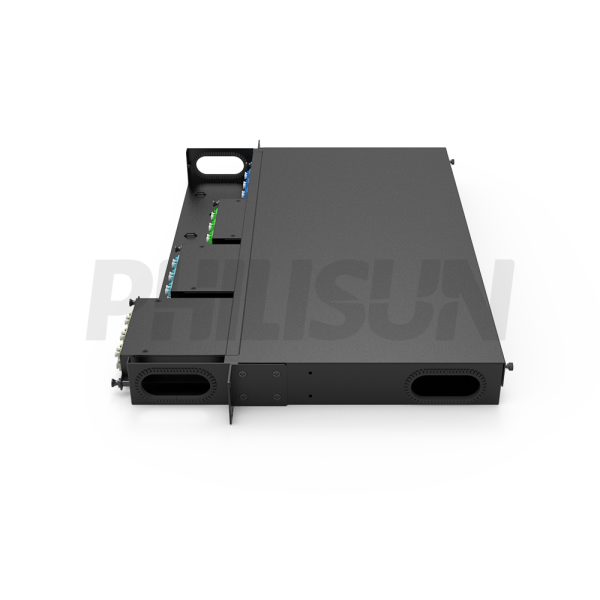

Removable modular design can achieve rapid replacement and wiring, and reach max capacity 96 fibers in 4 MPO cassette module.	Each single sliding tray can be easily disassembled by pressing its locking clip, and can be easily assembled by simply pushing it back in the opposite direction.	Oval cable entry ports at both lateral sides of the patch panel as the primary cable leading; and the spare round cable entry ports at the back to meet different cable inlet requirements of users.	The front of patch panel is equipped with cable organizing panel, which is convenient for cable management.
