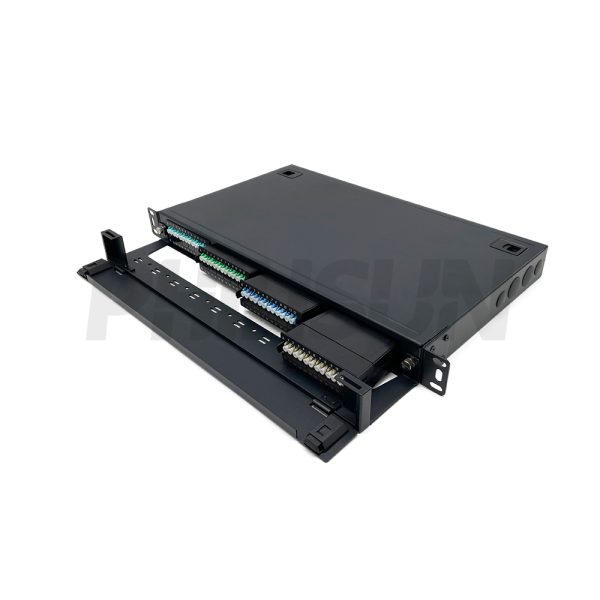

MPO 1U Rack Mount Fiber Patch Panel with 4 Plastic Cassettes(4pcs of 12 Fibers MPO to LC Fiber Patch Cord), 48 Fibers, Fixed Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	48 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Fixed	Overall Dimensions	1U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	4 Plastic cassettes
Breakout Length	0.3m	Patch Cord Type	4pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 1 patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	255mm(without front cable tray)/343mm(with front cable tray)	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

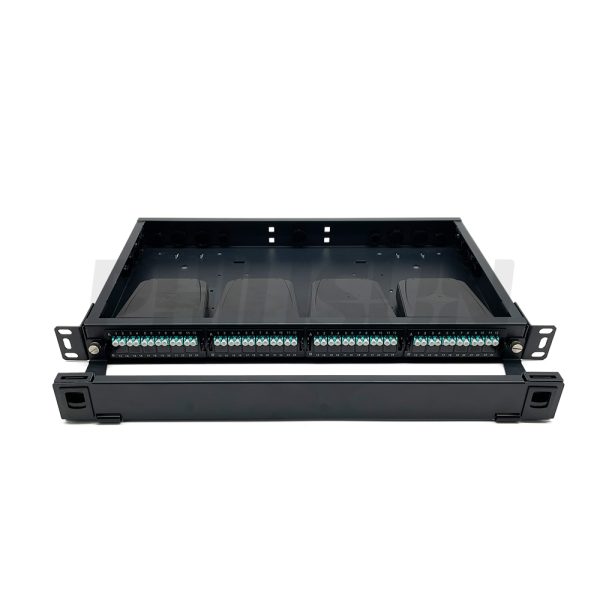

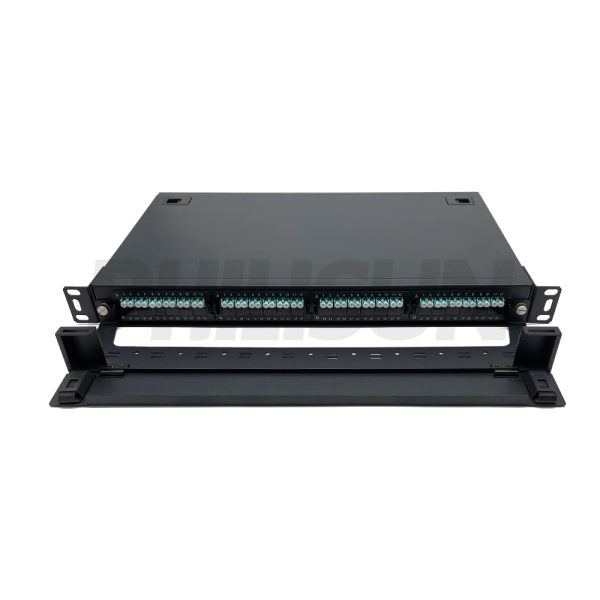

This 1U Fixed MPO Patch Panel provides a structurally rigid and permanent high-density aggregation point, delivering 48 fibers across a single rack unit. Pre-configured with four MPO-12 to LC cassettes, it is ideal for stable installations, supporting 24 dedicated dual-fiber channels or 48 high-speed single-fiber bidirectional channels via four MPO-12 connections. The fixed design ensures maximum stability and protection for mission-critical links, consolidating MPO trunking into manageable LC ports with minimal risk of disturbance or movement.

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

*1U Fixed 4 Plastic Cassettes**

Easy to open the upper cover design	Modular design	Optical cable introduction	High quality
The upper cover of the wiring box adopts the door latch locking mode, and the upper cover can be opened without using tools.	The pre-connector Cassettes is configured for quick wiring replacement. Standard 1U size, can accommodate up to 4 Cassettes, the maximum number of wiring cores up to 96 cores.	Multiple cable entry ports are provided at the rear and left and right sides of the chassis, and the chassis is equipped with a plurality of optical cable winding and fixing points.	Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

SIZE INFORMATION

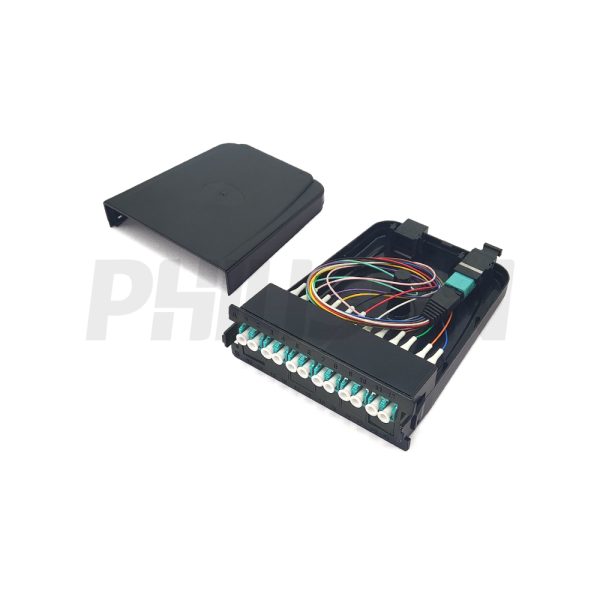

MPO MODULAR CASSETTES INFORMATION

Adapter Panel Order Information
6 Ports Cassette(6 Plugs)		Each Port Can Use LC Duplex Flangeless Adapter
6 Ports Cassette(6 Plugs)		Each Port Can Use SC Simplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use LC Duplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use SC Simplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use LC Duplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use SC Simplex Flangeless Adapter
6 Port Adapter Panel		Each Port Can Use Standard MPO Long-Flange Adapter
12 Port Adapter Panel		Each Port Can Use SC Frootprint MPO Flangeless Adapter
Blank Plate		-
