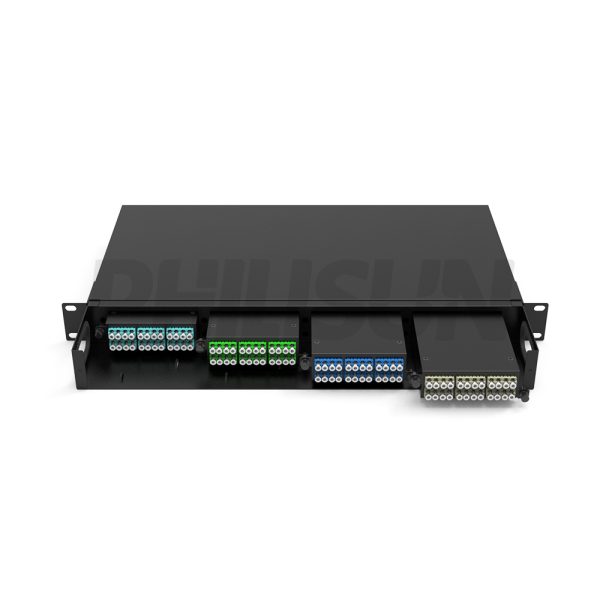

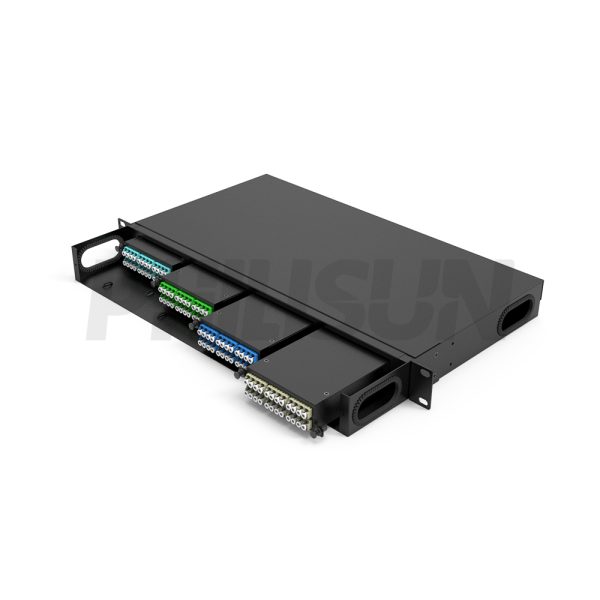

MPO 1U Rack Mount Fiber Patch Panel with 4 Metal Cassettes(4pcs of 24 Fibers MPO to LC Fiber Patch Cord), 96 Fibers, Fixed Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	96 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Fixed	Overall Dimensions	1U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	4 Metal cassettes
Breakout Length	0.3m	Patch Cord Type	4pcs of MPO-24LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 1 patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	330mm	Polarity	TYPE A/AF/U/UF
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This high-capacity 1U Fixed MPO Patch Panel maximizes fiber density and structural integrity, achieving 96 fibers from four MPO-24 inputs. The metal cassettes are key for high-reliability environments, protecting the critical conversion of the MPO backbone to 48 dual-fiber or 96 single-fiber bidirectional channels. This robust, fixed unit simplifies the aggregation of large backbones and ensures consistent, stable performance where maximum fiber protection and long-term durability are paramount.

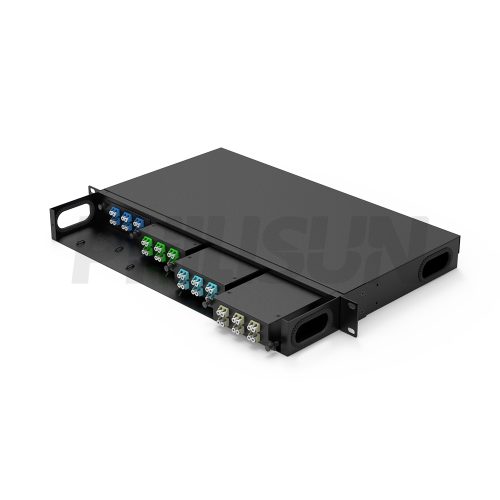

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

*1U Fixed 4Metal Cassettes**

Modular MPO cassettes	Easy disassembly	Cable entry mode	Cable organizing panel

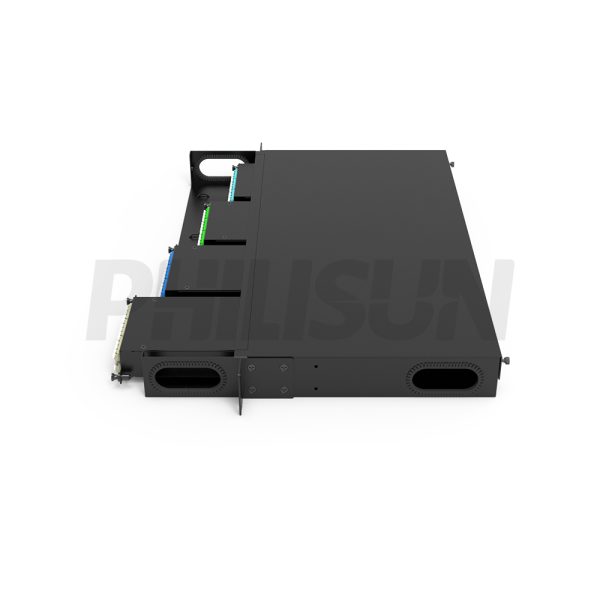

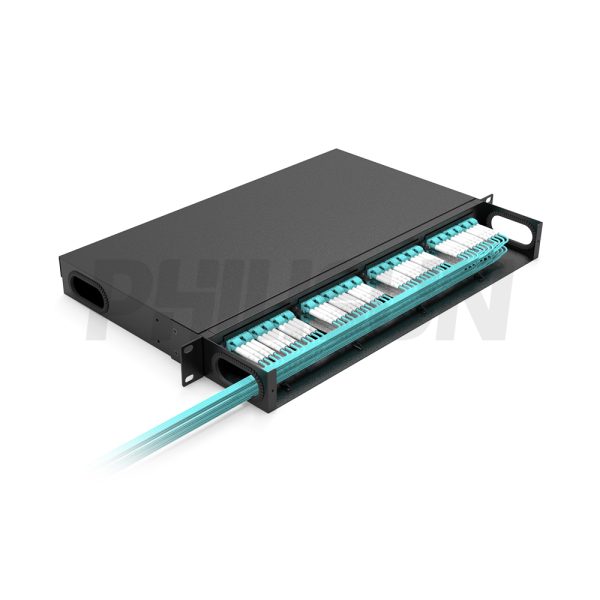

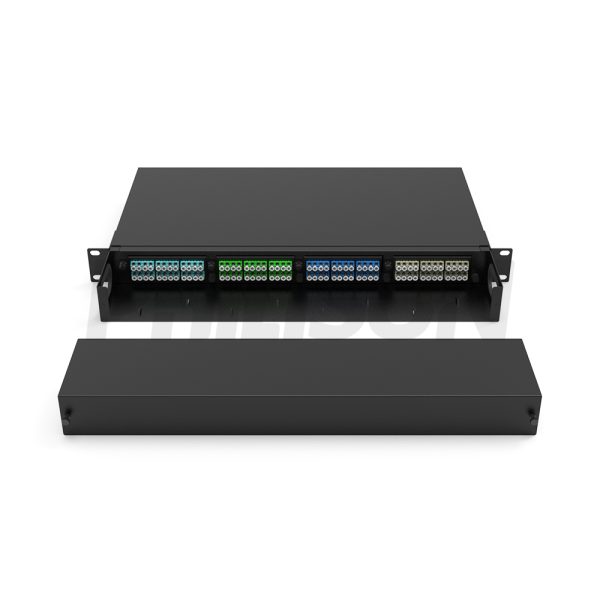

Removable modular design can achieve rapid replacement and wiring, and reach max capacity 96 fibers in 4 MPO cassette module.	Each single sliding tray can be easily disassembled by pressing its locking clip, and can be easily assembled by simply pushing it back in the opposite direction.	Oval cable entry ports at both lateral sides of the patch panel as the primary cable leading; and the spare round cable entry ports at the back to meet different cable inlet requirements of users.	The front of patch panel is equipped with cable organizing panel, which is convenient for cable management.
