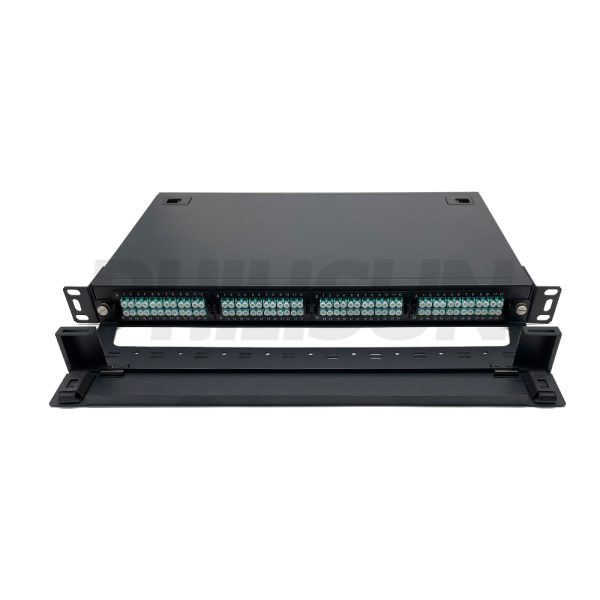

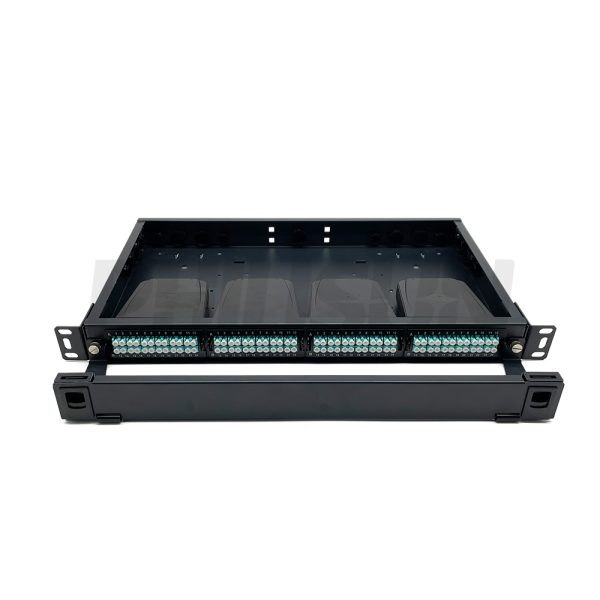

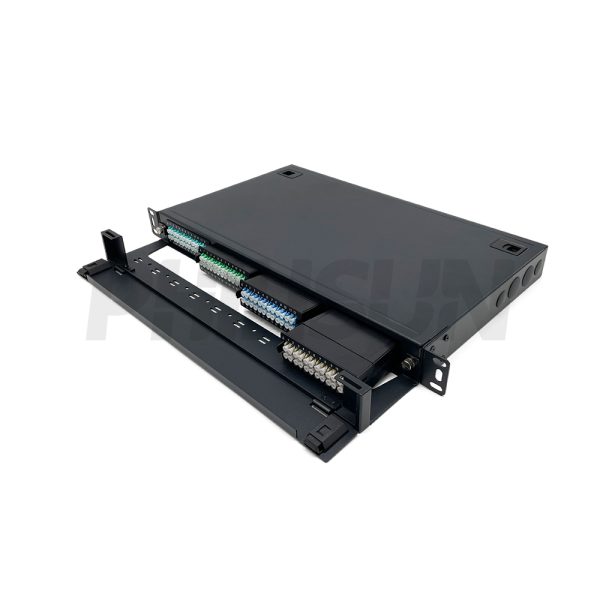

MPO 1U Rack Mount Fiber Patch Panel with 4 Plastic Cassettes(8pcs of 12 Fibers MPO to LC Fiber Patch Cord), 96 Fibers, Fixed Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	96 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Fixed	Overall Dimensions	1U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	4 Plastic cassettes
Breakout Length	0.3m	Patch Cord Type	8pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 2 Patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	255mm(without frontcable tray)/343mm(with front cable tray)	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This ultra-dense 1U Fixed MPO Patch Panel is built for extreme link consolidation, managing eight MPO-12 inputs across four specialized cassettes to deliver 96 active LC ports. It securely supports 48 dual-fiber channels or an astonishing 96 single-fiber bidirectional channels, optimizing space utilization for core distribution racks. The fixed construction provides a tamper-resistant and highly stable platform for 8 MPO-12 connections, drastically reducing cable clutter while ensuring long-term performance and reliability in demanding environments.

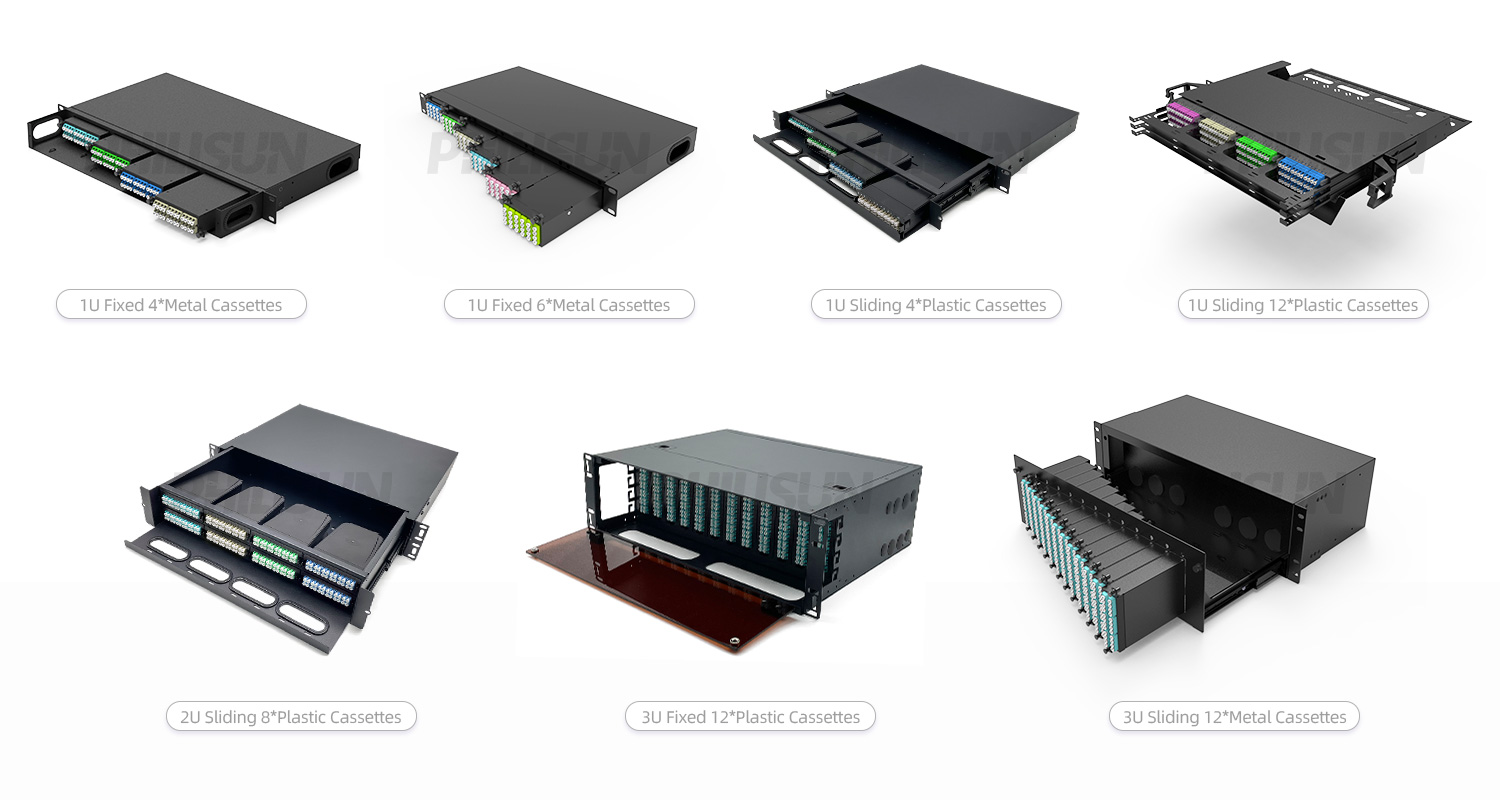

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

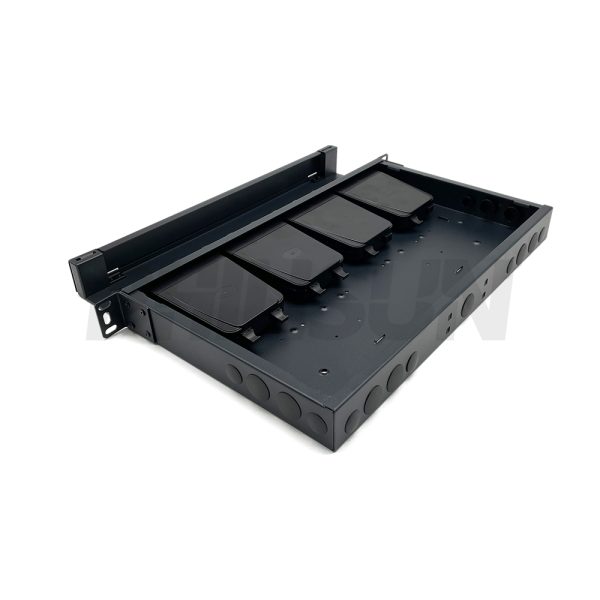

*1U Fixed 4 Plastic Cassettes**

Easy to open the upper cover design	Modular design	Optical cable introduction	High quality
The upper cover of the wiring box adopts the door latch locking mode, and the upper cover can be opened without using tools.	The pre-connector Cassettes is configured for quick wiring replacement. Standard 1U size, can accommodate up to 4 Cassettes, the maximum number of wiring cores up to 96 cores.	Multiple cable entry ports are provided at the rear and left and right sides of the chassis, and the chassis is equipped with a plurality of optical cable winding and fixing points.	Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

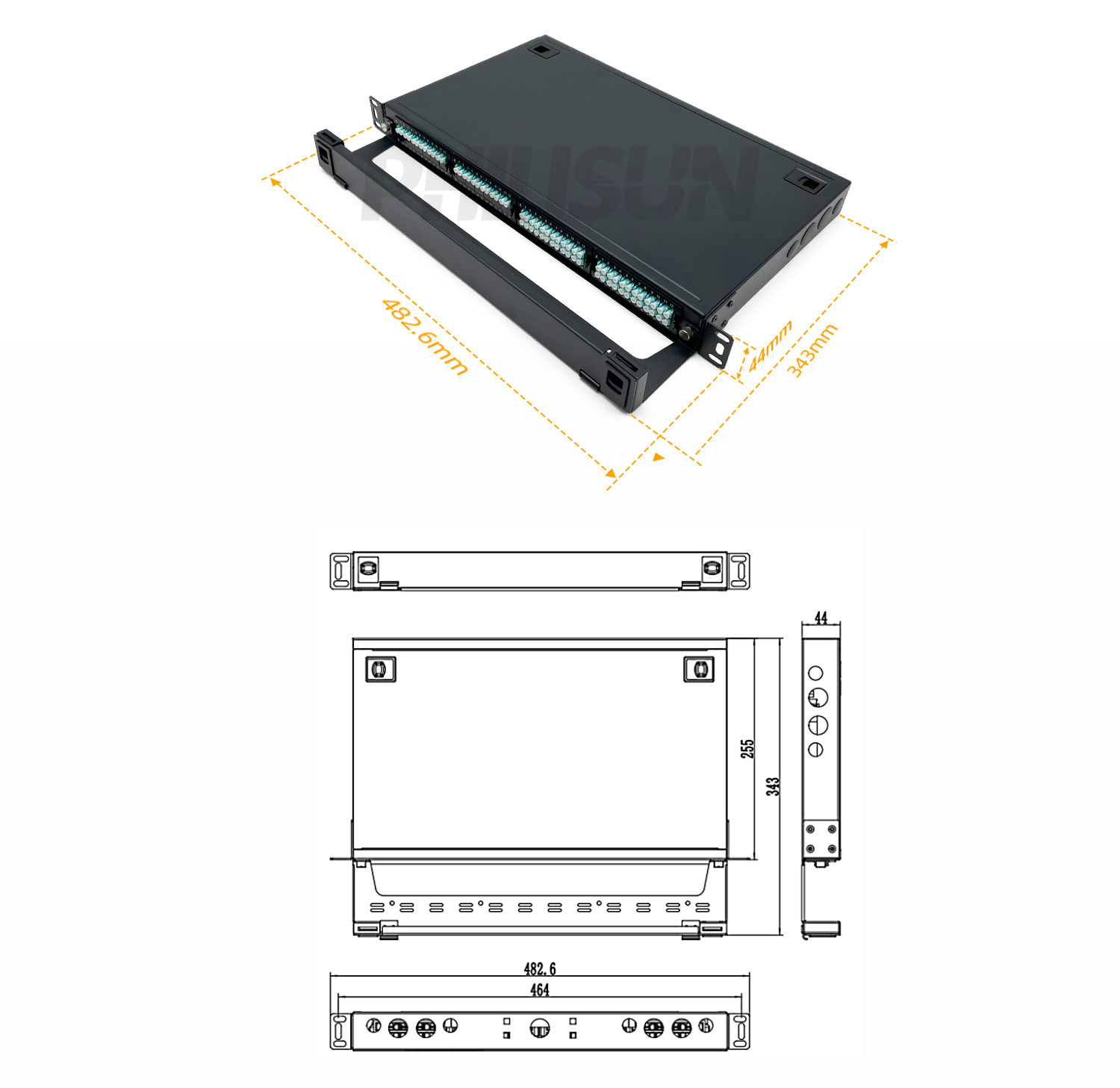

SIZE INFORMATION

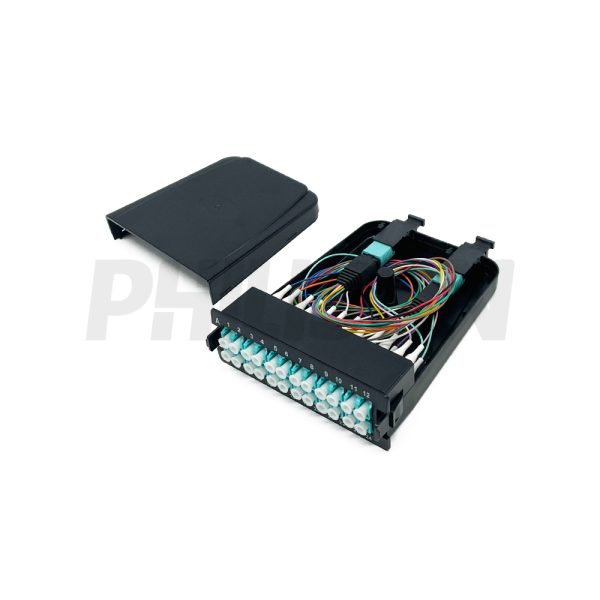

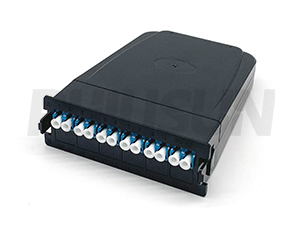

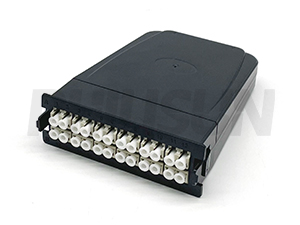

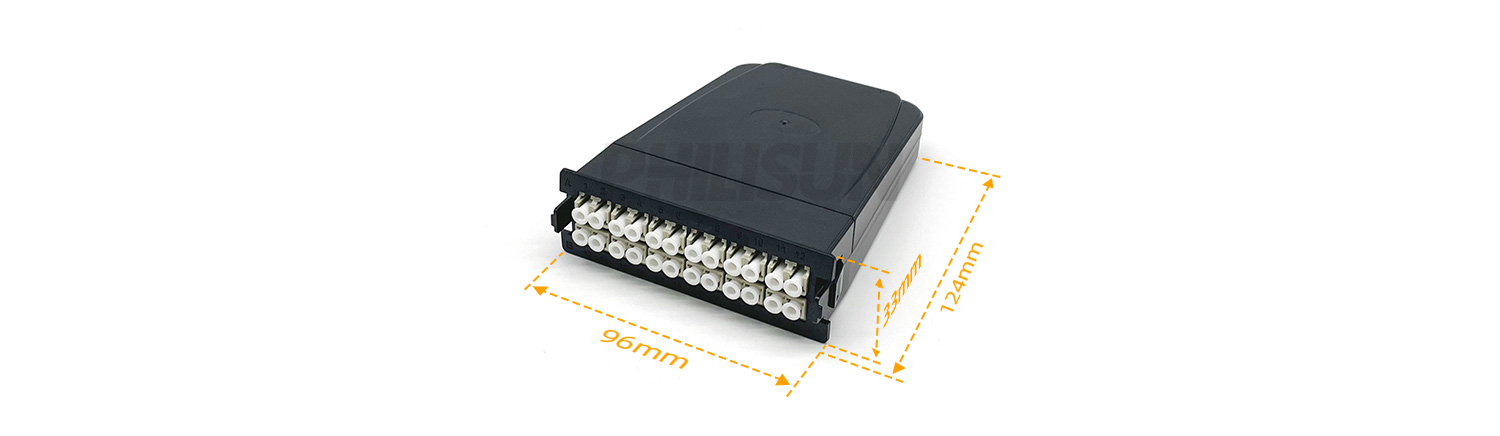

MPO MODULAR CASSETTES INFORMATION

Adapter Panel Order Information

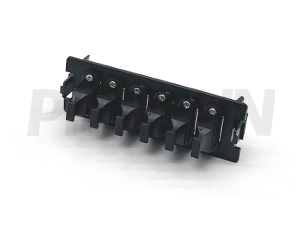

6 Ports Cassette(6 Plugs)		Each Port Can Use LC Duplex Flangeless Adapter
6 Ports Cassette(6 Plugs)		Each Port Can Use SC Simplex Flangeless Adapter

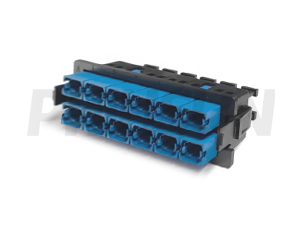

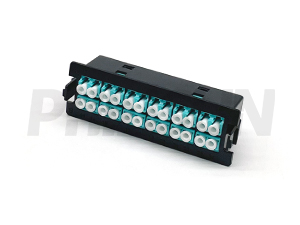

12 Ports Cassette		Each Port Can Use LC Duplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use SC Simplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use LC Duplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use SC Simplex Flangeless Adapter
6 Port Adapter Panel		Each Port Can Use Standard MPO Long-Flange Adapter
12 Port Adapter Panel		Each Port Can Use SC Frootprint MPO Flangeless Adapter

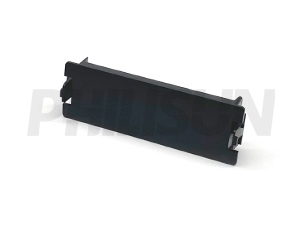

Blank Plate		-
