MPO 1U Rack Mount Fiber Patch Panel with 4 Plastic Cassettes(8pcs of 12 Fibers MPO to LC Fiber Patch Cord), 96 Fibers, Sliding Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	96 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Sliding	Overall Dimensions	1U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	4 Plastic cassettes
Breakout Length	0.3m	Patch Cord Type	8pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 2 Patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	363.2mm	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This high-density 1U Sliding MPO Patch Panel is built for extreme consolidation, delivering 96 active LC ports by managing eight MPO-12 inputs across four specialized cassettes. This configuration supports 48 dual-fiber channels or an astounding 96 single-fiber bidirectional channels, optimizing space utilization for core and access networks. The pre-configured, modular system drastically accelerates deployment and simplifies cable management, providing network engineers with an accessible, high-performance platform for dense, multi-protocol environments that rely on 8 MPO-12 connections.

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

*1U Sliding 4 Plastic Cassettes**

Sliding design	Modular design	Optical cable introduction	High quality
The Enclosure adopts high-quality guide rail, and the tray can be completely extracted from the chassis, which is convenient for jumper docking and optical cable storage operation.	Flexible configuration by using removable modular design, optional adapter panel or MPO cassette module to realize different configuration requirements of ports and meet various wiring schemes.	The rear of the chassis is equipped with a plurality of cable inlet, and the chassis is equipped with a plurality of optical cable winding and fixing points.	Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

SIZE INFORMATION

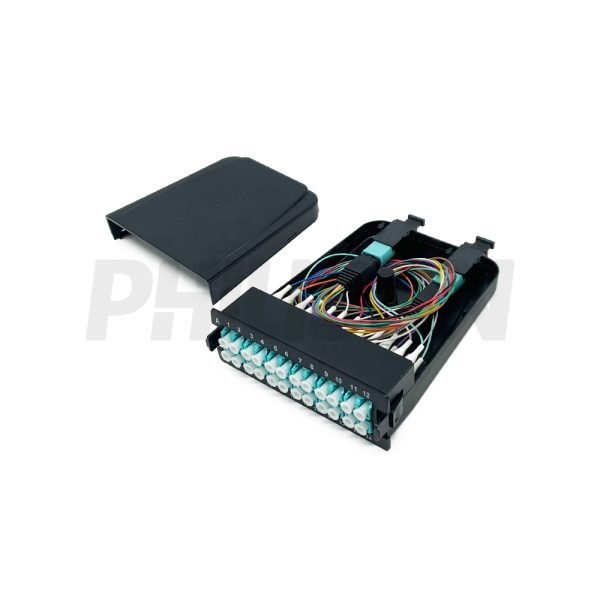

MPO MODULAR CASSETTES INFORMATION

Adapter Panel Order Information
6 Ports Cassette(6 Plugs)		Each Port Can Use LC Duplex Flangeless Adapter
6 Ports Cassette(6 Plugs)		Each Port Can Use SC Simplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use LC Duplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use SC Simplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use LC Duplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use SC Simplex Flangeless Adapter
6 Port Adapter Panel		Each Port Can Use Standard MPO Long-Flange Adapter
12 Port Adapter Panel		Each Port Can Use SC Frootprint MPO Flangeless Adapter
Blank Plate		-
