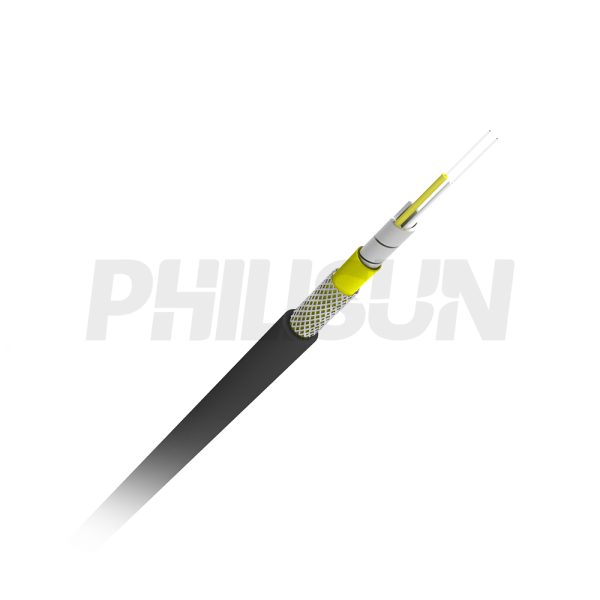

5.0mm, Customized Double-Layer Spiral and Woven Armored Tactical Fiber Optic Cable, 2 Fibers, Black

Available in Connector Type
Available in LSZH/TPU Jacket
Available in Different Breakout Types
Available in Pulling Eye
High compressive force and resistance to compression

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector TypeLC/SC/FC/ST/E2000Fiber Count2
Fiber TypeSM OS2/OM3/OM4/OM5Polish TypeUPC or APC
Ferrule TypeGrade A zirconia ceramic ferruleRL≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
IL≤0.3dBInterchangeability≤0.2dB
Repeatability≤0.2dBWorking Wavelength1310/1550(SM) 850/1300(MM)
Waterproof FunctionYESJacket ColorBlack
Matching Cable Outer Diameter5.0mmFlame Retardant GradeOFN/OFNR/OFNP
Armored MaterialSpiral stainless steelSheath TypeDouble-layer spiral + woven armored
Inner Cable Diameter0.9mmBranch TypeRound Tube/Armored Tube
Durability≥500 timesFiber LossSM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Jacket MaterialPVC/LSZH/PUFiber BrandCorning/YOFC
Min.bending Radius(Short Term)10DMin.bending Radius(Long Term)20D
Operating Temperature-40 to 70℃ (-40 to 158℉)Storage Temperature-20 to 60℃ (-4 to 140℉)



PRODUCT PRESENTATION
Armored Tactical Cable feature excellent bending resistance, oil resistance and wear resistance. For this reason, armored fiber patch cords are highly suitable for both indoor and outdoor applications, such as network interconnection between two buildings via underground pipelines or direct burial. The armor specifications, fiber types and core counts of this product can be customized to meet specific requirements.



PATCH CORD SERIES PRODUCTS



DETAIL DISPLAY



BRANCHING METHOD

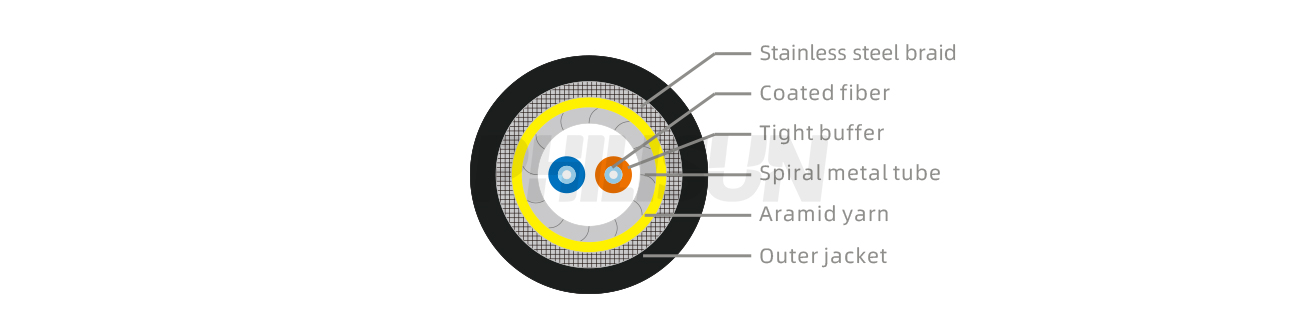

FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count246812
Tight-buffer FiberOuter Diameter0.6±0.1mm0.9±0.1mm0.6±0.1mm0.6±0.1mm0.6±0.1mm0.6±0.1mm
MaterialPVC
Stainless StelltubeMaterialSUS204
Internal Diameter1.25±0.1mm2.2±0.1mm2.1±0.1mm---
Outer Diameter1.8±0.1mm2.8±0.1mm2.4±0.1mm2.6±0.1mm2.8±0.1mm3.5±0.1mm
Metal Braid LayerMaterialSUS304
Outer JacketMaterialTPU
ColorBlack/Customer-Specified
Thickness0.6±0.1mm1.0±0.1mm/0.9±0.1mm0.9±0.1mm1.1±0.1mm---
Outer Diameter3.3±0.2mm4.0±0.2mm5.0±0.2mm4.5±0.2mm5.0±0.2mm5.0±0.2mm5.0±0.2mm6.0±0.2mm
Mechanical Performance
ItemsSpecifications
Fiber Count246812
Outer Jacket Dimension/mm3.3±0.2mm4.0±0.2mm5.0±0.2mm4.5±0.2mm5.0±0.2mm5.0±0.2mm5.0±0.2mm6.0±0.2mm
Tension（Long Term）/N300600400600400500500
Tension（Short Term）/N6001000800100080010001000
Crush/N/10cm3000
Min. Bend Radius/mm30D
Operating Temperature/℃-40～+85
Storage Temperature/℃-40～+85



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0
