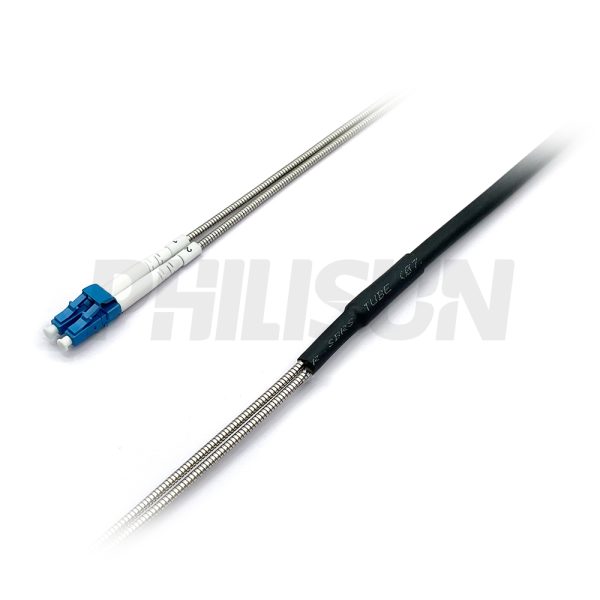

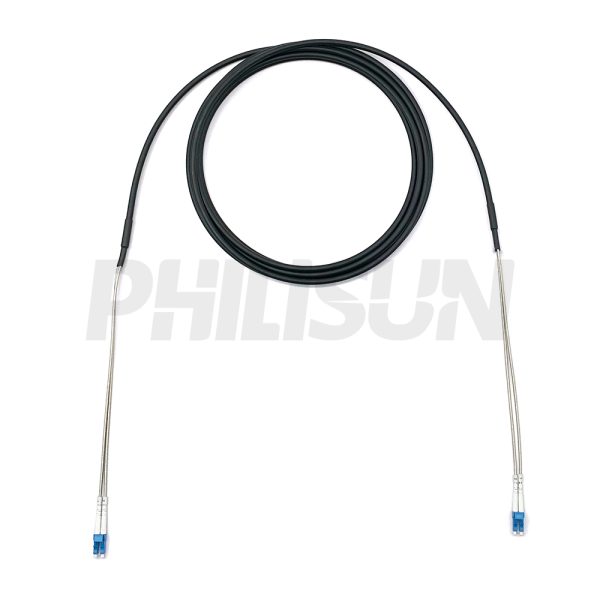

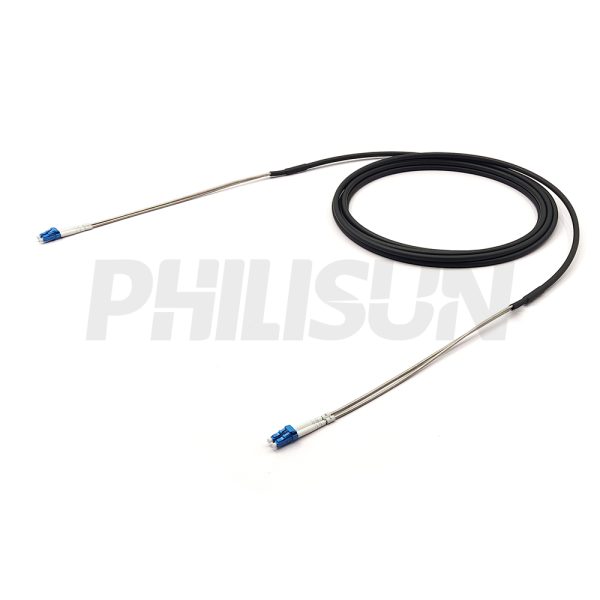

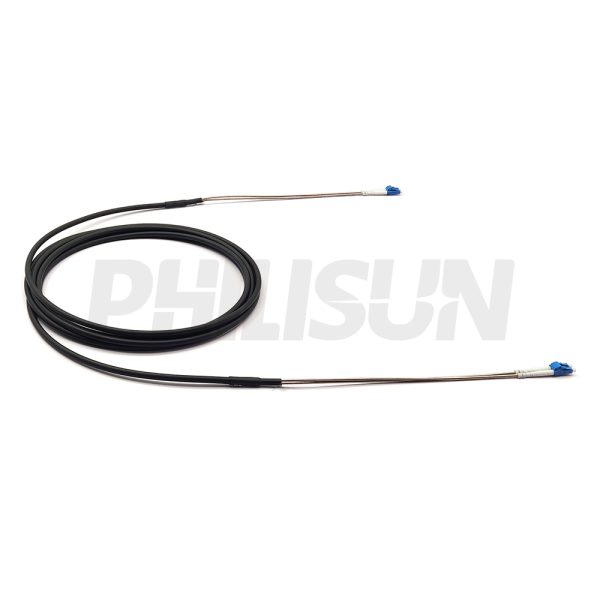

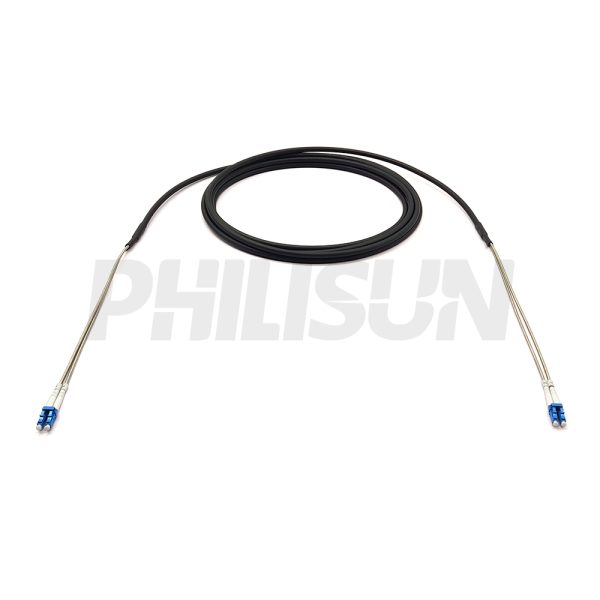

7.0mm, Customized FTTA Outdoor Fiber Patch Cable, 2 Fibers, Black

2 optical fibers + 2 filler ropes
OD 7.0mm
Unroll/Rotate around the axis
Armored/Non-armored

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector TypeLC/SC/FC/ST/E2000Fiber Count2
Fiber TypeSM OS2/OM3/OM4/OM5Polish TypeUPC or APC
Ferrule TypeGrade A zirconia ceramic ferruleRL≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
Connector ColorBlue/Green/Beige/Aque/Violet/Lime greenInterchangeability≤0.2dB
IL≤0.3dBWorking Wavelength1310/1550(SM) 850/1300(MM)
Repeatability≤0.2dBJacket ColorBlack
Matching Cable Outer Diameter7.0mmFlame Retardant GradeOFN/OFNR/OFNP
Branch TypeArmored/Non-armoredBranch Outer Diameter2.0mm/3.0mm
Jacket MaterialPVC/LSZH/TPU/PE or customizedFiber LossSM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber BrandCorning/YOFCDurability≥500 times
Min.bending Radius(Short Term)10DMin.bending Radius(Long Term)20D
Operating Temperature-10 to 70℃ (14 to 158℉)Storage Temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION
Designed for reliable performance in heavy industrial settings, this FTTA patch cord ensures seamless connectivity from BBU to antenna systems. Available with customizable connector types and your choice of armored or non-armored construction, it adapts to diverse installation needs.Built for durability, the cable offers excellent crush resistance and flexibility, enabling easy routing in tight spaces. The LSZH sheath provides UV stability and strong resistance to industrial chemicals like oils and solvents, making it suitable for both indoor and outdoor use.



PATCH CORD SERIES PRODUCTS

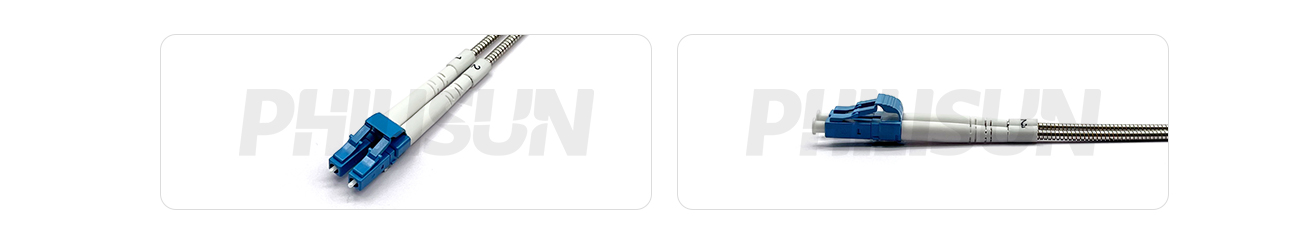

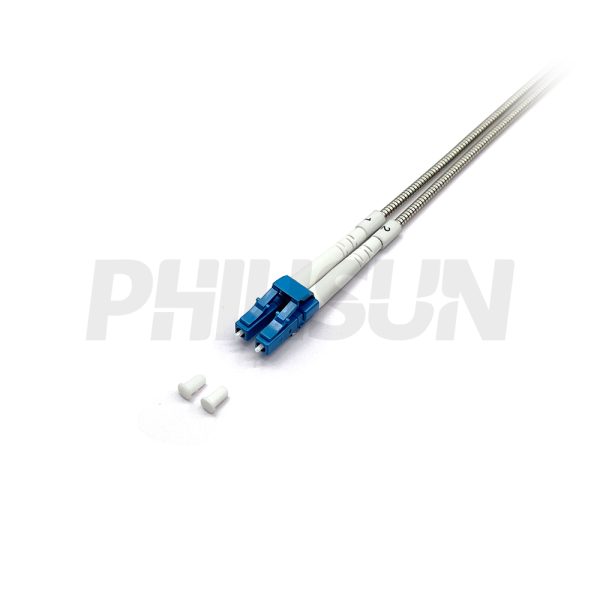

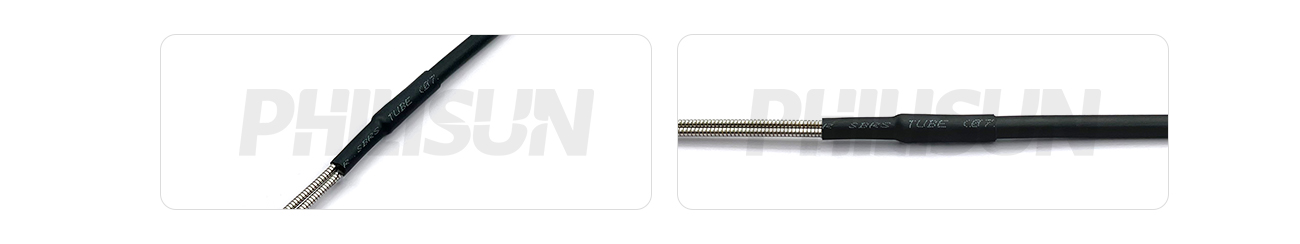

DETAIL DISPLAY



BRANCHING METHOD

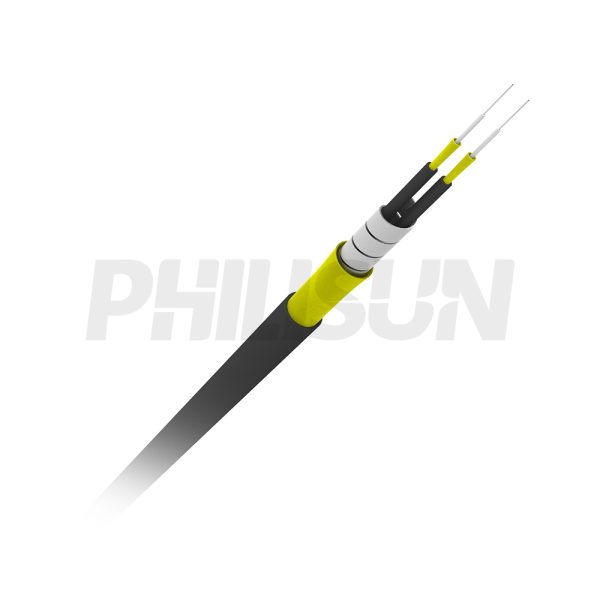

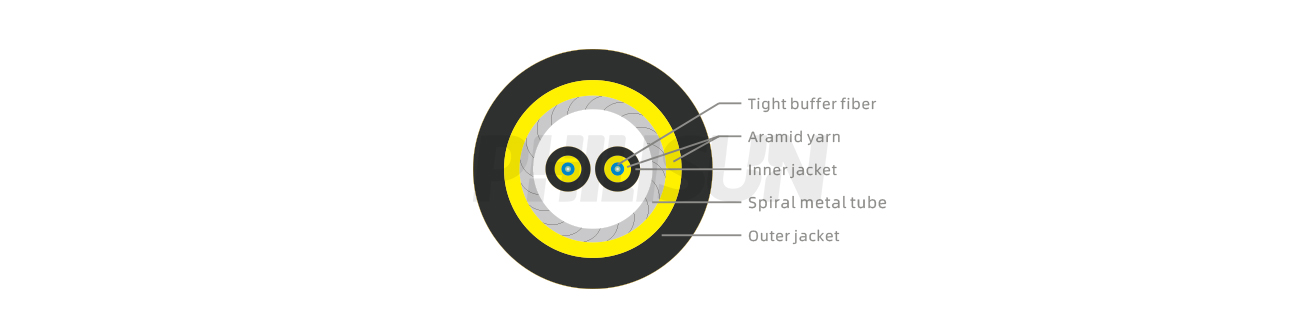

FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count24
Inner Simplex CableMaterialLSZH
Thickness0.4mm±0.05mm
Outer Diameter1.9mm±0.1mm
Stainless StelltubeMaterialSUS204
Outer Diameter4.8mm±0.3mm6.0mm±0.3mm
Thickness0.4mm±0.05mm
Gap0.3mm±0.10mm
Strength MemberModelAramid yarn
position1Outside The Tight-Buffered Fiber
position2Outside The Stainless Steel Tube
Outer JacketMaterialLSZH
ColorBlack
Thickness0.9mm±0.1mm1.1mm±0.1mm
Out Diameter7.0mm±0.3mm8.0mm±0.5mm
Mechanical Performance
ItemsSpecifications
Fiber Count24
Compression Resistant Strength/N/100m≥3000
Tension（Short Term）/N/10cm≥1000≥1200
Tension（Long Term）/N/10cm≥600≥800
Weight/Kg/Km6585
Operating Temperature/℃-40~+80
Storage Temperature/℃-40~+80



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0



PRODUCT CERTIFICATION



QUALITY ADVANTAGE



CONFIGURATION INFORMATION
FTTA跳线产品详情订购信息
