200G QSFP56 to QSFP56 Passive Direct Attach Copper Twinax Cable (DAC)

Compliant with IEEE802.3cd、SFF-8436 standard
Switch to Switch
Switch to GPU

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Cable End Connector AQSFP56Cable End Connector BQSFP56
Jumper TypeDirect-AttachData Rate200G
Aggregate Bit Rate200GbpsLane Bit Rate50Gbps
Number of Channels4Single Channel Rate50G
Minimum Bend Radius5X Cable OD -Single, 10X Cable OD - RepeatedFactory BrandPHILISUN
Attenuation26AWG:10dB/8.5m maximum
30AWG:8.4dB/5.5m maximum		Bit Error Rate≤10-12
ShieldBraid/FoilWire AWG26AWG/30AWG
Cable TypePassive TwinaxCable OD30AWG: 7.8mm
26AWG: 6.0mm
Cable Colour/MaterialBlack PVC(OFNR)Cable Length Selection0.5-3.5 meter
ProtocolsIEEE 802.3cd/ QSFP56 MSA/SFF-8661/SFF-8636/SFF-8417/SFF-8679/Application Scenarios200Gigabit Ethernet (200GbE)
Supply Voltage3.3VPower Dissipation<0.03W
Operating Temperature0 to 70℃ (32 to 158℉)Storage Temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION
The PHILISUN 200G QSFP56 to QSFP56 Passive Direct Attach Copper Twinax Cable (DAC) delivers a robust, point-to-point solution for 200 Gigabit Ethernet using PAM4 signaling. It is compliant with the IEEE 802.3cd and SFF-8436 Standard, providing highly reliable connectivity. This Passive Copper solution is Cost-Effective and offers Ultra-Low Latency over short runs, making it an ideal choice for direct Switch to Switch communication and essential Server Interconnect paths from Switch to GPU within the rack.

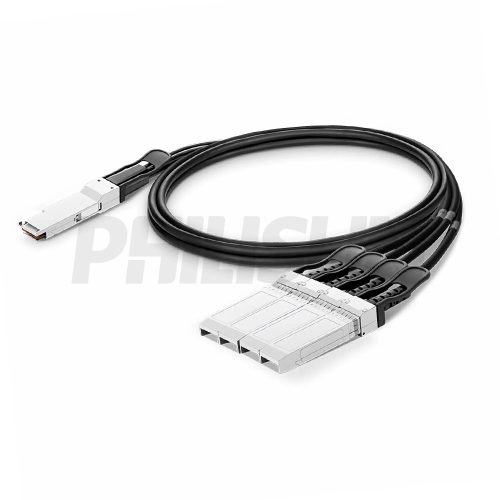

DAC SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Ref.
Storage Temperature – -40 – +85 ℃ –
Operating Case Temperature Tc 0 – +70 ℃ –
Power Supply Voltage VCC3 3.14 3.3 3.47 V –
Data Rate Per Lane – 1 – 50 Gb/s –



Electrical Characteristics
Item Specification Notes
SDD21 & SDD12 -17.16 dB Min. @13.28 GHz From 0.01 GHz-19GHz
SDD11 & SDD22 -16.5+2*sqrt(f)dB Max. @0.05GHz~4.1GHz
-10.66+14*log(f/5.5)dB Max.@4.1GHz~10GHz		 From 0.01 GHz- 19GHz
SCD21-SDD21 -10 dB Max. @0.01 GHz~12.89 GHz
-27+(29/22)*fdB Max. @12.89 GHz~15.7 GHz
-6.3 dB Max. @15.7 GHz~19 GHz		 From 0.01 GHz- 19GHz



Pin Definition



PIN Logic Symbol Description Notes
1 – GND Ground 1
2 CML-I Tx2n Transmitter Inverted Data –
3 CML-I Tx2p Transmitter Non-Inverted –
4 – GND Ground 1
5 CML-I Tx4n Transmitter Inverted Data –
6 CML-I Tx4p Transmitter Non-Inverted –
7 – GND Ground 1
8 LVTTL-I ModSelL Module Select –
9 LVTTL-I ResetL Module Reset –
10 – VccRx +3.3 V Power Supply 2
11 LVCMOS SCL 2-wire serial interface –
12 LVCMOS SDA 2-wire serial interface –
13 – GND Ground 1
14 CML-O Rx3p Receiver Non-Inverted –
15 CML-O Rx3n Receiver Inverted Data –
16 – GND Ground 1
17 CML-O Rx1p Receiver Non-Inverted –
18 CML-O Rx1n Receiver Inverted Data –
19 – GND Ground 1
20 – GND Ground 1
21 CML-O Rx2n Receiver Inverted Data –
22 CML-O Rx2p Receiver Non-Inverted –
23 – GND Ground 1
24 CML-O Rx4n Receiver Inverted Data –
25 CML-O Rx4p Receiver Non-Inverted –
26 – GND Ground 1
27 LVTTL-O ModPrsL Module Present –
28 LVTTL-O IntL Interrupt –
29 – Vcc Tx +3.3V Power supply 2
30 – Vcc1 +3.3V Power supply 2
31 LVTTL-I LPMode Low Power Mode –
32 – GND Ground 1
33 CML-I Tx3p Transmitter Non-Inverted –
34 CML-I Tx3n Transmitter Inverted Data –
35 – GND Ground 1
36 CML-I Tx1p Transmitter Non-Inverted –
37 CML-I Tx1n Transmitter Inverted Data –
38 – GND Ground 1
Notes:
1. GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these  directly to the hostboard signal-common ground plane.
2.Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Requirements defined for the host side of the Host Edge Card Connector are listed in Table 6. Recommended host board power supply filtering is shown in Figure 4. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the QSFP+ Module module in any combination. The connector pins are each rated for a maximum current of 500 mA.
