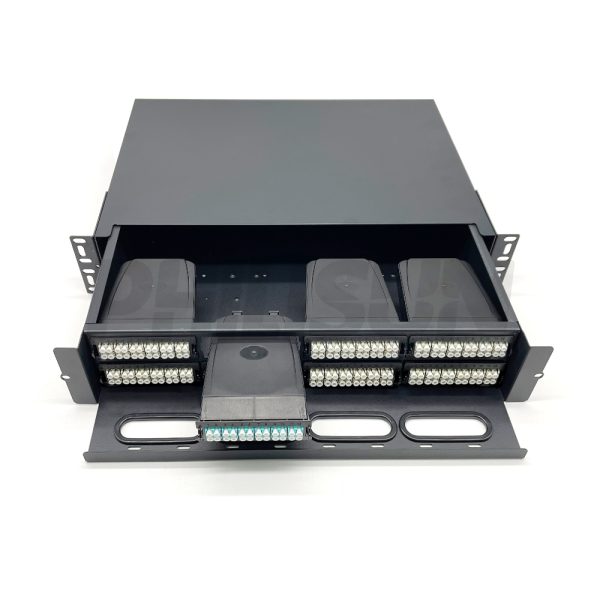

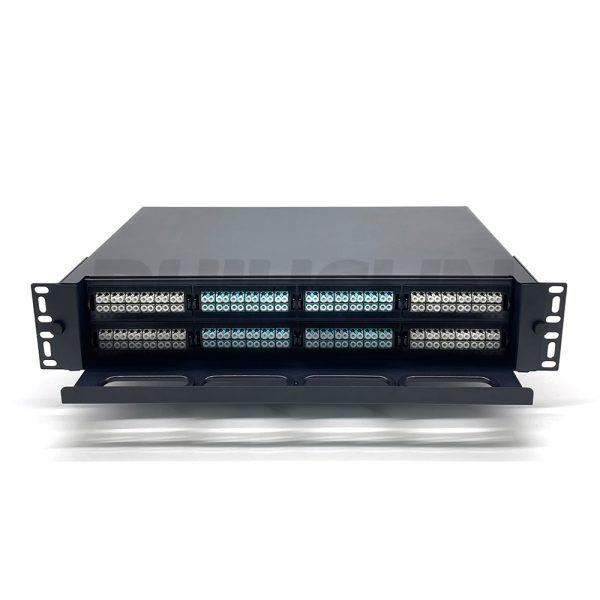

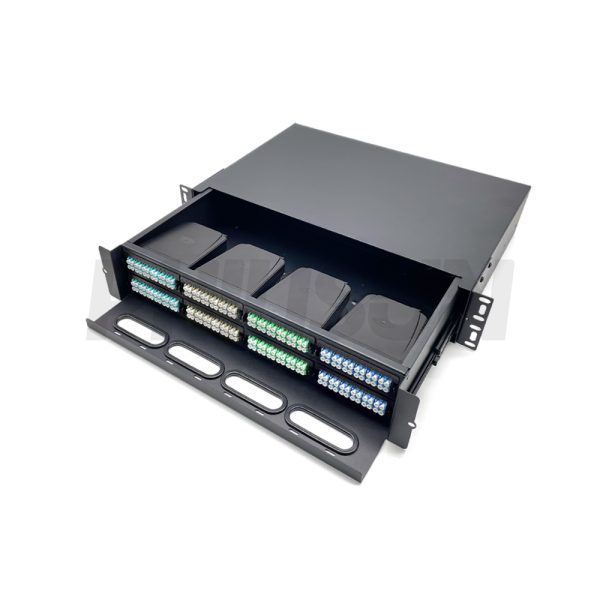

MPO 2U Rack Mount Fiber Patch Panel with 8 Plastic Cassettes(8pcs of 24 Fibers MPO to LC Fiber Patch Cord), 192 Fibers, Sliding Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	192 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Sliding	Overall Dimensions	2U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	8 Plastic cassettes
Breakout Length	0.3m	Patch Cord Type	8pcs of MPO-24LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 1 patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	350mm	Polarity	TYPE A/AF/U/UF
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This 2U Sliding MPO Patch Panel is the ultra-density backbone consolidation unit, achieving a massive 192-fiber capacity from eight MPO-24 inputs. This configuration is crucial for core-to-distribution layer aggregation, supporting 96 dual-fiber channels or an impressive 192 single-fiber bidirectional channels. The sliding chassis ensures all connections are readily accessible, simplifying the deployment and long-term management of high-count MPO trunks into individual LC service ports in large enterprise data centers.

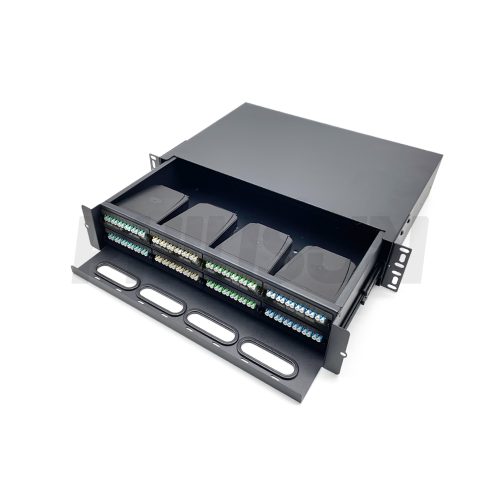

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

*2U Sliding 8 Plastic Cassettes**

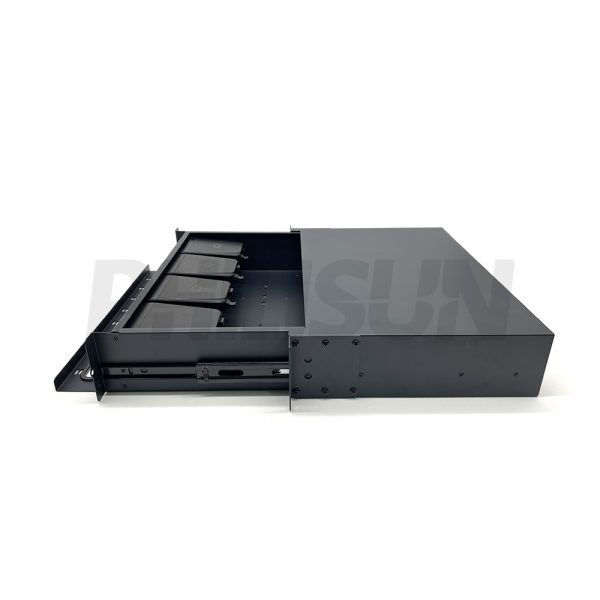

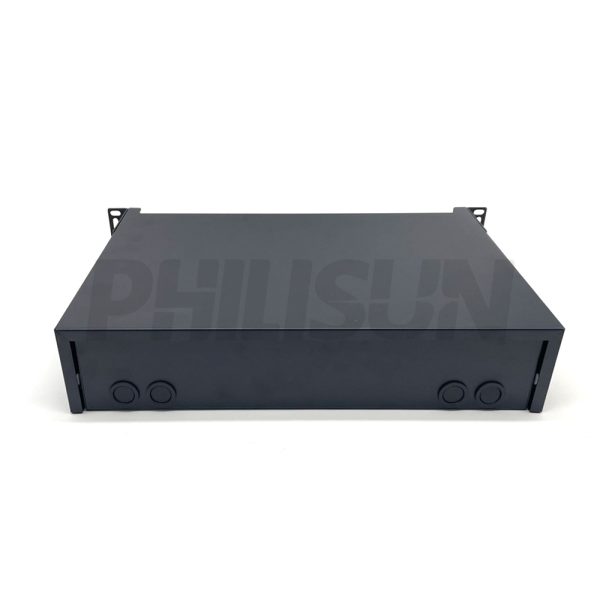

Sliding design	Cassettes installation	Optical cable introduction	High quality
The Enclosure adopts high-quality guide rail, and the tray can be completely extracted from the chassis, which is convenient for jumper docking and optical cable storage operation.	Flexible configuration by using removable modular design, optional adapter panel or MPO cassette module to realize different configuration requirements of ports and meet various wiring schemes.	The rear of the chassis is equipped with a plurality of cable inlet, and the chassis is equipped with a plurality of optical cable winding and fixing points.	Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

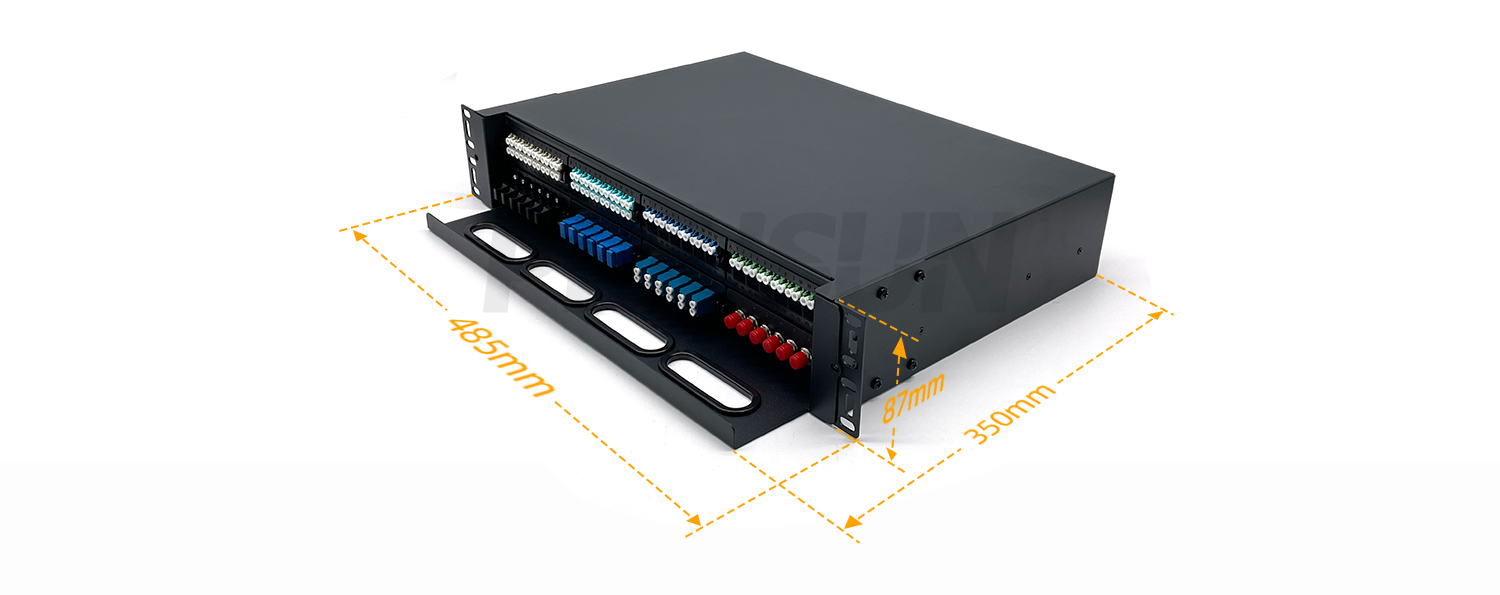

SIZE INFORMATION

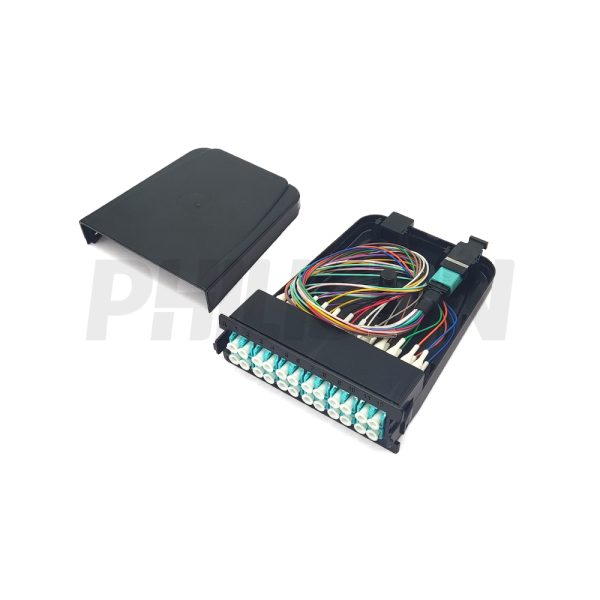

MPO MODULAR CASSETTES INFORMATION

Adapter Panel Order Information
6 Ports Cassette(6 Plugs)		Each Port Can Use LC Duplex Flangeless Adapter
6 Ports Cassette(6 Plugs)		Each Port Can Use SC Simplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use LC Duplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use SC Simplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use LC Duplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use SC Simplex Flangeless Adapter
6 Port Adapter Panel		Each Port Can Use Standard MPO Long-Flange Adapter
12 Port Adapter Panel		Each Port Can Use SC Frootprint MPO Flangeless Adapter
Blank Plate		-
