MPO 3U Rack Mount Fiber Patch Panel with 12 Metal Cassettes(24pcs of 12 Fibers MPO to LC Fiber Patch Cord), 288 Fibers, Sliding Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	288 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Sliding	Overall Dimensions	3U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	12 Metal Cassettes
Breakout Length	0.3m	Patch Cord Type	24pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 2 Patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	230mm	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This extreme-density 3U Sliding MPO Patch Panel is built to manage up to twenty-four MPO-12 inputs, delivering 288 active LC ports via twelve specialized metal cassettes. The sliding design facilitates hassle-free installation and management of the high-port count, supporting 144 dual-fiber channels or 288 single-fiber bidirectional channels. The robust metal modules and accessible chassis make this the superior, future-proof platform for managing the most consolidated and mission-critical backbone links.

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

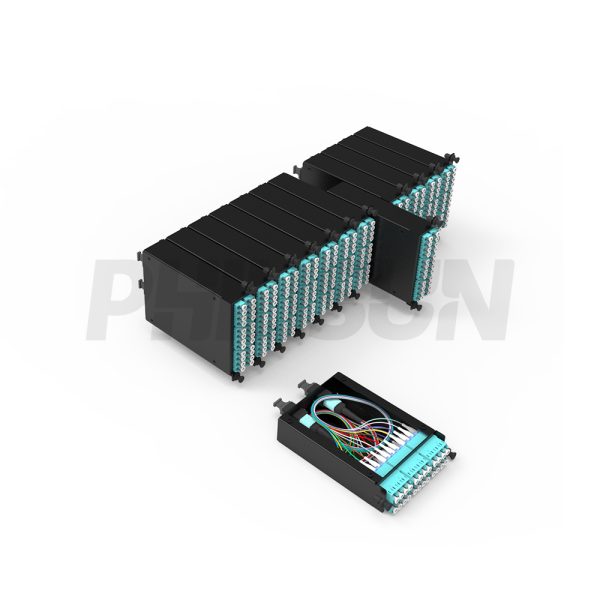

3U Sliding 12*Metal Cassettes

01 Sliding rail design	02 Independent disassembly	03 Cassettes installation
3U rack mount patch panel houses 3 independent sliding trays for 288 fibers, each independent tray has sliding rail to pull smoothly. Each tray is not covered by chassis, easy to insert and plug connectors.	Press the plastic shrapnel to pull it out, which can realize the single layer tray to be disassembled independently; Simply push in when install.	Modular MPO cassettes design can achieve rapid replacement and wiring, and reach max capacity 288 fibers in 12 MPO cassette module.

04 Cable entry	05 Adjustable mounting ears	06 High quality
There are six 30mm cable inlets and cable coiling spaces in the rear of patch panel.According to the dust rubber ring can be cut into the cable and coiled and fixed as required.	The mounting holes of the chassis mounting ears are adjustable to meet the actual wiring requirements of the user.	Using high quality cold rolled steel plate molding, pressure and impact resistance. Electrostatic spraying, uniform and flat, wear-resistant and anticorrosion, beautiful appearance.
