MPO 3U Rack Mount Fiber Patch Panel with 12 Plastic Cassettes(24pcs of 12 Fibers MPO to LC Fiber Patch Cord), 288 Fibers, Fixed Type

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	SM OS2/OM3/OM4/OM5	Fiber Number	288 Fibers
MPO IL	Standard loss/Low loss	Polishing	MPO:PC or APC LC:UPC or APC
Chassis Type	Fixed	Overall Dimensions	3U
Connector Type	Female/Male	RL	≥60dB(SM) ≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	0.9mm	MPO Cassettes	12 Plastic cassettes
Breakout Length	0.3m	Patch Cord Type	24pcs of MPO-12LC
Cable Material	LSZH	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Number of Installation	Each cassettes contains 2 Patch cord
Working Wavelength	1310/1550(SM) 850/1300(MM)	Durability	≥500 times
Depth	355mm	Polarity	TYPE A/AF/B1/B2/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This extreme-density 3U Fixed MPO Patch Panel is built to manage the most complex, massive-scale link aggregation, consolidating twenty-four MPO-12 inputs to deliver 288 active LC ports. This specialized fixed platform securely supports 144 dual-fiber channels or 288 single-fiber bidirectional channels, optimizing space and port density beyond traditional systems. The robust 3U structure provides a highly stable and secure environment for managing up to 24 MPO-12 connections, making it the ultimate backbone aggregation hub.

MPO PATCH PANEL SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

3U Fixed 12*Plastic Cassettes

01 Cassettes installation	02 Cable entry	03 Adjustable mounting ears

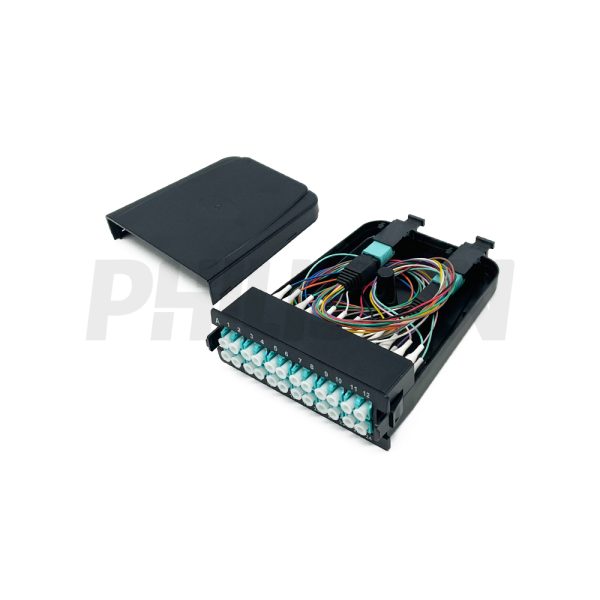

Modular MPO cassettes design can achieve rapid replacement and wiring, and reach max capacity 288 fibers in 12 MPO cassette module.	There are ten 25mm and eight 20mm cable inlets at the rear of the patch panel,two 25mm and two 20mm cable inlets at both lateral sides, waterproof cable gland can be removed as needed.	The mounting holes of the chassis mounting ears are adjustable to meet the actual wiring requirements of the user.

04 Easy to open the upper cover design	05 Door design	06 High quality
The upper cover of the wiring box adopts the door latch locking mode, and the upper cover can be opened without using tools.	The flip-down door design effectively protects the front cabling, preventing interference or damage.	Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

SIZE INFORMATION

MPO MODULAR CASSETTES INFORMATION

Adapter Panel Order Information
6 Ports Cassette(6 Plugs)		Each Port Can Use LC Duplex Flangeless Adapter
6 Ports Cassette(6 Plugs)		Each Port Can Use SC Simplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use LC Duplex Flangeless Adapter
12 Ports Cassette		Each Port Can Use SC Simplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use LC Duplex Flangeless Adapter
Standard Adapter Panel		Each Port Can Use SC Simplex Flangeless Adapter
6 Port Adapter Panel		Each Port Can Use Standard MPO Long-Flange Adapter
12 Port Adapter Panel		Each Port Can Use SC Frootprint MPO Flangeless Adapter
Blank Plate		-
