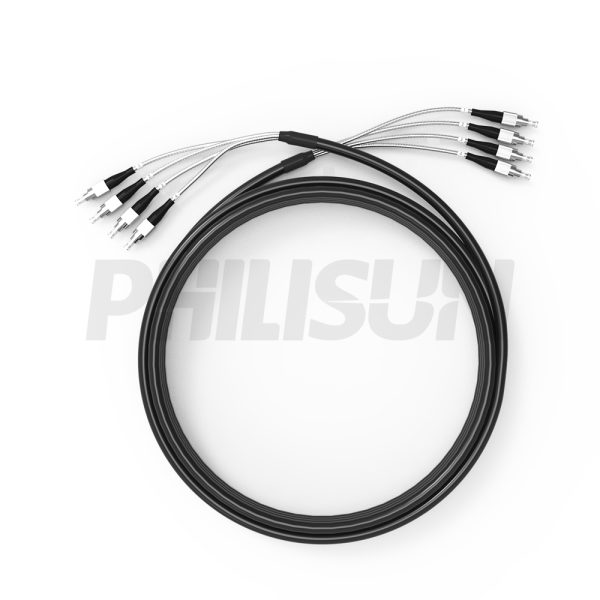

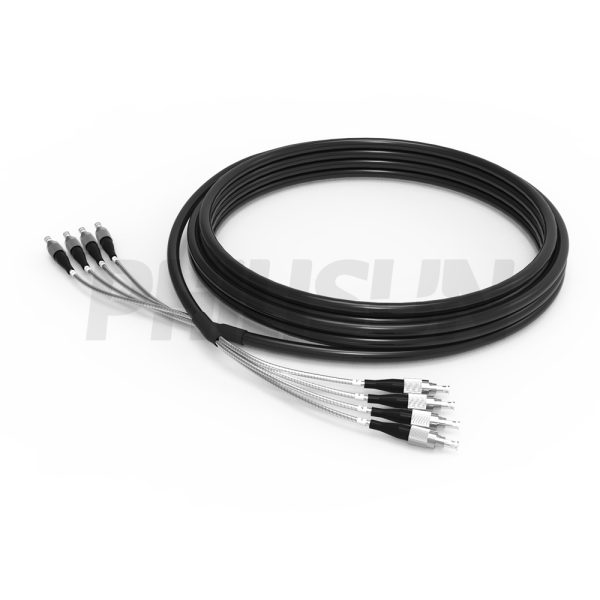

5.0mm, Customized, Indoor Outdoor, Pre-Terminated Armored Fiber Patch Cable, 4 Fibers, Black

Feature a UV Stabilized and Moisture Resistant Outer Jacket
Custom Cable with Pre-terminated Connectors, Breakout Types and Pulling Eye
OD 5.0mm Armored Cable

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector TypeLC/SC/FC/ST/E2000Fiber Count4
Fiber TypeSM OS2/OM3/OM4/OM5Polish TypeUPC or APC
Ferrule TypeGrade A zirconia ceramic ferruleRL≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
IL≤0.3dBInterchangeability≤0.2dB
Repeatability≤0.2dBWorking Wavelength1310/1550(SM)
850/1300(MM)
Waterproof FunctionyesProtection LevelIP67
Matching Cable Outer Diameter5.0mmJacket ColorBlack
Armored MaterialSpiral stainless steelFlame Retardant GradeOFN/OFNR/OFNP
Inner Cable Diameter0.9mmSheath TypeSingle-layer spiral armored
Branch TypeRound Tube/Armored TubeFiber LossSM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Jacket MaterialPVC/LSZH/PUFiber BrandCorning/YOFC
Min.Bending Radius(Short Term)10DMin.bending Radius(Long Term)20D
Operating Temperature-20 to 60℃ (-4 to 140℉)Storage Temperature-20 to 60℃ (-4 to 140℉)



PRODUCT PRESENTATION
The indoor/outdoor pre-terminated fiber patch cord features a multi-core design for easier installation and reliable indoor/outdoor connectivity, including inter-building links. Armored versions with a compact diameter and optional TPU sheath for enhanced flexibility in tight spaces or frequent retraction. Built for durability and bend performance in demanding wiring environments.



PATCH CORD SERIES PRODUCTS

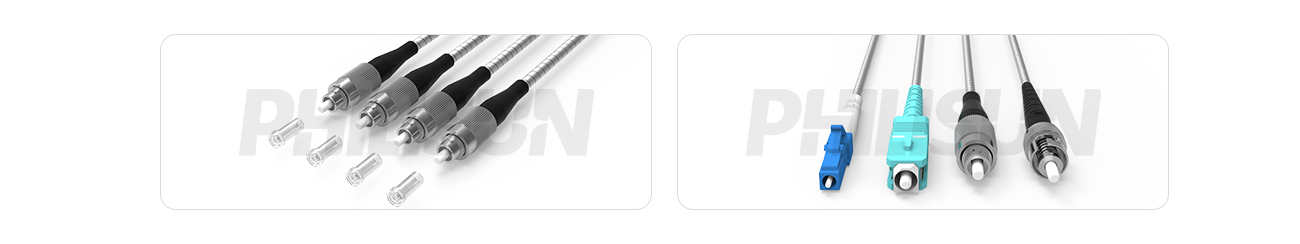

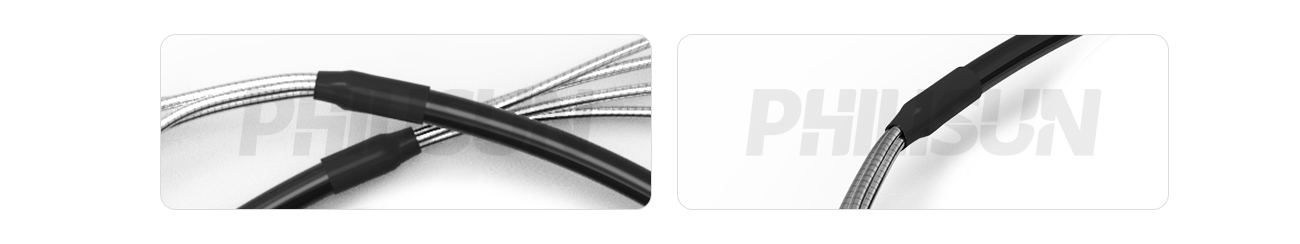

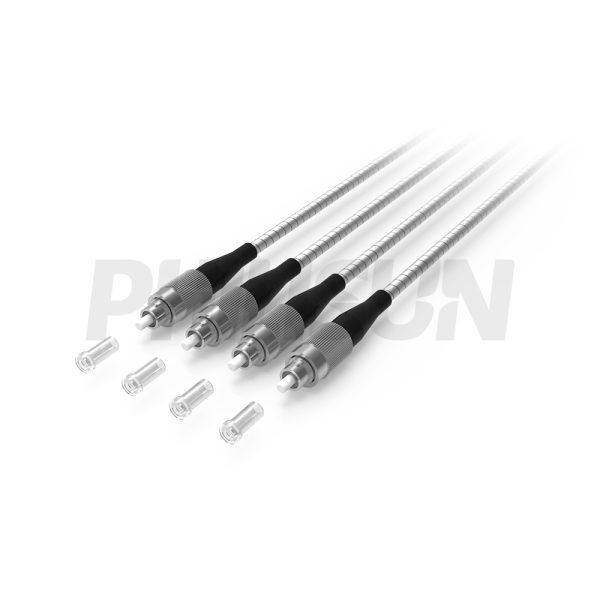

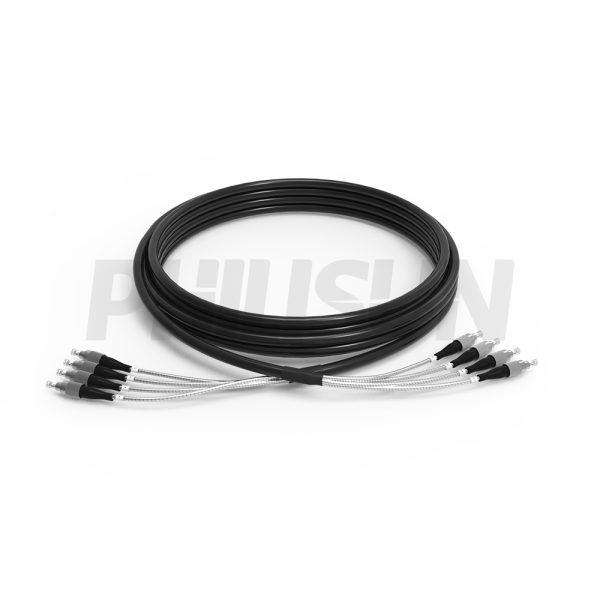

DETAIL DISPLAY



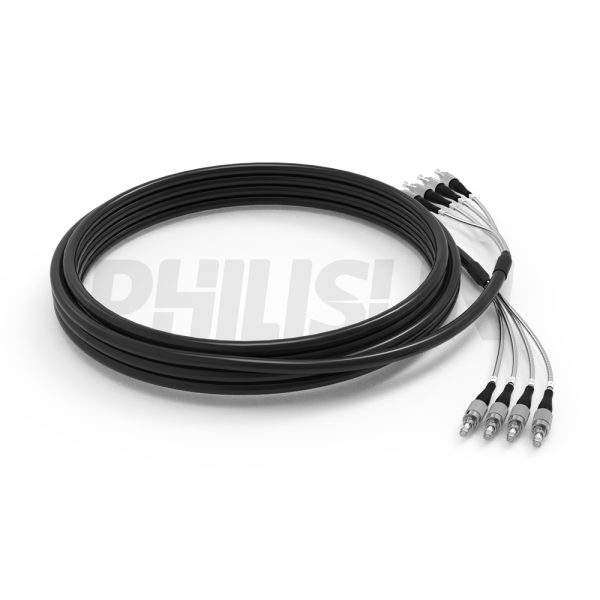

BRANCHING METHOD



FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count1-24
Colored Coating FiberDiameter0.25±0.015mm
ColorBlue/Orange/Green/Brown/Gray/Natural/Red/Black/Yellow/Purple/Pink/Aqua
Loose TubeDiameter1.8±0.05mm
MaterialPBT
ColorNatural
Strength MemberDiameter0.7mm±0.1mm
MaterialSteel
Outer JacketDiameter8.0±0.3mm
MaterialPE
ColorBlack
Mechanical Performance
ItemsSpecifications
Fiber Count1~24
Tension（Long Term）/N600
Tension（Short Term）/N1500
Crush（Long Term）/N/100mm1000
Crush（Short Term）/N/100mm3000
Min. Bend Radius（Dynamic）/mm20D
Min. Bend Radius（Static）/mm10D
Installation Temperature/℃-20～+60
Operating Temperature/℃-40～+70
Storage Temperature/℃-40～+70



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0
