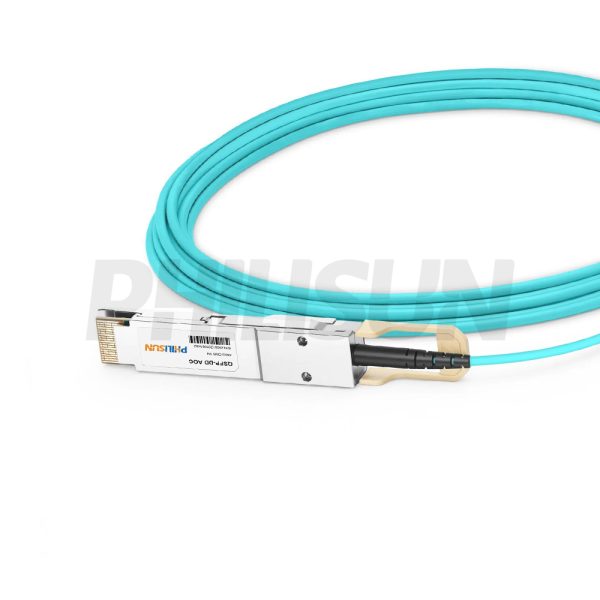

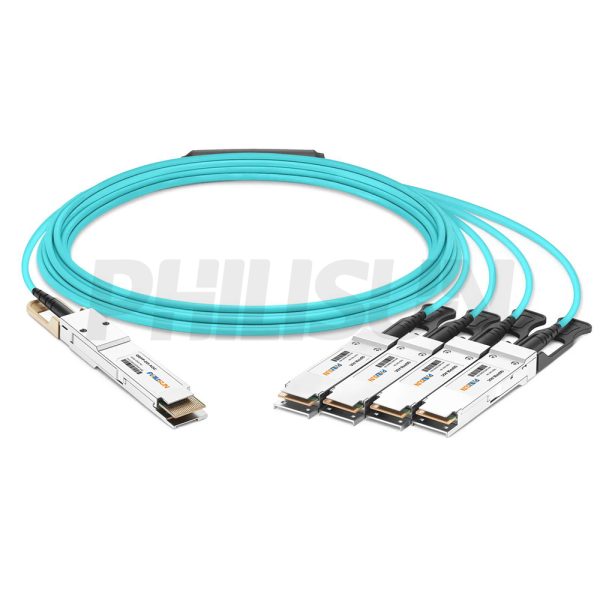

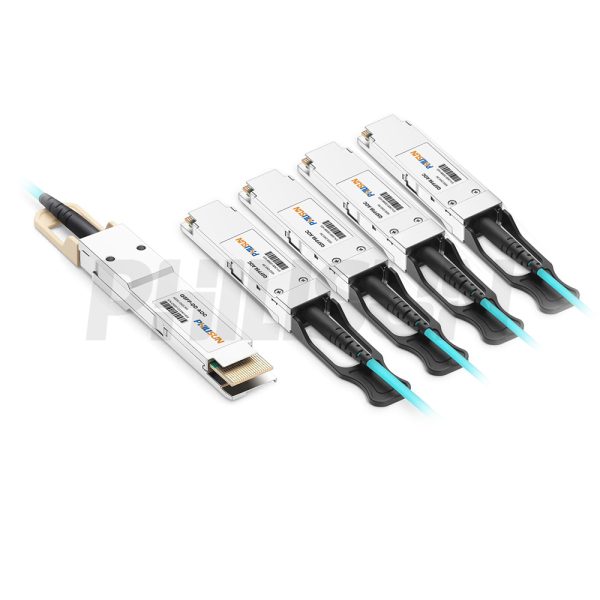

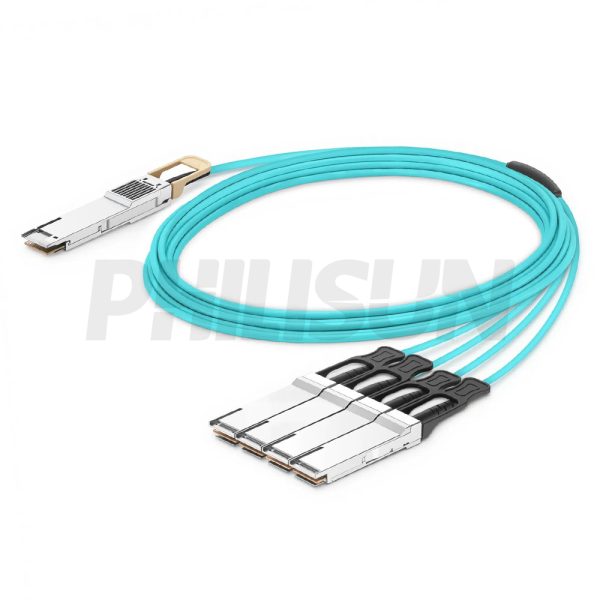

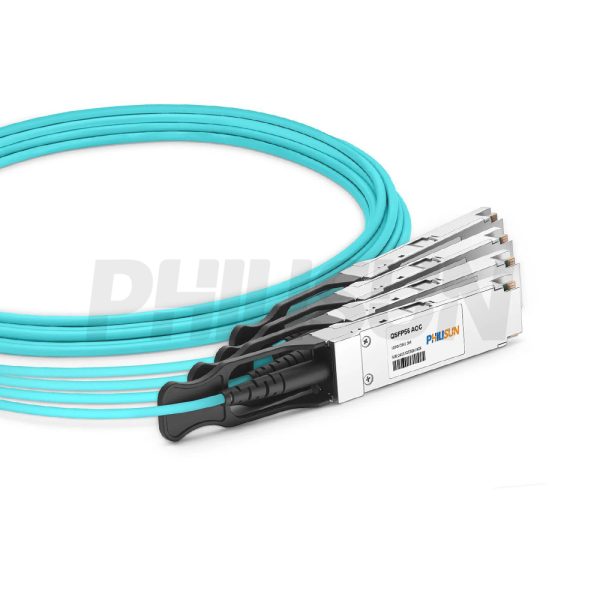

400G QSFP-DD to 4×100G QSFP56 Active Optical Cable(AOC)

SPECIFICATIONS
Cable End Connector A	QSFP-DD	Cable End Connector B	4×QSFP56
Jumper Type	Active Optical Breakout Cable	Data Rate	400G
Aggregate Bit Rate	425Gbps	Lane Bit Rate	53.125Gbps
Number of Channels	8	Single Channel Rate	50G
Array Transmitter	VSCEL	Array Receiver	PIN
Minimum Bend Radius	30mm	Factory Brand	PHILISUN
Center(Operating) Wavelength	850nm	Bit Error Rate	2.4E-4
Fiber Type	OM3 MMF MAX 70m/OM4 MMF MAX 100m	Cable Colour	Aqua
Cable Material	LSZH/OFNP	Cable Length Selection	1-100meter
Safety Certification	TUV/UL/FDA	Application Scenarios	400 Gigabit Ethernet (400GbE)
Protocols	E 802.3cd/OIF-CEI-04.0/QSFP-DD MSA/QSFP-DD-CMIS-Rev4.0/SFF-8024 Rev4.6/IEEE 802.3bs Annex120E/ SFF-8679 Rev1.8/SFF-8665 Rev1.9	DDMI(Commercial)	YES
Supply Voltage	3.3V	Power Dissipation	QSFP-DD:<12.0W QSFP56:<3.5W
Operating Temperature	0 to 70℃ (32 to 158℉)	Storage Temperature	-20 to 85℃ (-4 to 185℉)

PRODUCT PRESENTATION

This 400G QSFP-DD to 4x100G QSFP56 Active Optical Cable (AOC) is a high-density, four-way breakout solution, ideal for maximizing port density by segmenting a single 400G link into four separate 100G channels. It is engineered for seamless integration, complying with major standards including IEEE 802.3cd, QSFP-DD MSA, and SFF-8679. This versatile AOC facilitates high-throughput connectivity for essential data center architectures, supporting links from Switch to Switch and high-speed data transfer between Switch to GPU nodes in HPC clusters. It is a cost-effective alternative to multiple short-reach transceivers.

AOC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Unit	Min.	Max.
Storage Temperature Range	TS	℃	-20	+85
Relative Humidity	RH	%	0	85
Power Supply Voltage	VCC	V	-0.5	+4.0

Recommended Operating Conditions
Parameter	Symbol	Unit	Min.	Typ.	Max.
Operating Case Temperature Range	Tca	℃	0	–	70
Power Supply Voltage	VCC	V	3.135	3.3	3.465
Bit Rate (per Channel )	BR	GBd	–	26.5625	–
Humidity	Rh	%	5	–	85
Fiber Bend Radius	Rb	cm	3	–	–

Electric Specifications (400G QSFP-DD and 100G QSFP56)
Parameter	Symbol	Unit	Min.	Typ.	Max.	Notes
Supply Voltage	VCC VCC3.3-Tx VCC3.3-Rx	V	3.135	3.3	3.465	–
Power Consumption ( QSFP-DD)	Pc	W	–	–	11	Per-end
Power Consumption ( QSFP56)					5
Transceiver Power-on Initialize Time	–	ms	–	–	2000	–
Transmitter
Differential Peak-to-peak input Voltage Tolerance	–	mV	900	–	–	–
Differential Termination Mismatch	–	–	–	–	10%	–
Differential Input Return Loss(SDD11)	–	dB	–	–	See CEI-56G-VSR	–
Common-mode to Differential Conversion and Differential to Common-mode Conversion(SCD11, SDC11)	–	dB	–	–	See CEI-56G-VSR	–
Receiver
Differential Peak-to-peak Output Voltage	–	mV	–	–	900	–
DC Common Mode Voltage	Vcm	mV	-0.35	–	2.85	–
AC Common Mode Noise, RMS	–	mV	–	–	17.5	–
Differential Termination Mismatch	–	%	–	–	10	–
Differential Output Return Loss(SDD22)	–	dB	–	–	See CEI-56G-VSR	–
Common-mode to Differential Conversion and Differential to Common-mode Conversion(SCD22, SDC22)	–	dB	–	–	See CEI-56G-VSR	–
IIC communication
IIC Clock Frequency (QSFP-DD)	–	KHZ	–	400	1000	–
IIC Clock Frequency (QSFP56)	–		–	100		–
Clock Stretching	–	us	–	–	500	–
Data Hold Time	–	ns	–	–	–	–

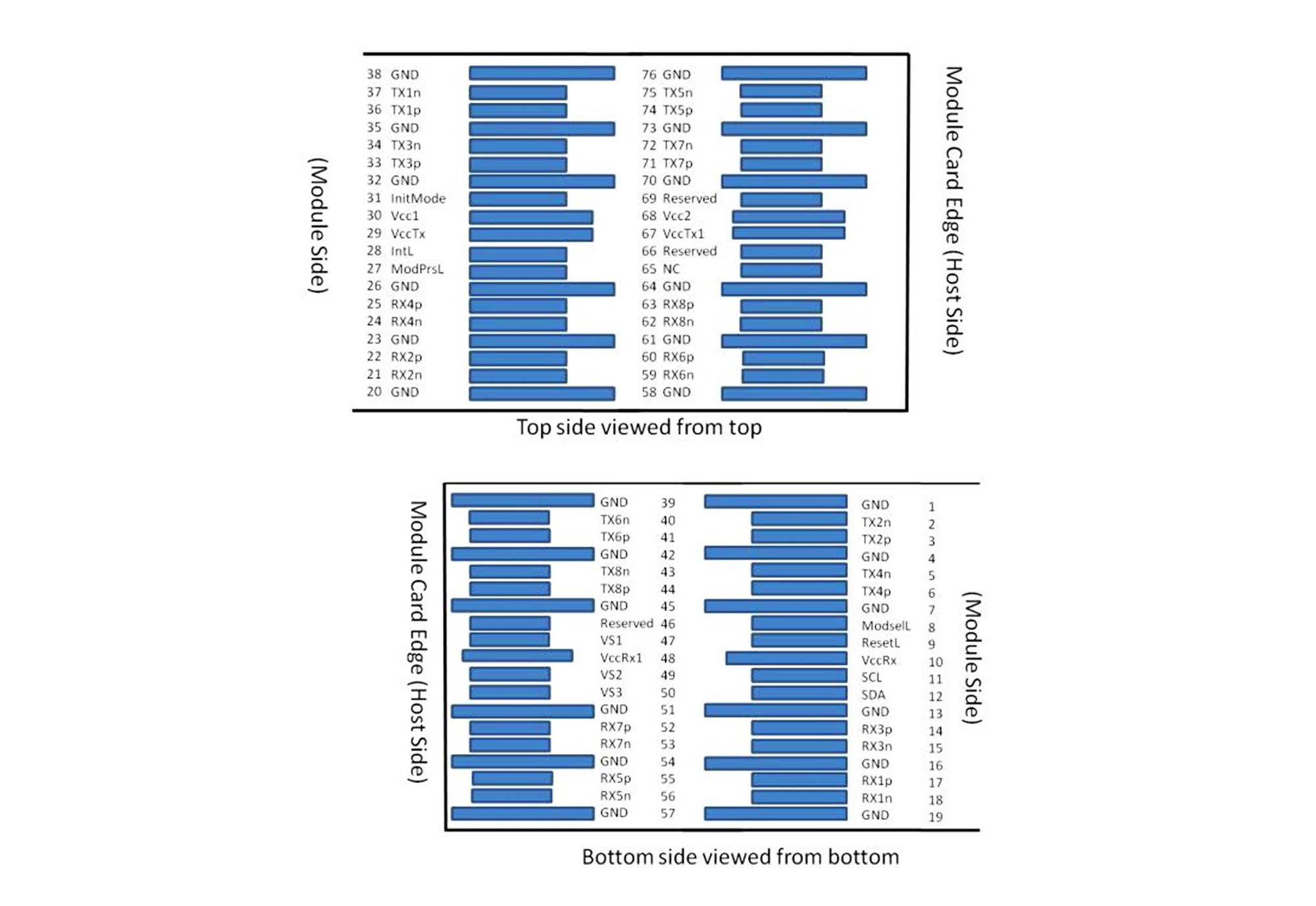

QSFP-DD PIN DESCRIPTIONS

PIN	Logic	Symbol	Description	Note
1	–	GND	Ground	1
2	CML-I	Tx2n	Transmitter Inverted Data Input	–
3	CML-I	Tx2p	Transmitter Non-Inverted Data Output	–
4	–	GND	Ground	1
5	CML-I	Tx4n	Transmitter Inverted Data Input	–
6	CML-I	Tx4p	Transmitter Non-Inverted Data Output	–
7	–	GND	Ground	1
8	LVTTL-I	ModSelL	Module Select	–
9	LVTTL-I	ResetL	Module Reset	–
10	–	VccRx	3.3V Power Supply Receiver	2
11	LVCOMS-I/O	SCL	2-Wire Serial Interface Clock	–
12	LVCOMS-I/O	SDA	2-Wire Serial Interface Data	–
13	–	GND	Ground	1
14	CML-O	Rx3p	Receiver Non-Inverted Data Output	–
15	CML-O	Rx3n	Receiver Inverted Data Output	–
16	–	GND	Ground	1
17	CML-O	Rx1p	Receiver Non-Inverted Data Output	–
18	CML-O	Rx1n	Receiver Inverted Data Output	–
19	–	GND	Ground	1
20	–	GND	Ground	1
21	CML-O	Rx2n	Receiver Inverted Data Output	–
22	CML-O	Rx2p	Receiver Non-Inverted Data Output	–
23	–	GND	Ground	1
24	CML-O	Rx4n	Receiver Inverted Data Output	–
25	CML-O	Rx4p	Receiver Non-Inverted Data Output	–
26	–	GND	Ground	1
27	LVTTL-O	ModPrsL	Module Present	–
28	LVTTL-O	IntL	Interrupt	–
29	–	VCCTx	3.3 V Power Supply transmitter	2
30	–	VCC1	3.3 V Power Supply	2
31	LVTTL-I	InitMode	Initialization mode; In legacy QSFP applications, the IntiModepad is called LPMode	–
32	–	GND	Ground	1
33	CML-I	Tx3p	Transmitter Inverted Data Input	–
34	CML-I	Tx3n	Transmitter Non-Inverted Data Output	–
35	–	GND	Ground	1
36	CML-I	Tx1p	Transmitter Inverted Data Input	–
37	CML-I	Tx1n	Transmitter Non-Inverted Data Output	–
40	CML-I	Tx6n	Transmitter Inverted Data Input	–
41	CML-I	Tx6p	Transmitter Non-Inverted Data Output	–
42	–	GND	Ground	1
43	CML-I	Tx8n	Transmitter Inverted Data Input	–
44	CML-I	Tx8p	Transmitter Non-Inverted Data Output	–
45	–	GND	Ground	1
46	–	Reserved	For Future Use	3
47	–	VS1	Module Vendor Specific 1	3
48	–	VCCRx1	3.3V Power Supply Receiver	2
49	–	VS2	Module Vendor Specific 2	3
50	–	VS3	Module Vendor Specific 3	3
51	–	GND	Ground	1
52	CML-0	Rx7p	Receiver Non-Inverted Data Output	–
53	CML-0	Rx7n	Receiver Inverted Data Output	–
54	–	GND	Ground	1
55	CML-0	Rx5p	Receiver Non-Inverted Data Output	–
56	CML-0	Rx5n	Receiver Inverted Data Output	–
57	–	GND	Ground	1
58	–	GND	Ground	1
61	–	GND	Ground	1
62	CML-0	Rx8n	Receiver Inverted Data Output	–
63	CML-0	Rx8p	Receiver Non-Inverted Data Output	–
64	–	GND	Ground	1
65	–	NC	Not Connect	3
66	–	Reserved	For Future Use	3
67	–	VCCTx 1	3.3 V Power Supply Transmitter	2
68	–	VCC2	3.3 V Power Supply	2
69	–	Reserved	For Future Use	3
70	–	GND	Ground	1
71	CML-I	Tx7p	Transmitter Inverted Data Input	–
72	CML-I	Tx7n	Transmitter Non-Inverted Data Output	–
73	–	GND	Ground	1
74	CML-I	Tx5p	Transmitter Inverted Data Input	–
75	CML-I	Tx5n	Transmitter Non-Inverted Data Output	–
76	–	GND	Ground	1
Notes: 1. QSFP-DD uses common ground (GND) for all signals and supply (power). All the common within the QSFP-DD module and all module voltages are referenced to this potential unless otherwise noted. Connected theses directly to the host board signal common ground plane.2. VCCRx, VCCRx1, VCC1, VCC2, VCCTx, and VCCTx1 shall be applied concurrently. Requirements defined for the host side of the Host Card Edge Connector are listed in Table 4. VCCRx, VCCRx1, VCC 1, VCC2, VCCTx, and VCCTx1 may be internally connected within the module in anycombination. The connector Vcc pins are each rated for a maximum current of 1000mA. 3. All Vendor Specific, Reserved and No Connect pins may be terminated with 50 ohms to ground on the host. Pad 65 (No Connect) shall be left unconnected within the module. Vendor Specific and Reserved pads shall have an impedance to GND that is greater than 10 kOhms and less than 100pF.

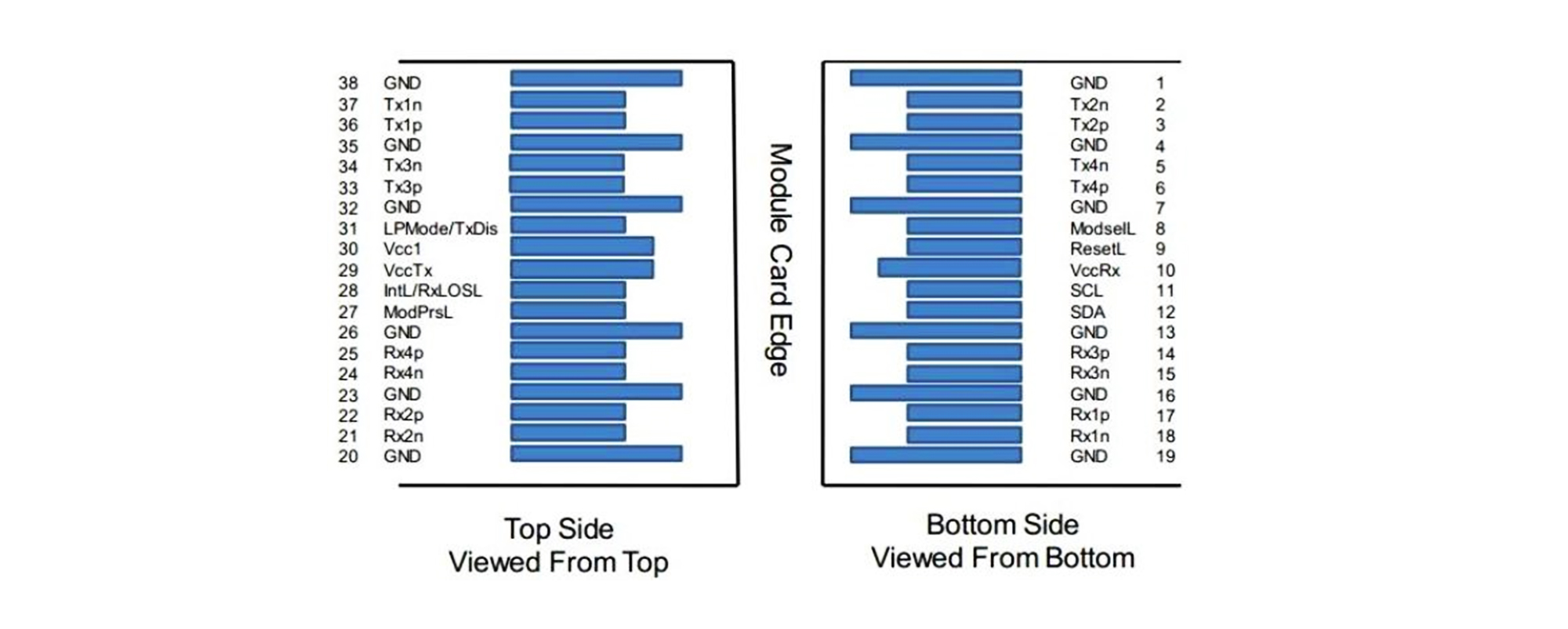

QSFP56 PIN DESCRIPTIONS

PIN	Logic	Symbol	Description	Note
1	–	GND	Ground	1
2	CML-I	Tx2n	Transmitter Inverted Data Input	–
3	CML-I	Tx2p	Transmitter Non-Inverted Data Output	–
4	–	GND	Ground	1
5	CML-I	NA	NAt	–
6	CML-I	NA	NA	–
7	–	GND	Ground	1
8	LVTTL-I	ModSelL	Module Select	–
9	LVTTL-I	ResetL	Module Reset	–
10	–	VCCRx	3.3V Power Supply Receiver	2
11	LVCOMS-I/O	SCL	2-Wire Serial Interface Clock	–
12	LVCOMS-I/O	SDA	2-Wire Serial Interface Data	–
13	–	GND	Ground	1
14	CML-O	NA	NA	–
15	CML-O	NA	NA	–
16	–	GND	Ground	1
17	CML-O	Rx1p	Receiver Non-Inverted Data Output	–
18	CML-O	Rx1n	Receiver Inverted Data Output	–
19	–	GND	Ground	1
20	–	GND	Ground	1
21	CML-O	Rx2n	Receiver Inverted Data Output	–
22	CML-O	Rx2p	Receiver Non-Inverted Data Output	–
23	–	GND	Ground	1
24	CML-O	NA	NA	–
25	CML-O	NA	NA	–
26	–	GND	Ground	1
27	LVTTL-O	ModPrsL	Module Present	–
28	LVTTL-O	IntL/RxLOSL	Interrupt. Optionally configurable as RxLOSL Via the Management Interface (SFF-8636)	–
29	–	VCCTx	+3.3 V Power Supply transmitter	2
30	–	VCC1	+3.3 V Power Supply	2
31	LVTTL-I	LPMode/TxDis	Low Power Mode.Optionally Configurable as TxDis Via the Management Interface (SFF-8636).	–
32	–	GND	Ground	1
33	CML-I	NA	NA	–
34	CML-I	NA	NA	–
35	–	GND	Ground	1
36	CML-I	Tx1p	Transmitter Inverted Data Input	–
37	CML-I	Tx1n	Transmitter Non-Inverted Dataoutput	–
38	–	GND	Ground	1
Notes: 1. GND is the symbol for signal and supply (power) common for the QSFP28 module. All are common within the module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane. 2. VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown in Figure 2 below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the module in any combination. The connector pins are each rated for a maximum current of 1000mA.
