SPECIFICATIONS
Cable End Connector A	OSFP(FIN)	Cable End Connector B	2×QSFP112
Jumper Type	Active Optical Breakout Cable	Data Rate	800G
Aggregate Bit Rate	800Gbps	Lane Bit Rate	100Gbps
Number of Channels	8	Single Channel Rate	100G
Minimum Bend Radius	5X Cable OD -Single, 10X Cable OD - Repeated	Factory Brand	PHILISUN
Attenuation	28AWG:10dB/7m maximum 30AWG:8.4dB/5.5m maximum	Bit Error Rate	≤10-12
Shield	Braid/Foil	Wire AWG	28AWG/30AWG
Cable Type	Passive Twinax	Cable OD	30AWG: 10.8mm 28AWG: 8.1mm
Cable Colour/Material	Black PVC(OFNR)	Cable Length Selection	0.5-2meter
Protocols	OSFP MSA/IEEE 802.3cK/CMIS Rev 5.0/QSFP112 MSA	Application Scenarios	800Gigabit Ethernet (800GbE)
Supply Voltage	3.3V	Power Dissipation	<0.1W
Operating Temperature	0 to 70℃ (32 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

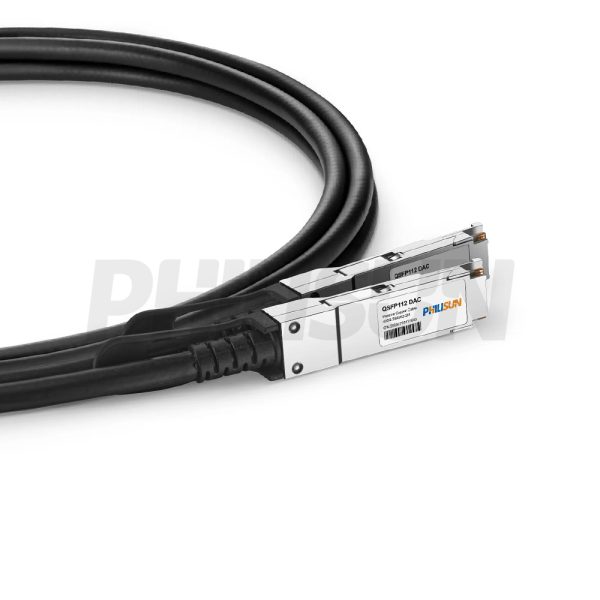

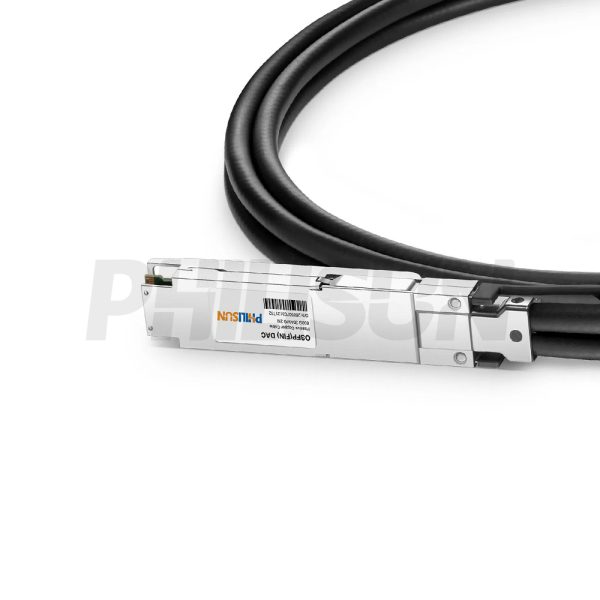

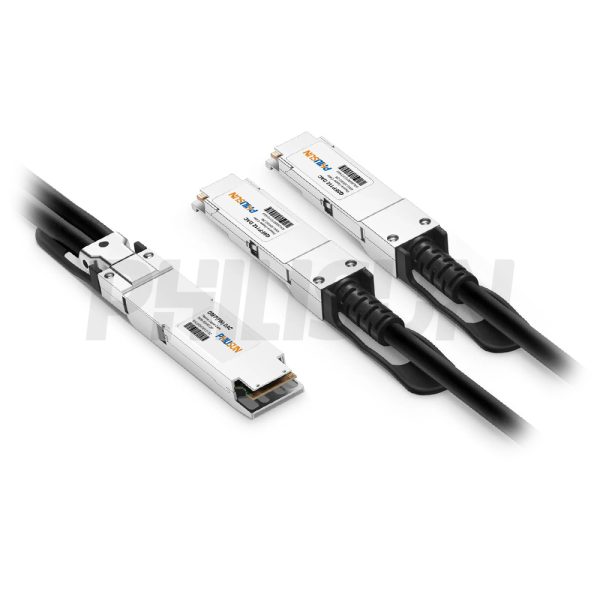

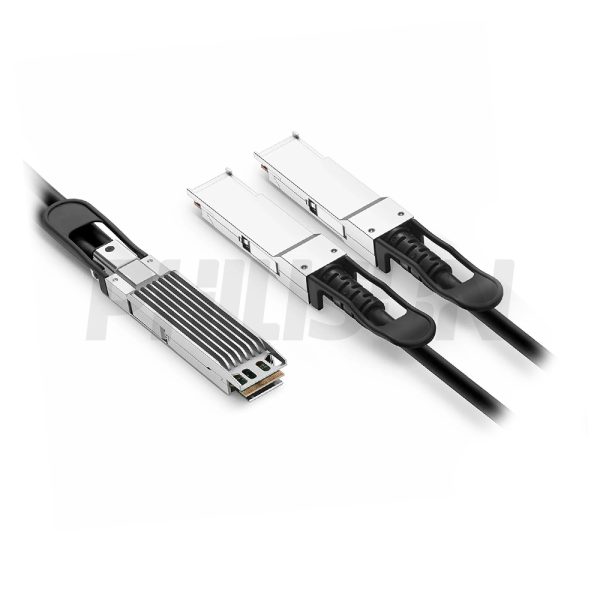

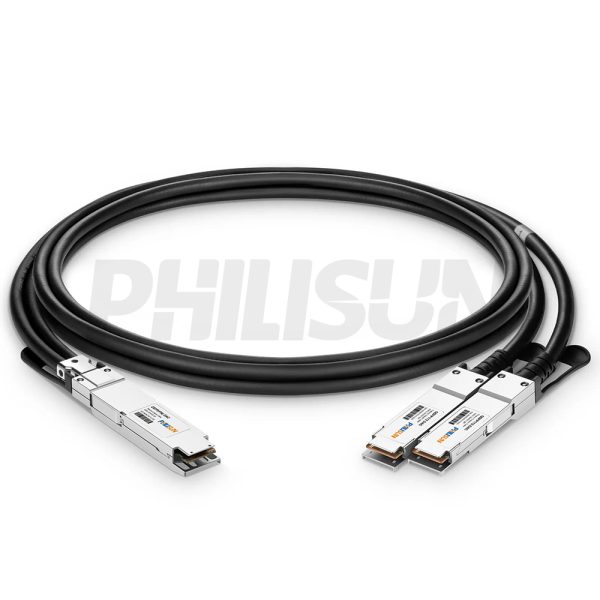

PRODUCT PRESENTATION

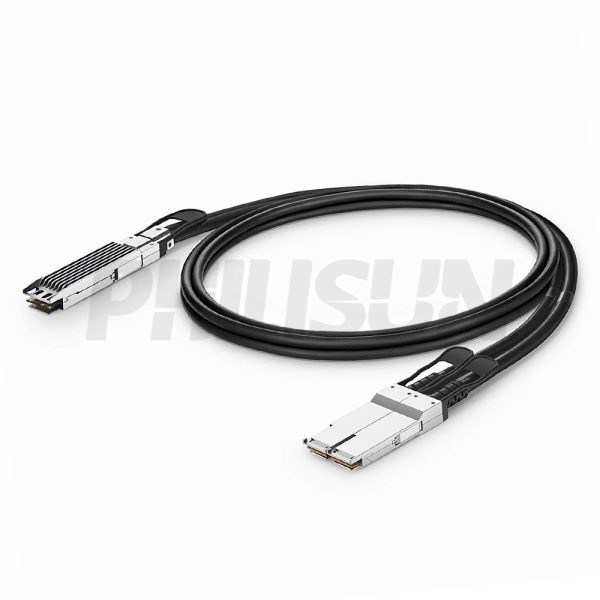

The PHILISUN OSFP (FIN) to 2×QSFP112 is a 2×400Gb/s dual-port active electrical breakout cable, designed with a heatsink-equipped OSFP connector to dual 400G QSFP112 connectors. This product fully complies with OSFP MSA Rev 5.0, IEEE 802.3ck, CMIS 5.0, and SFF-8679 standards.Integrating active components and retimer chips, the AEC cable effectively compensates for signal attenuation during high-speed PAM4 transmission. It delivers reliable, low-power, and low-latency plug-and-play connectivity at up to 800Gbps over a maximum distance of 5 meters.It is ideally suited for inter-rack connections in telecommunications and data center environments, providing an optimal balance of performance and efficiency for high-density infrastructure deployments.

DAC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Electrical Performance Requirements
Items	Test Condition	Specification
Current	–	0.5A per contact
Voltage	–	30v DC per contact
LLCR	EIA 364-23,20mVdc,100mA	less than 2 ohms.
Continuity	Verify the continuous electrical path	No open, short, or high resistance.

SI Requirements(only reference)
Item	Test Condition	Notes
SDD21& SDD12	≤19.75dB Min. @26.56GHz; ≥11.0dB Max. @26.56GHz;	From 0.01GHz to 26.56GHz
ERL	Minimum cable assembly ERL(*): ≥8.25dB	/
SCD12-SDD12 SCD21-SDD21	≥10 0.05GHz≤ f< 12.89GHz ≥14-0.3108f 12.89GHz≤ f≤ 40GHz	(up to 40GHz)

Mechanical Performance Requirements
Items	Test Condition	Specification
Mating Forces	A rate of 10mm per minute	OSFP<40N
Un-mating Forces	A rate of 10mm per minute	OSFP<30N
Latch Strength	Pull to separate module from cage，Test with connector, cage& module(latch engaged)	Minimum of an125N force
Bulk Cable Retention in Module	Pull to separate bulk cable from module, Test with cable assembly only	Minimum of an 90N force
Wire Flex	Flex cable 180 ° for 10 cycles atX/Y axis, 20times/minutes,with an1kg suspended weight.Type CEIA364-41,test conditionI	No microsecond discontinuitiesare allowed.
Durability	Perform 50 unplug/plugcycles	No evidence of physical damage
Cable Minimum Bend Radius	Min.bending radius allowed: repeated 10Xø . single 5Xø	1.No physical damage 2.Verify continuity and SI

Pin Definition

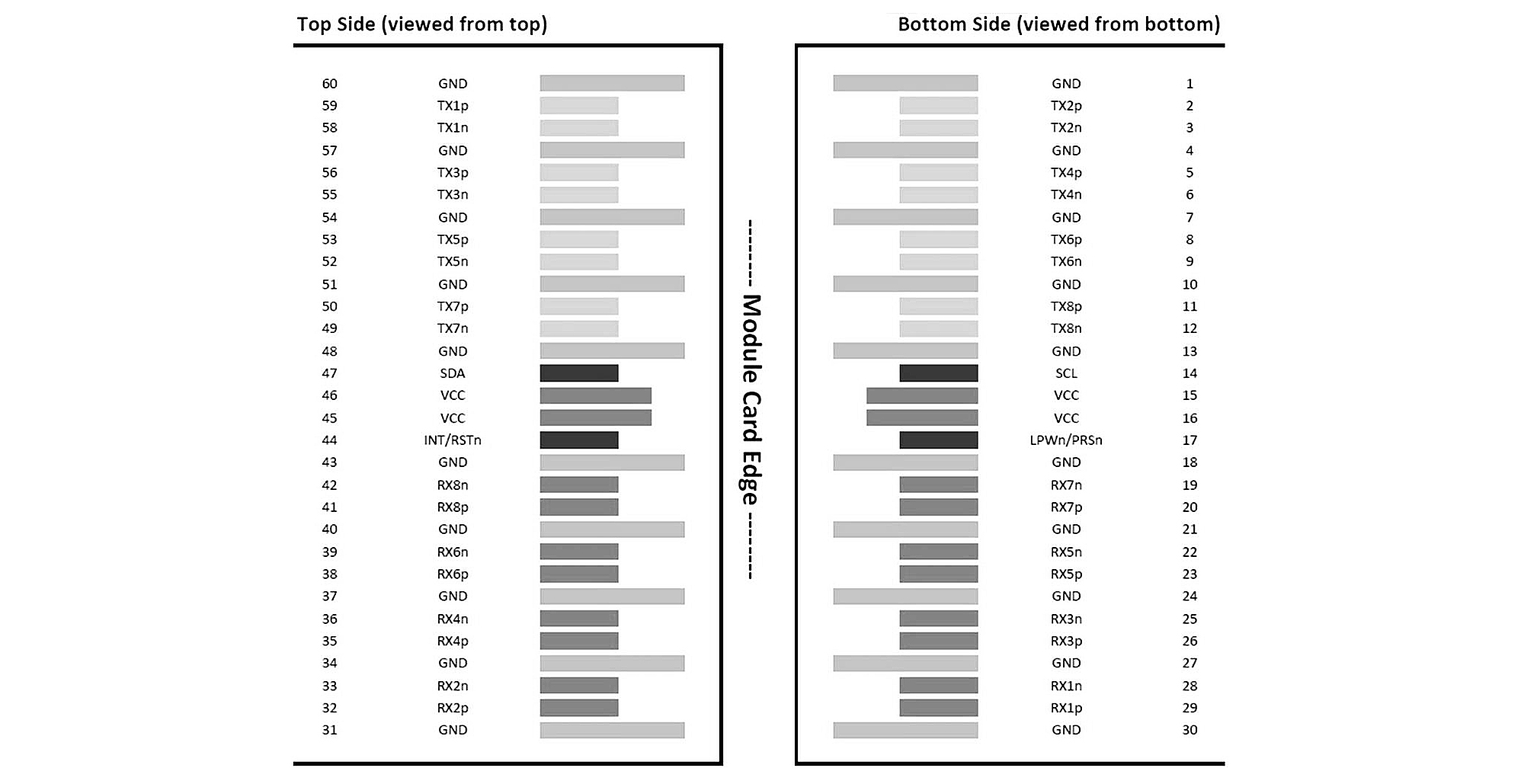

OSFP pin definitions as OSFP MSA defined

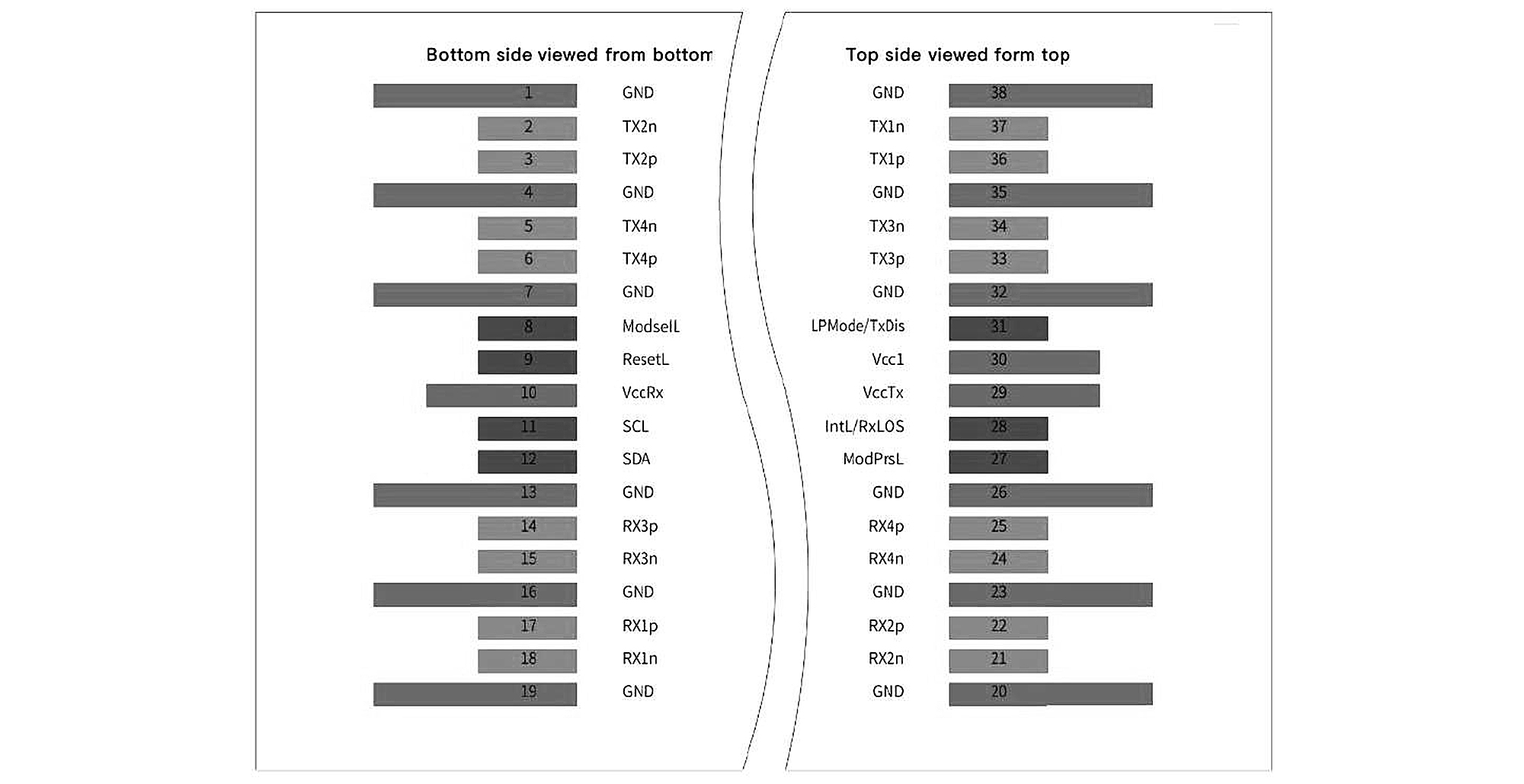

QSFP112 pin definitions as QSFP112 MSA defined

Wire Connction

Parameter	P1 (OSFP)		P2 (QSFP)
	Pin	Signal	Pin	Signal
1	28	RX1n	37	TX1n(QSFP1)
	29	RX1p	36	TX1p(QSFP1)
2	59	TX1p	17	RX1p(QSFP1)
	58	TX1n	18	RX1n(QSFP1)
3	33	RX2n	2	TX2n(QSFP1)
	32	RX2p	3	TX2p(QSFP1)
4	2	TX2p	22	RX2p(QSFP1)
	3	TX2n	21	RX2n(QSFP1)
5	25	RX3n	34	TX3n(QSFP1)
	26	RX3p	33	TX3p(QSFP1)
6	56	TX3n	14	RX3p(QSFP1)
	55	TX3n	15	RX3n(QSFP1)
7	36	RX4n	5	TX4n(QSFP1)
	35	RX4p	6	TX4p(QSFP1)
8	5	TX4p	25	RX4p(QSFP1)
	6	TX4n	24	RX4n(QSFP1)
9	22	RX5n	37	TX1n(QSFP2)
	23	RX5p	36	TX1p(QSFP2)
10	53	TX5p	17	RX1p(QSFP2)
	52	TX5n	18	RX1n(QSFP2)
11	39	RX6n	2	TX2n(QSFP2)
	38	RX6p	3	TX2p(QSFP2)
12	8	TX6p	22	RX2p(QSFP2)
	9	TX6n	21	RX2n(QSFP2)
13	19	RX7n	34	TX3n(QSFP2)
	20	RX7p	33	TX3p(QSFP2)
14	50	TX7p	14	RX3p(QSFP2)
	49	TX7n	15	RX3n(QSFP2)
15	42	RX8n	5	TX4n(QSFP2)
	41	RX8p	6	TX4p(QSFP2)
16	11	TX8p	25	RX4p(QSFP2)
	12	TX8n	24	RX4n(QSFP2)
