SPECIFICATIONS
Cable End Connector A	OSFP(FIN)	Cable End Connector B	4×QSFP112
Jumper Type	Active Optical Breakout Cable	Data Rate	800G
Aggregate Bit Rate	850Gbps	Lane Bit Rate	106.25Gbps
Number of Channels	8	Single Channel Rate	100G
Minimum Bend Radius	5X Cable OD -Single, 10X Cable OD - Repeated	Factory Brand	PHILISUN
Attenuation	28AWG:10dB/7m maximum 30AWG:8.4dB/5.5m maximum	Bit Error Rate	≤10-12
Shield	Braid/Foil	Wire AWG	28AWG/30AWG
Cable Type	Passive Twinax	Cable OD	30AWG:5.2mm 28AWG: 6.2mm
Cable Colour/Material	Black PVC(OFNR)	Cable Length Selection	0.5-2meter
Protocols	OSFP MSA/QSFP112 MSA/CMIS v5.0/ IEEE 802.3ck	Application Scenarios	800/200Gigabit Ethernet (800/200GbE)
Supply Voltage	3.3V	Power Dissipation	<0.1W
Operating Temperature	0 to 70℃ (32 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

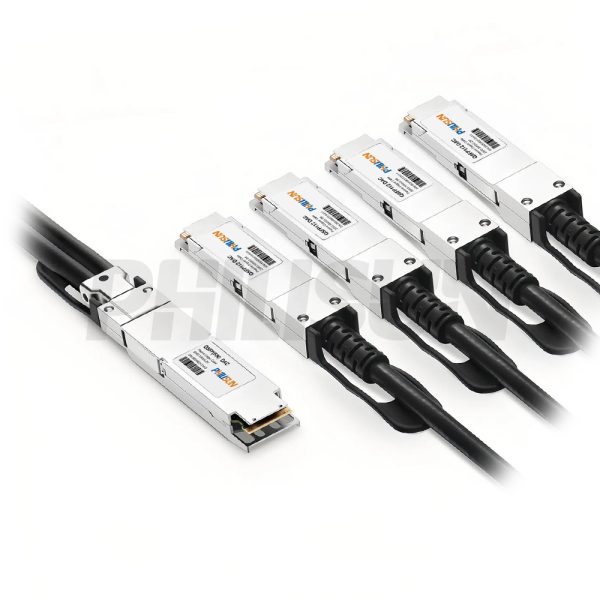

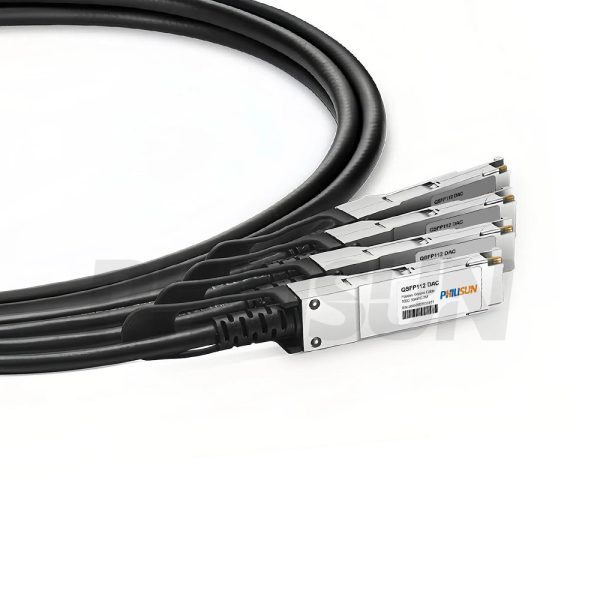

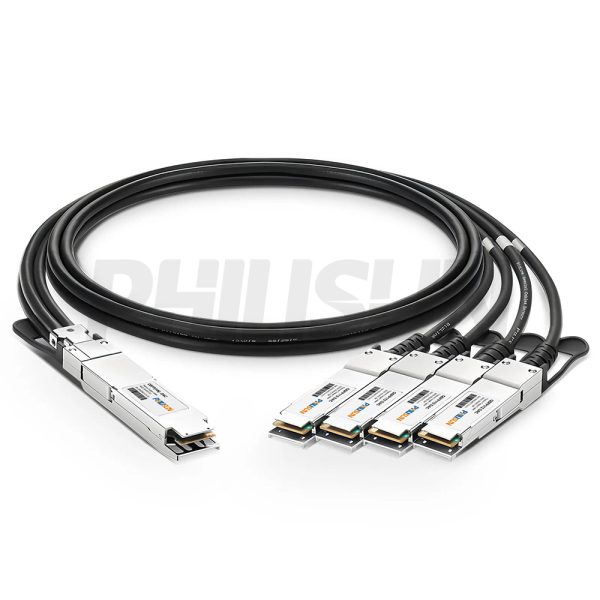

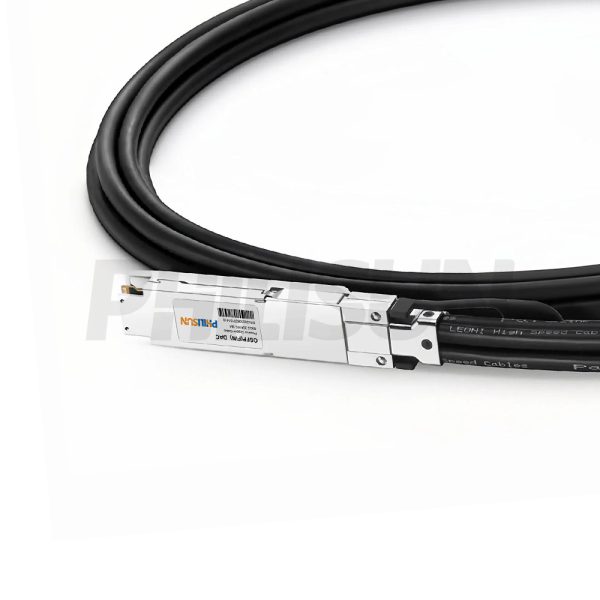

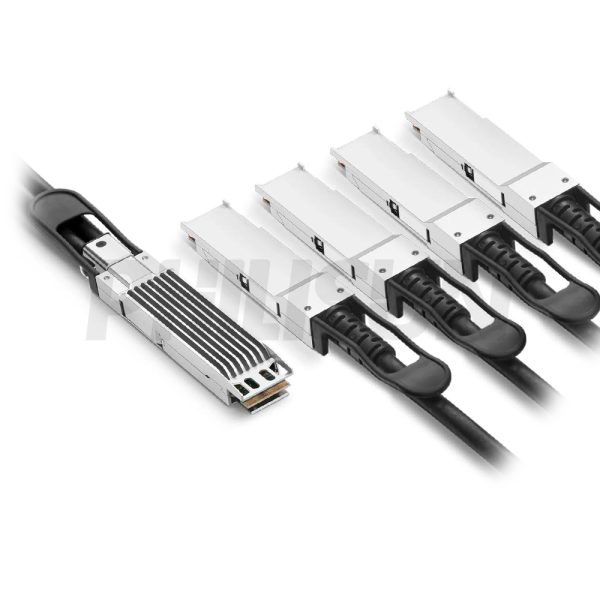

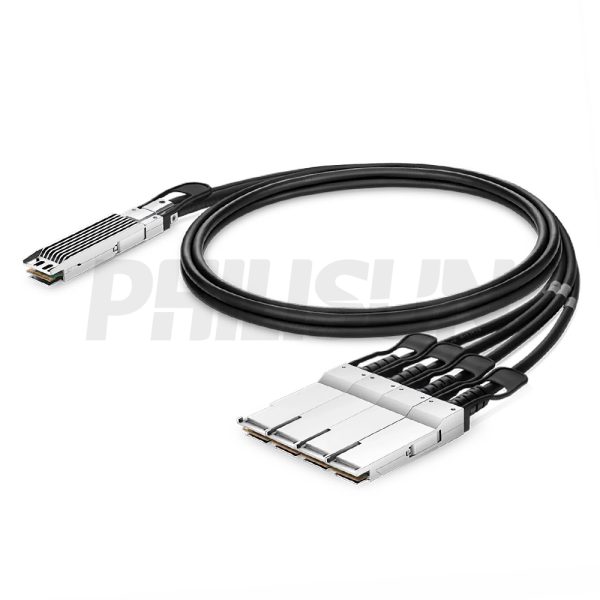

The PHILISUN 800G OSFP(FIN) to 4×200G QSFP112 passive high-speed cable leverages passive twinax copper transmission to deliver stable, high-performance links with no external power required. It fully complies with OSFP MSA, QSFP112 MSA, IEEE 802.3ck, and CMIS v5.0 specifications. Engineered with one finned 800G OSFP port for switch connectivity and four 200G QSFP112 ports for network interface cards (NICs) on the opposing end, it enables seamless 800G-to-4×200G breakout.Featuring a simplified design and minimal component count, this passive DAC solution achieves the lowest cost, ultra-low latency, and near-zero power consumption for high-speed interconnections. It is optimized for short-range links in telecom infrastructure and data centers, delivering a highly efficient, energy-saving, and cost-effective connectivity solution.

DAC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameters	Symbol	Min.	Max .	Unit
Storage Temperature	Ts	-40	85	℃
Operating Case Temperature	Tcase	0	70	℃
Power Supply Voltage	VCC	3.315	3.465	V
Relative Humidity	RH	–	85	%

Recommended Operating Conditions
Item	Test Condition	Specification
Current	–	0.5A per contact
Voltage	–	30v DC per contact
LLCR	EIA 364-23, 20mVdc, 100mA	less than 2 ohms
Continuity	Verify the continuous electrical path	No open, short, or high resistance

SI Requirements
Item	Specification	Notes
SDD21&SDD12	≤19.75 dB Min. @26.56 GHz; ≥ 11.0 dB max. @26.56GHz;	From 0.01 GHz to 26.56GHz
ERL	Minimum cable assembly ERL(*) : ≥ 8.25dB	±0.1
SCD12-SDD12 SCD21-SDD21	≥ 10 0.05GHz≤f<12.89GHz ≥ 14-0.3108f 12.89GHz≤f≤40GHz	( up to 40GHz)

Mechanical Performance Requirements
Item	Test Condition	Specification
Mating Forces	A rate of 10mm per minute	OSFP<40N, QSFP<60N
Un-mating Forces	A rate of 10mm per minute	OSFP<30N, QSFP<30N
Latch strength	Pull to separate module from cage， Test with connector, cage & module (latch engaged)	Minimum of an 125N force
Bulk cable retention in module	Pull to separate bulk cable from module,Test with cable assembly only	Minimum of an 90N force
Wire Flex	Flex cable 180 ° for 10 cycles atX/Y axis,20 times/minutes, with an 1kg suspended weight. Type C EIA 364-41, test condition I.	No microsecond discontinuities are allowed.
Durability	Perform 50 unplug/plug cycles	No evidence of physical damage
Cable Minimum Bend Radius	Min. bending radius allowed : repeated 10X ø . single 5X ø	1. No physical damage 2. Verify continuity and SI

Pin Connection

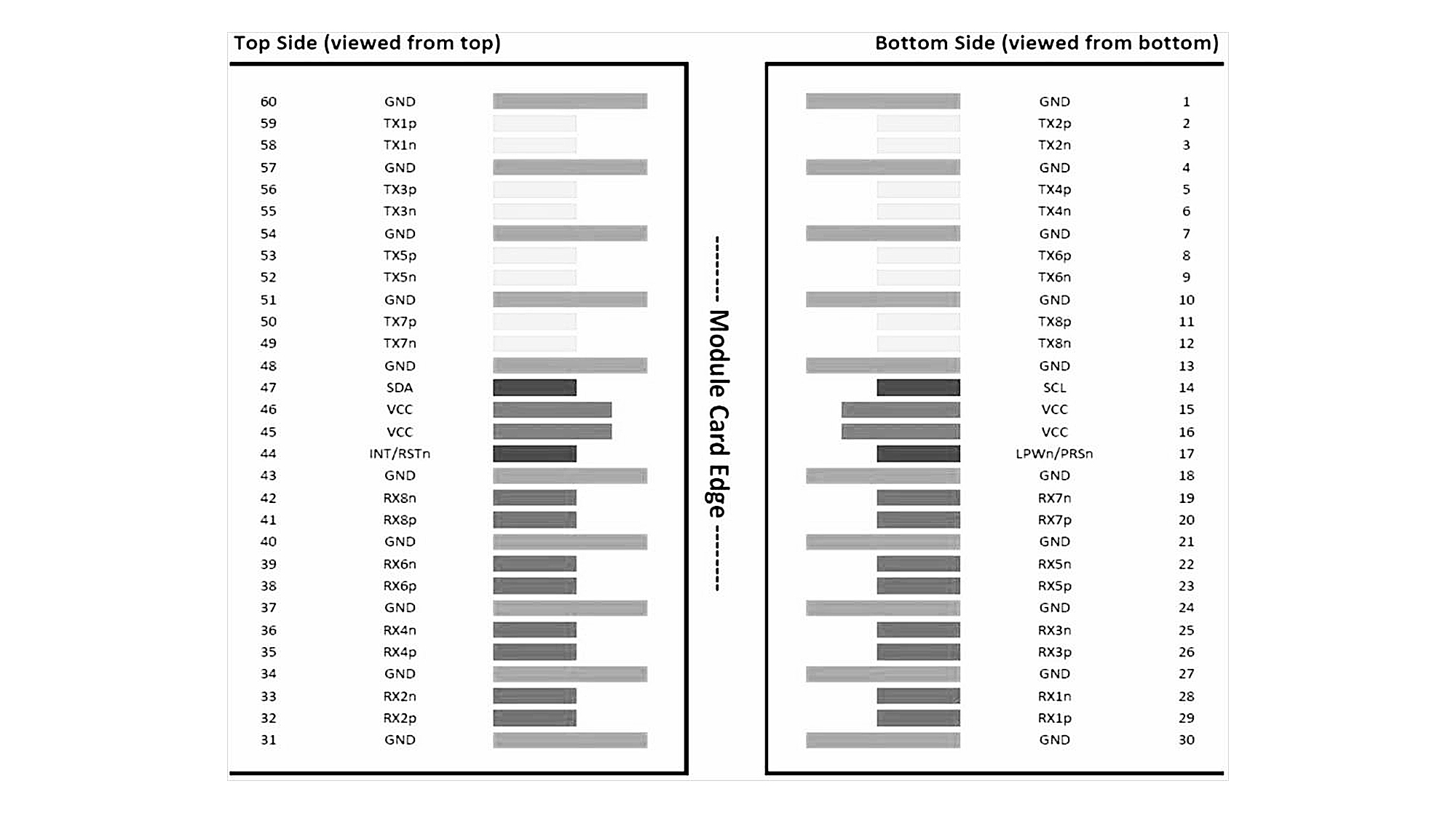

OSFP pin definitions as OSFP MSA defined

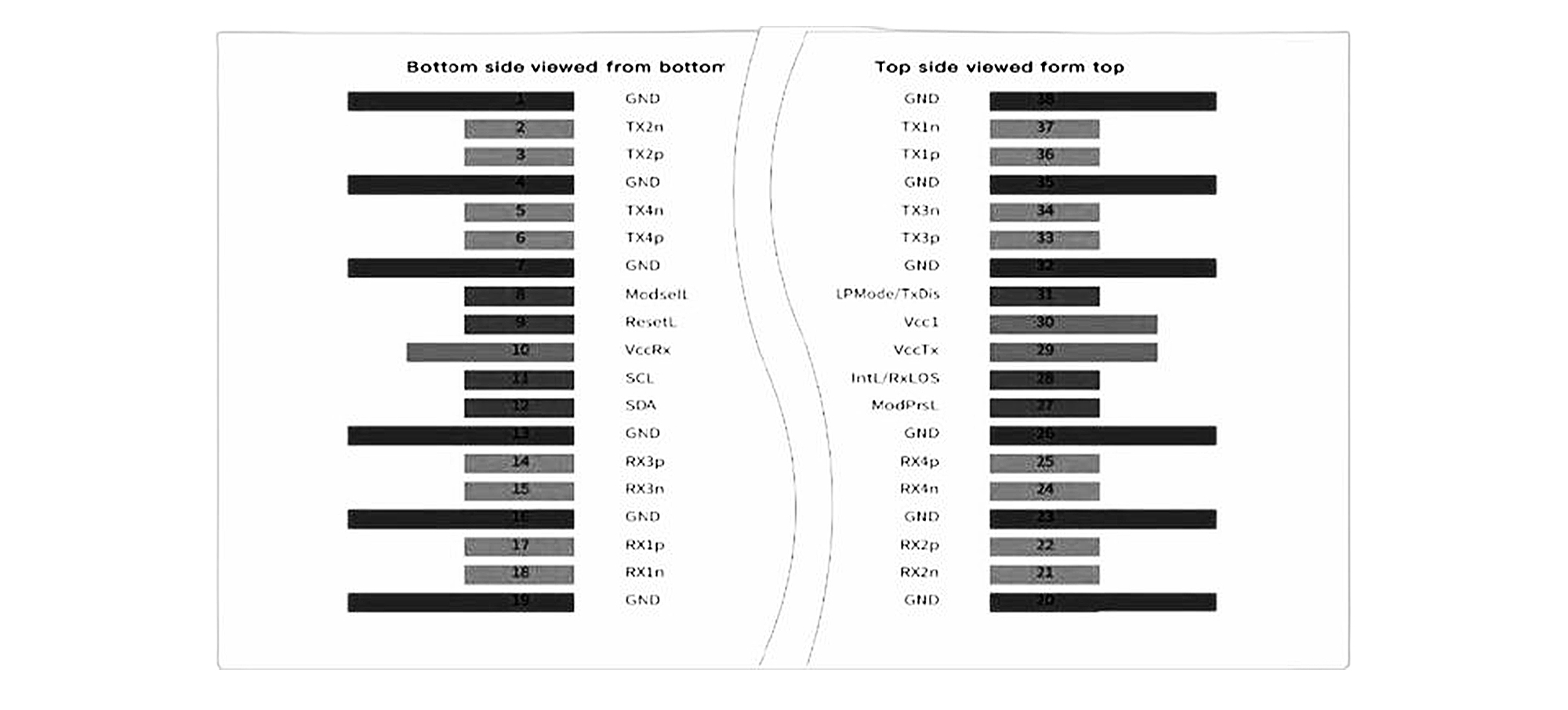

QSFP112 pin definitions as OSFP MSA defined

Wire Connection

Parameter	P1 (OSFP)		P2 (QSFP)
	Pin	Signal	Pin	Signal
1	26	RX1n	37	TX1n
	27	RX1p	36	TX1p
2	59	TX1p	17	RX1p
	58	TX1n	18	RX1n
3	33	RX2n	2	TX2n
	32	RX2p	3	TX2p
4	2	TX2p	22	RX2p
	3	TX2n	21	RX2n
5	25	RX3n	37	TX3n
	26	RX3p	36	TX3p
6	56	TX3p	17	RX3p
	55	TX3n	18	RX3n
7	36	RX4n	2	TX4n
	35	RX4p	3	TX4p
8	5	TX4p	22	RX4p
	6	TX4n	21	RX4n
9	22	RX5n	37	TX5n
	23	RX5p	36	TX5p
10	53	TX5p	17	RX5p
	52	TX5n	18	RX5n
11	39	RX6n	2	TX6n
	38	RX6p	3	TX6p
12	8	TX6p	22	RX6p
	9	TX6n	21	RX6n
13	19	RX7n	37	TX7n
	20	RX7p	36	TX7p
14	50	TX7p	17	RX7p
	49	TX7n	18	RX7n
15	42	RX8n	2	TX8n
	41	RX8p	3	TX8p
16	11	TX8p	22	RX8p
	12	TX8n	21	RX8n
