SPECIFICATIONS
Cable End Connector A	OSFP(FIN)	Cable End Connector B	4×OSFP(FTL)
Jumper Type	Active Optical Breakout Cable	Data Rate	800G
Aggregate Bit Rate	850Gbps	Lane Bit Rate	106.25Gbps
Number of Channels	8	Single Channel Rate	100G
Minimum Bend Radius	5X Cable OD -Single, 10X Cable OD - Repeated	Factory Brand	PHILISUN
Attenuation	28AWG:10dB/7m maximum 30AWG:8.4dB/5.5m maximum	Bit Error Rate	≤10-12
Shield	Braid/Foil	Wire AWG	28AWG/30AWG
Cable Type	Passive Twinax	Cable OD	30AWG:5.2mm 28AWG: 6.2mm
Cable Colour/Material	Black PET	Cable Length Selection	0.5-2meter
Protocols	CMIS 5.0/ IEEE 802.3ck/ OSFP MSA Rev5.0	Application Scenarios	800Gigabit Ethernet (800GbE)
Supply Voltage	3.3V	Power Dissipation	<0.1W
Operating Temperature	0 to 70℃ (32 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

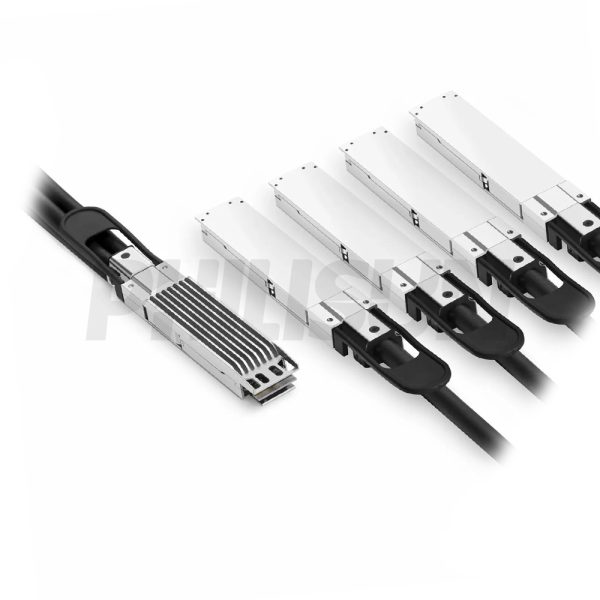

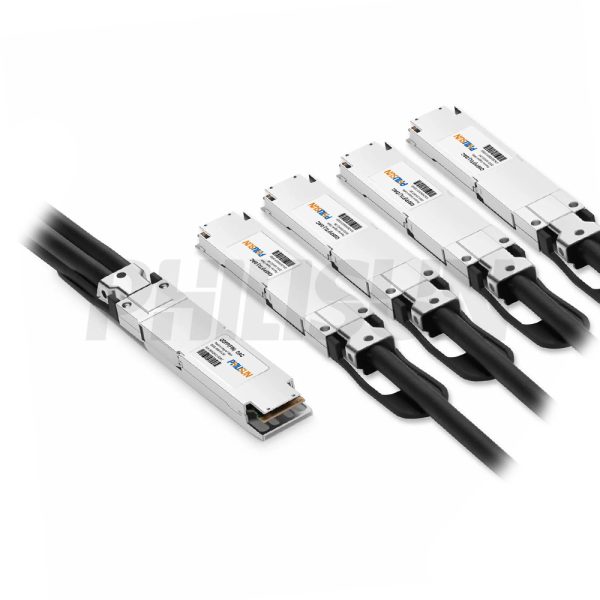

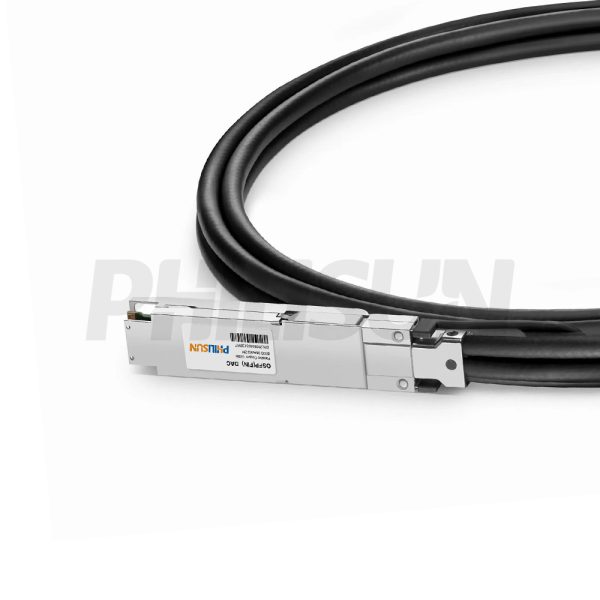

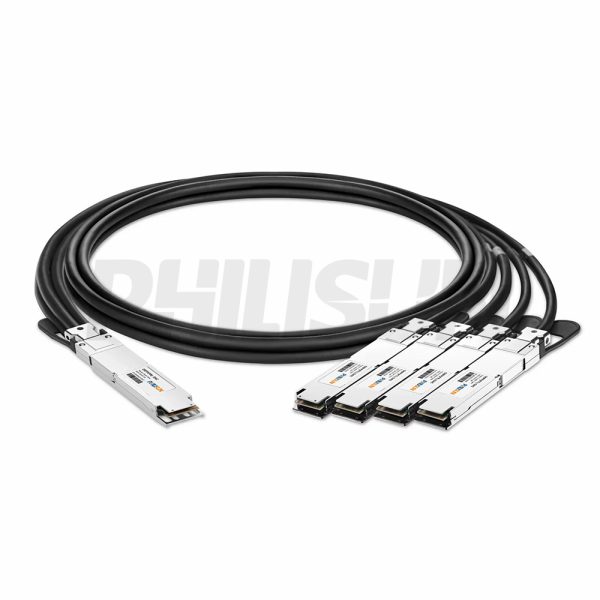

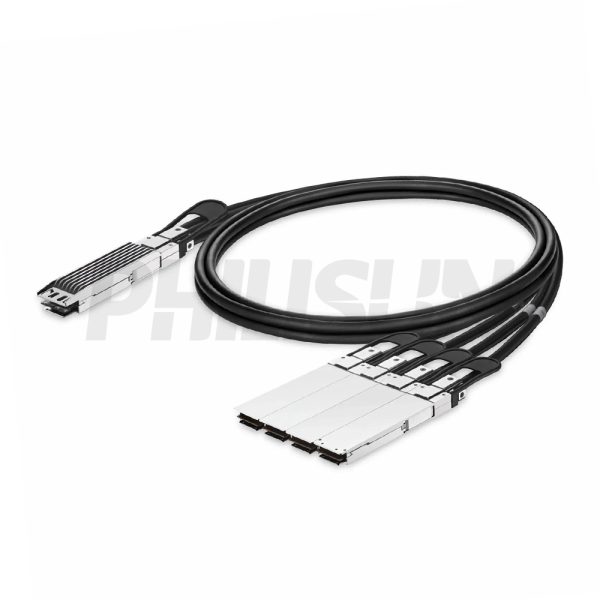

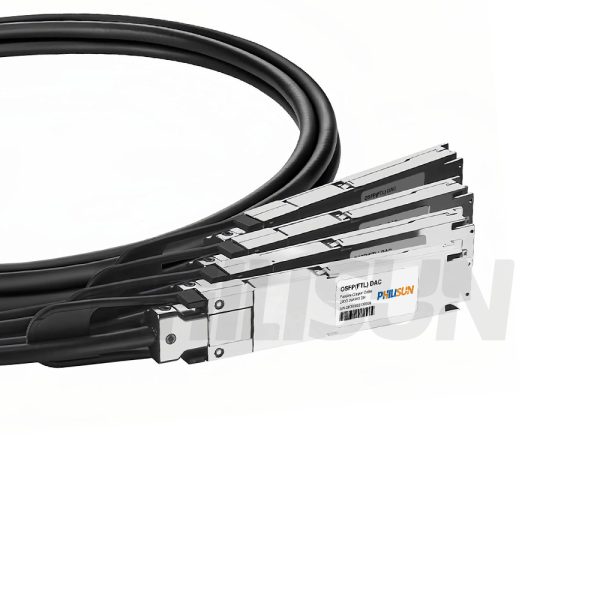

The PHILISUN OSFP(FIN) to 4×200G OSFP(FTL) is a 2×400Gb/s twin-port active direct attach copper (ACC) breakout cable, featuring a finned-top OSFP connector to four flat-top 200G OSFP connectors. It supports 100G-PAM4 modulation across eight high-speed copper pairs, each delivering up to 100Gb/s, and complies with IEEE 802.3ck, CMIS 5.0, and OSFP MSA Rev 5.0.
The finned-top connector enhances thermal cooling, while the flat-top connectors utilize cooling from adapter cages. Engineered to connect an 800Gb/s Spectrum-4 switch to four 200Gb/s ConnectX-7 OSFP modules, this cable integrates a redriver chip for transmission distances up to 5 meters with low latency. It improves bandwidth, density, and flexibility, making it ideal for power-efficient interconnections in data centers, AI/HPC clusters, and cross-rack applications.

DAC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Ratings
Parameters	Symbol	Min.	Max .	Unit
Operating Voltage	Vcc	3.135	3.465	V
Operating Temperature	–	0	+70	℃
Storage Temperature	Ts	-40	+85	℃
Humidity Operating	RH	–	85	%

Electrical Performance Requirements
Test Items	Test Conditions	Specification
Current	–	0.5A per contact
Voltage	–	30 vDC per contact
LLCR	EIA 364-23, 20mVdc, 100mA	less than 2 ohms.
Continuity	Verify the continuous electrical path	No open, short, or high resistance.

SI Requirements
Test Items	Specification	Notes
SDD21&SDD12	≤19.75 dB Min. @26.56 GHz; ≥ 11.0 dB max. @26.56GHz;	From 0.01 GHz to 26.56GHz
ERL	Minimum cable assembly ERL(*) : ≥ 8.25dB	/
SCD12-SDD12 SCD21-SDD21	≥ 10 0.05GHz≤f<12.89GHz ≥ 14-0.3108f 12.89GHz≤f≤40GHz	( up to 40GHz)

Mechanical Performance Requirements
Test Items	Test Condition	Specification
Mating Forces	A rate of 10mm per minute	OSFP<40N
Un-mating Forces	A rate of 10mm per minute	OSFP<30N
Latch strength	Pull to separate module from cage, Test with connector, cage & module (latch engaged)	Minimum of an 125N force
Bulk cable retention in module	Pull to separate bulk cable from module,Test with cable assembly only	Minimum of an 90N force
Wire Flex	Flex cable 180° for 10 cycles atX/Y axis, 20 times/minutes, with an 1kg suspended weight. Type C EIA 364-41, test condition I.	No microsecond discontinuities are allowed.
Durability	Perform 50 unplug/plug cycles	No evidence of physical damage.
Cable Minimum Bend Radius	Min. bending radius allowed : repeated 10X ø . single 5X ø	No physical damage, Verify continuity and SI

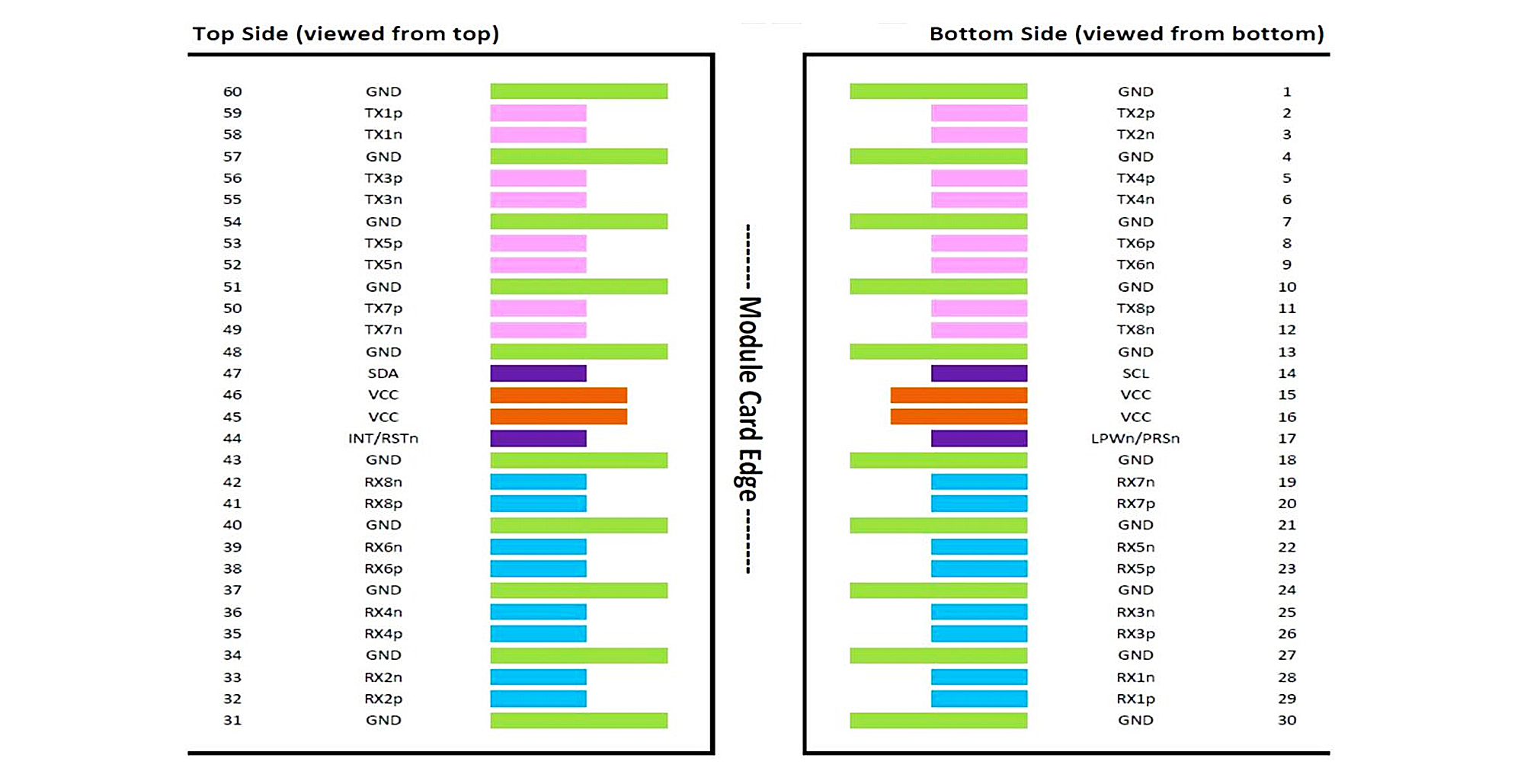

Pin Connection

OSFP pin definitions as OSFP MSA defined

Wire Connction

Pair No.	P1 (OSFP)		P2 (4xOSFP RHS)
	Pin	Signal	Pin	Signal
1	28	RX1n	58	TX1n(OSFP#1)
	29	RX1p	59	TX1p(OSFP#1)
2	59	TX1p	29	RX1p(OSFP#1)
	58	TX1n	28	RX1n(OSFP#1)
3	33	RX2n	3	TX2n(OSFP#1)
	32	RX2p	2	TX2p(OSFP#1)
4	2	TX2p	32	RX2p(OSFP#1)
	3	TX2n	33	RX2n(OSFP#1)
5	25	RX3n	58	TX1n(OSFP#2)
	26	RX3p	59	TX1p(OSFP#2)
6	56	TX3p	29	RX1p(OSFP#2)
	55	TX3n	28	RX1n(OSFP#2)
7	36	RX4n	3	TX2n(OSFP#2)
	35	RX4p	2	TX2p(OSFP#2)
8	5	TX4p	32	RX2p(OSFP#2)
	6	TX4n	33	RX2n(OSFP#2)
9	22	RX5n	58	TX1n(OSFP#3)
	23	RX5p	59	TX1p(OSFP#3)
10	53	TX5p	29	RX1p(OSFP#3)
	52	TX5n	28	RX1n(OSFP#3)
11	39	RX6n	3	TX2n(OSFP#3)
	38	RX6p	2	TX2p(OSFP#3)
12	8	TX6p	32	RX2p(OSFP#3)
	9	TX6n	33	RX2n(OSFP#3)
13	19	RX7n	58	TX1n(OSFP#4)
	20	RX7p	59	TX1p(OSFP#4)
14	50	TX7p	29	RX1p(OSFP#4)
	49	TX7n	28	RX1n(OSFP#4)
15	42	RX8n	3	TX2n(OSFP#4)
	41	RX8p	2	TX2p(OSFP#4)
16	11	TX8p	32	RX2p(OSFP#4)
	12	TX8n	33	RX2n(OSFP#4)

PRODUCT CERTIFICATION

COMPATIBLE BRANDS

CONFIGURATION INFORMATION

800G OSFP(FIN) to 4×200G OSFP(FTL) Passive Direct Attach Copper Twinax Cable (DAC)
