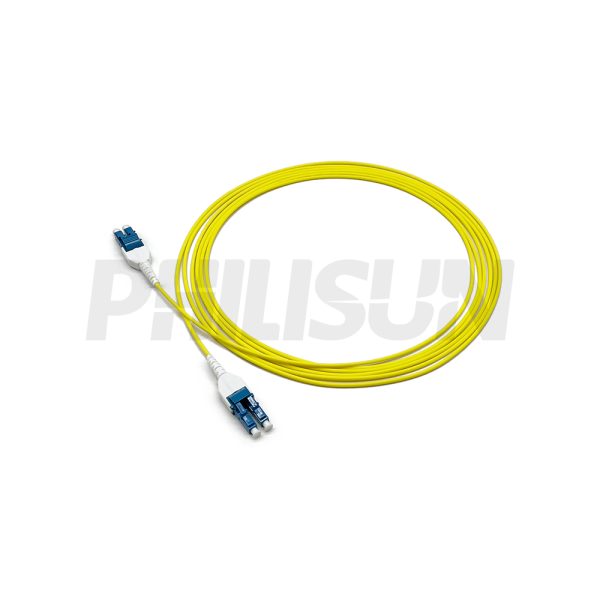

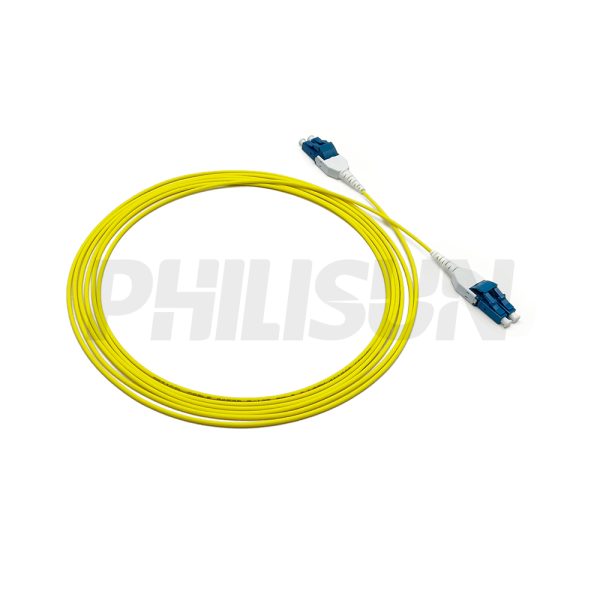

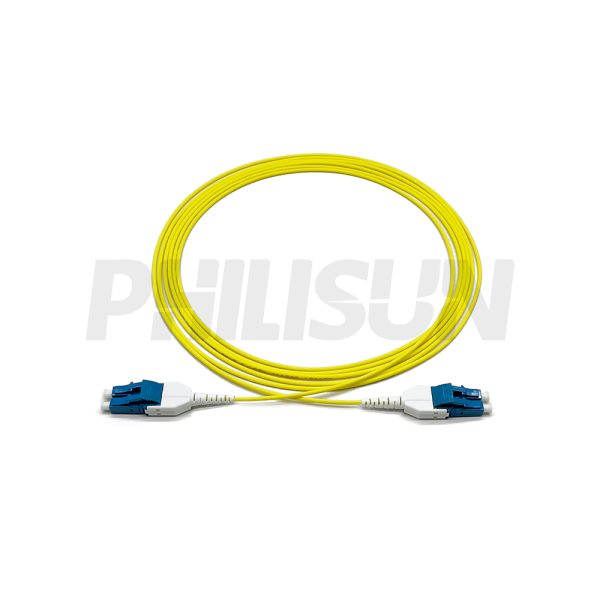

LC UPC/APC to LC UPC/APC Uniboot Duplex OS2 Singlemode Ordinary Fiber Optic Patch Cable
UNIBOOT
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | LC UNIBOOT | Fiber Count | Duplex |
| Fiber Type | SM OS2 | Polish Type | UPC or APC |
| Ferrule Type | Grade A zirconia ceramic ferrule | IL | ≤0.3dB |
| Connector Color | Blue/Green | RL | ≥50dB(UPC)≥60dB(APC) |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Function 1 | UNIBOOT | Working Wavelength | 1310/1550(SM) |
| Function 2 | Without Tab | Cable Color | Yellow |
| Function 3 | Without Switchable | Flame Retardant Grade | OFN/OFNR/OFNP |
| Cable Material | PVC/LSZH/TPU or customized | Fiber Loss | 0.35db@1310nm/0.2dB@1550nm |
| Fiber Brand | Corning/YOFC | Min.bending Radius(long term) | 20D |
| Min.bending Radius(Short Term) | 10D | Durability | ≥500 times |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
This LC Uniboot Cable is the Ordinary, cost-effective interconnect solution optimized for general network deployment, prioritizing minimal footprint. Its primary feature is the uniboot construction, which combines two fibers into a single jacket, dramatically reducing the cabling volume (Space-Saving). The OS2 Singlemode fiber is bend-insensitive, maintaining reliable low loss performance and high mechanical stability even when tightly routed.
PATCH CORD SERIES PRODUCTS

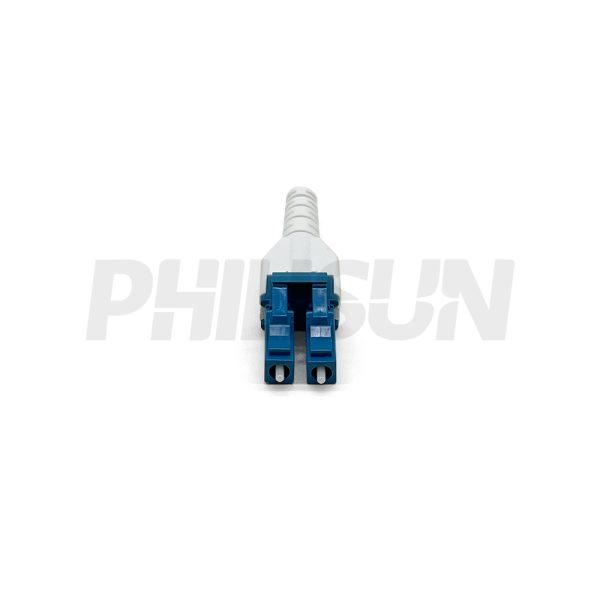

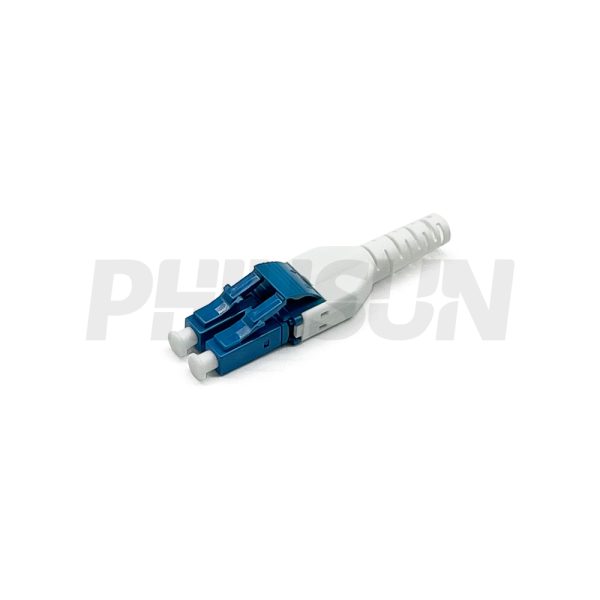

LC UNIBOOT CONNECTOR
