How to Clean Fiber Optic Connectors: Preventing the #1 Cause of Network Failure

In the world of high-speed data transmission, cleanliness isn’t just a virtue—it’s an absolute necessity. A staggering 98% of all fiber optic network failures can be traced back to one insidious culprit: contamination on connector end-faces. What might appear as a minor smudge or a tiny speck of dust to the naked eye can entirely block a light signal, cause significant insertion loss (IL), and lead to costly network downtime, link flapping, and equipment damage.

This definitive E-E-A-T guide will walk you through the essential process of inspecting and cleaning fiber optic connectors. Moving beyond generic advice, we’ll provide specific, practical instructions for common connector types like LC and SC, and crucially, dedicate significant attention to the often-misunderstood challenges of cleaning high-density MPO connectors—a critical skill for anyone deploying 40G, 100G, or 400G networks. By adhering to industry best practices, you can dramatically improve network reliability and extend the life of your expensive optical transceivers.

The Microscopic Threat: Why Dust is the Enemy

To understand the importance of cleaning, consider the scale:

• A Single-mode (OS2) fiber core is typically 9 micrometers in diameter—about 1/10th the width of a human hair.
• A Multimode (OM3/OM4) fiber core is 50 or 62.5 micrometers.
• A typical dust particle can be 1 to 25 micrometers or larger.

This means a single, invisible dust particle can completely obscure a single-mode fiber core, or scatter the light on a multimode core, leading to:

• High Insertion Loss (IL): The signal doesn’t reach the receiver at sufficient power.
• High Return Loss (RL): Signal is reflected back to the source, potentially destabilizing the laser.
• Permanent Damage: When a contaminated connector is mated, the pressure can embed debris into the end-face of the fiber or, worse, scratch or pit the sensitive lens of an Optical Transceiver, leading to irreversible damage.

Industry standards, particularly IEC 61300-3-35, provide rigorous pass/fail criteria for end-face quality. Meeting these standards is paramount for reliable high-speed links.

The “Inspect, Clean, Inspect” Protocol: Your Golden Rule

This three-step mantra is non-negotiable for anyone working with fiber optics:

1. Inspect: ALWAYS visually examine the connector end-face with a fiber inspection microscope or probe before connecting it or cleaning it.
2. Clean: If contamination is found, use the appropriate cleaning method.
3. Inspect (Again): ALWAYS re-inspect after cleaning to ensure all contaminants are removed and no new ones (like lint from a dirty wipe) have been introduced.

Essential Tools Needed:

• Fiber Inspection Microscope/Probe: Magnifies the end-face to visualize contamination. Available for both simplex/duplex (LC/SC) and MPO connectors.
• Fiber Optic Click Cleaner (Pen Cleaner): A dry cleaning tool specific to connector ferrule size (e.g., 1.25mm for LC, 2.5mm for SC, or MPO-specific).
• Lint-Free Wipes and Fiber Optic Cleaning Solvent (Isopropyl Alcohol >98%): For wet-to-dry cleaning.

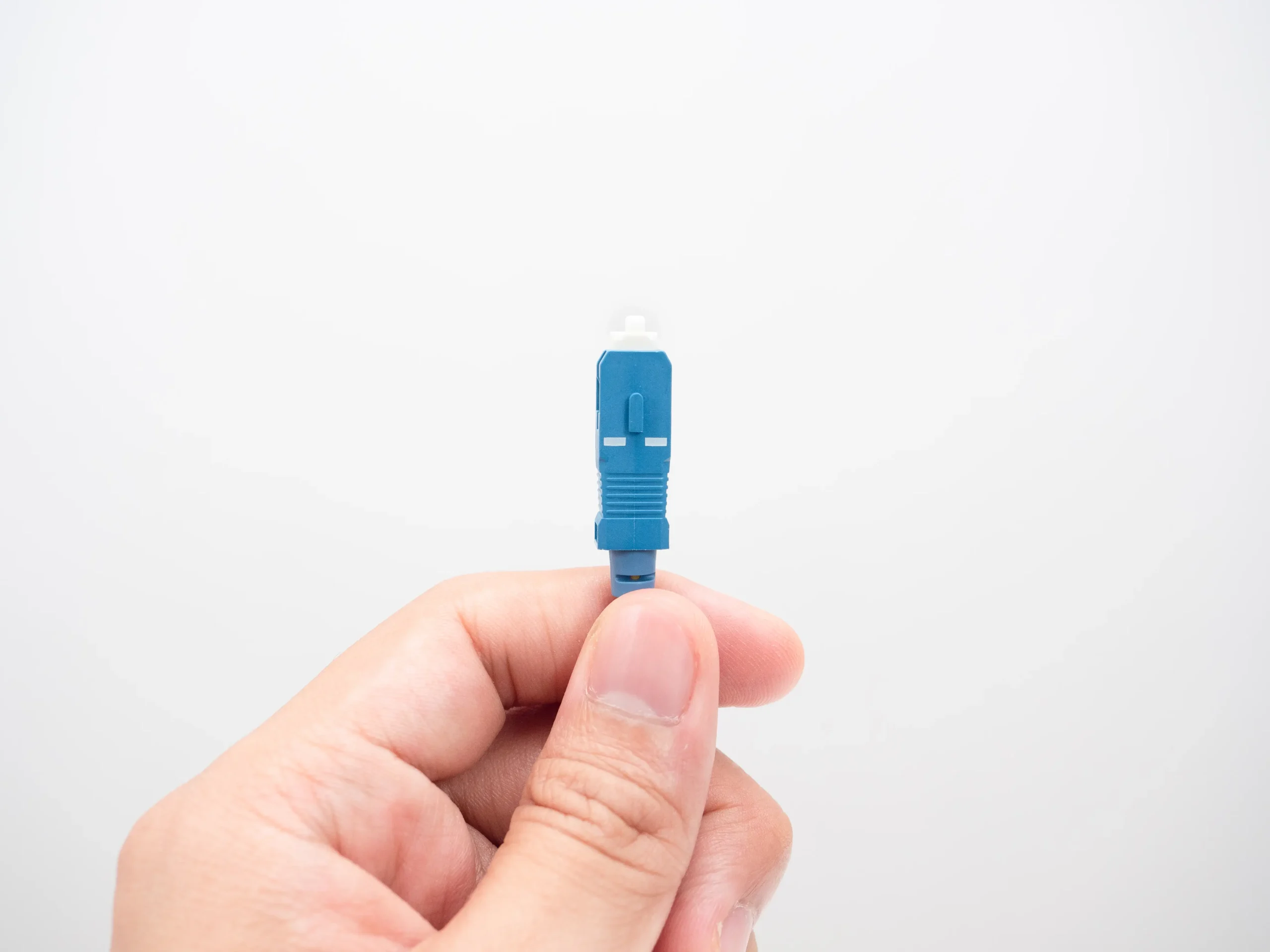

Cleaning Simplex/Duplex Connectors (LC/SC)

These are the most common single-fiber connectors.

Method 1: Dry Cleaning (Ideal for Light Dust)

1. Inspect: Use your microscope to check the end-face.
2. Click Cleaner: Insert the connector into the corresponding click cleaner. Push until you hear a “click” (this advances a fresh cleaning ribbon). Repeat 1-2 times.
3. Inspect: Re-inspect to confirm cleanliness.

Method 2: Wet-to-Dry Cleaning (For Oil, Grease, or Stubborn Contaminants)

1. Inspect: Use your microscope.
2. Apply Solvent: Dispense a small drop of fiber optic cleaning solvent (e.g., isopropyl alcohol) onto a fresh, lint-free cleaning wipe.
3. Wipe: Place the connector ferrule (the ceramic tip) firmly on the wet area of the wipe. In a single, firm motion, drag the ferrule across the wet area and then immediately across a dry, uncontaminated area of the wipe. Do NOT wipe back and forth.
4. Click Cleaner (Optional but Recommended): Use a click cleaner as a final dry pass to ensure no solvent residue remains.
5. Inspect: Re-inspect carefully. Ensure no residue or lint.

The Challenge: Cleaning MPO Connectors (High Priority for Data Centers)

MPO (Multi-fiber Push On) connectors, with their 8, 12, or 24 fibers in a single ferrule, present unique cleaning challenges:

• Large Surface Area: More potential for contamination across multiple fiber arrays.
• Alignment Pins: MPO connectors use small metal pins for precise alignment. Dirt on these pins can prevent proper mating, causing damage or signal loss even if the fiber end-face is clean.
• Transceiver Risk: Mating a dirty MPO connector with a 40G/100G QSFP/QSFP-DD Transceiver can cause irreparable damage to the transceiver’s delicate lens array.

The Solution: Specialized MPO Cleaning ToolsGeneric LC/SC cleaners are ineffective for MPO. You MUST use a cleaner specifically designed for MPO.

1. Inspect (MPO Scope): Use an MPO-specific fiber inspection probe/microscope. This tool shows all 8, 12, or 24 fibers simultaneously, which is critical.
2. MPO Click Cleaner: Insert the MPO connector directly into the MPO click cleaner. Push until you hear a click. Repeat once or twice. Many MPO cleaners also have an option to clean the alignment pins.
3. MPO Wet-to-Dry (for heavy contamination): Similar to LC/SC, but uses an MPO-specific cleaning card or wide, lint-free wipe designed to clean across the entire MPO ferrule face.
4. Inspect (Again): Critically important for MPO. Ensure all fibers and the entire ferrule surface are clean.

PHILISUN Integration: While PHILISUN MPO Jumpers come factory-terminated and rigorously tested for cleanliness (with interferometry reports available), it is crucial to remember that every time an MPO connector is unplugged and re-plugged, it must be inspected and potentially cleaned. This simple practice will protect your investment in high-speed optical transceivers and MPO cabling.

Common Mistakes to Avoid

• Touching the Ferrule: Even clean fingers leave oils and residue.
• Reusing Wipes/Swabs: Always use a fresh, uncontaminated surface.
• Cleaning Blindly: Never clean without prior inspection. You could be grinding dirt into the end face.
• Using Non-Optic Grade Alcohol: Regular rubbing alcohol can leave residues.
• Cleaning the Transceiver Port: Attempting to clean the inside of an SFP+ or QSFP transceiver port with a pen cleaner or swab is highly risky and can damage the internal lens. Only use specialized, vendor-approved port cleaners if absolutely necessary.

FAQ: Fiber Optic Connector Cleaning

• Q: Do I need to clean a brand-new fiber optic cable fresh out of its packaging?
  • A: Yes, absolutely. Static electricity can attract dust to the end-cap, and manufacturing processes, though controlled, can sometimes leave microscopic residues. Always inspect (and clean if necessary) even new PHILISUN cables before their first use.
• Q: Can I use a standard cloth or my shirt to clean fiber optic connectors?
  • A: Never. Standard cloths, tissues, or clothing will leave lint, fibers, and oils, making the contamination worse and potentially scratching the delicate end-face. Always use lint-free, optical-grade cleaning supplies.
• Q: What happens if I plug a dirty MPO cable into a QSFP/QSFP-DD transceiver?
  • A: This is one of the quickest ways to cause permanent damage. The physical pressure of mating can embed dirt particles into the transceiver’s internal lens array, creating pits or scratches that permanently degrade performance or render the transceiver unusable.
• Q: How often should I clean my fiber optic connectors?
  • A: The “Inspect, Clean, Inspect” rule applies. You should inspect and clean every time you disconnect and reconnect a fiber optic connector. For connections that remain unmated, inspection is less frequent but recommended during routine maintenance.
• Q: Are there automated cleaning solutions for large-scale deployments?
  • A: While most field cleaning is manual, some specialized tools exist for high-volume manufacturing environments. However, for data centers and enterprise networks, the careful “Inspect, Clean, Inspect” protocol with appropriate handheld tools remains the most effective and reliable method.

Conclusion: Cleanliness is Next to Network Uptime

The invisible world of fiber optic connectors holds the key to your network’s performance. Neglecting proper cleaning protocols for even a single connection can cascade into widespread downtime and costly hardware replacements. By adopting the “Inspect, Clean, Inspect” philosophy and using the correct tools, especially for intricate MPO connectors, you empower your network to operate at its full, intended speed and reliability. Don’t let a microscopic speck bring down your entire data center.
