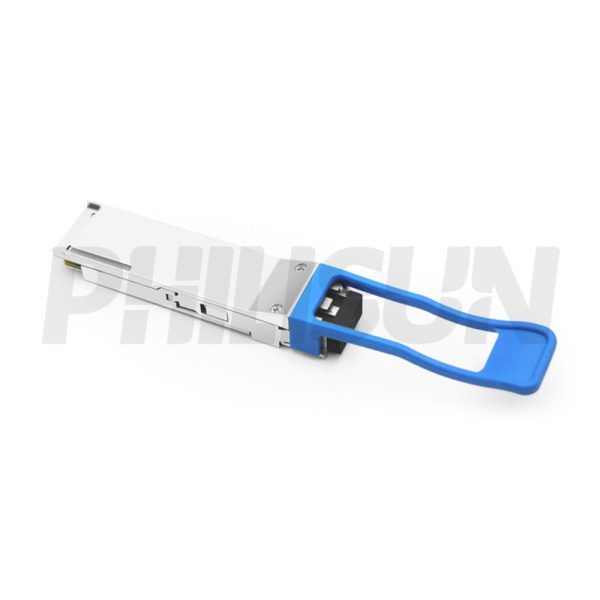

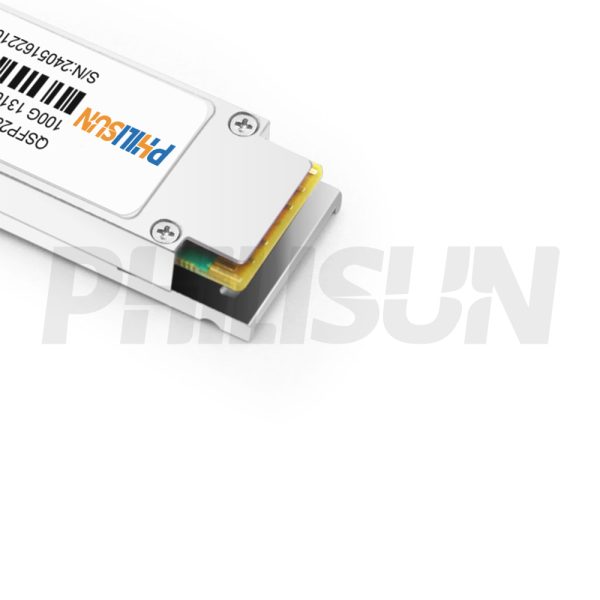

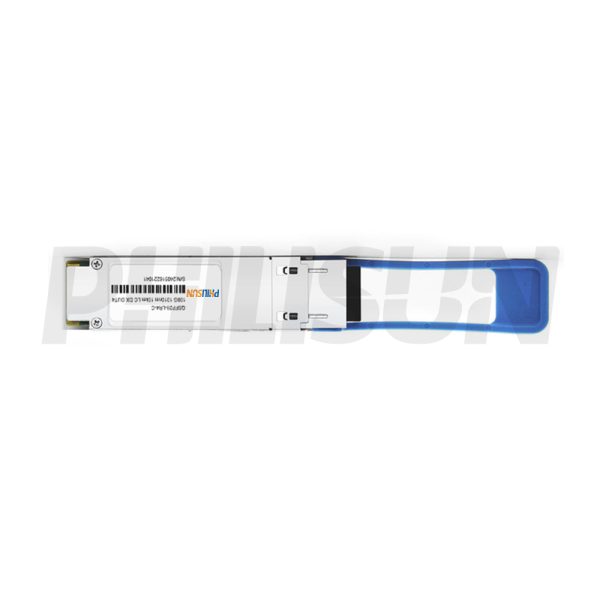

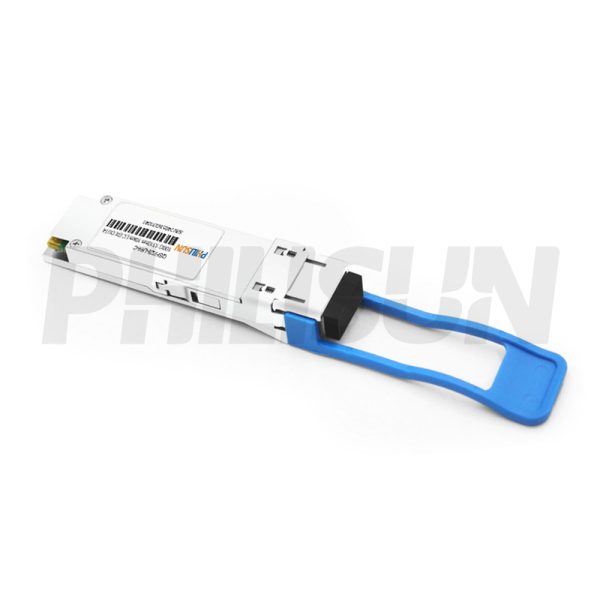

100G CWDM4 QSFP28 10km LC Transceiver

SPECIFICATIONS
Product Model	QSFP28-103-LW-10(LR4)-LCD-OUT4	Manufacturer brand	PHILISUN

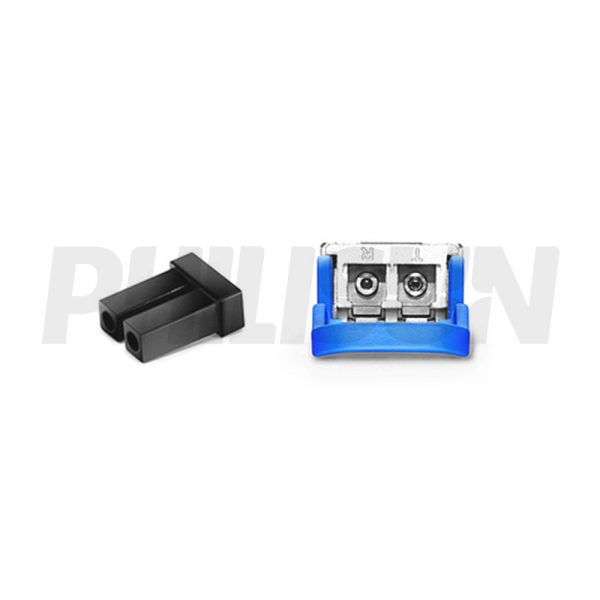

Package Type	QSFP28	Optical connector	LC DX
Max Data Rate	112Gbps	Channel Data Rate	27.9525Gbps
Effective transmission distance	10km
Wavelength	1310nm	Operating voltage	3.3V
Fiber Type	SMF	Core Size	9/125
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-0.6~4dBm	Receiver Sensitivity	-8.4dBm
Digital Optical Monitoring(DOM)	YES	Receiver Overload	4dBm
Power Consumption	<4W	Protocols	OTU4 411-9D1F
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

The PHILISUN QSFP28 100G LAN-WDM 10km LR4 LC DX OUT4 is a 100Gb/s transceiver module designed for optical communication applications, compliant with OTU4 411-9D1F requirements as specified in ITU-T Recommendations G.959.1, G.709, and Supplement 39 (G.sup39). The module converts four 28Gb/s electrical input channels into four LAN WDM optical signals, multiplexing them into a single channel for 100Gb/s optical transmission. On the receiver side, it de-multiplexes the 100Gb/s optical input back into four LAN WDM optical signals and converts them into four electrical output channels.The central wavelengths of the four LAN WDM channels are 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm, in accordance with the LAN WDM wavelength grid defined in IEEE 802.3ba. Equipped with high-performance cooled LAN WDM DFB transmitters and high-sensitivity PIN receivers, the module ensures exceptional performance.Designed according to the QSFP+ Multi-Source Agreement (MSA), this transceiver features a compact form factor, robust optical and electrical connections, and a digital diagnostic interface. It is engineered to operate reliably under harsh conditions, including extreme temperatures, high humidity, and EMI interference, making it ideal for demanding environments.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

103G 850nm 100M sr4 MPO 8 12 transceiver production and testing equipment

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	5	85	%
These values represent the damage threshold of the module.Stress in excess of any of theindividual absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.15	3.30	3.45	V
Operating case temperature	Tca	0	–	70	℃

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter
Input differential impedance	Rin	–	100	–	Ω	1
Single-ended input voltage tolerance	–	-0.3	–	4.0	V	–
AC common mode input voltage tolerance	–	15	–	–	mV	–
Differential input voltage	–	50	–	–	mV	–
Differential input voltage swing, per lane	Vin	190	–	1000	mV	–
Receiver
Output differential impedance	Rout	–	100	–	Ω	1
Differential output swing,per lane	Vout	300	–	900	mV	2
AC common mode output voltage tolerance	–	–	–	7.5	mV	–
Single-ended output voltage	–	-0.3	–	4.0	V	–
Notes: [1]AC coupled. [2]Into 100 ohm differentialter mination.

Transmitter Specifications-Optical
Parameter	Symbol	Min	Typical	Max	Unit	Ref.
Bit rate per lane	DR	27.9525±20ppm			Gb/s	1
Data rate variation	–	-20	–	20	ppm	–
Lane_0 center wavelength	λ0	1294.53	1295.56	1296.59	nm	–
Lane_1 center wavelength	λ1	1299.02	1300.05	1301.09	nm	–
Lane_2 center wavelength	λ2	1303.54	1304.58	1305.63	nm	–
Lane_3 center wavelength	λ3	1308.09	1309.14	1310.19	nm	–
Total average output power	Po	–	–	10.5	dBm	–
Average launch power each lane	–	-0.6	–	4	dBm	2,6
Difference in launch power between any two lanes(OMA)	–	–	–	5	dB	–
Extinction ratio	ER	4	–	–	dB	–
Side-mode suppression ratio	SMSR	30	–	–	dB	–
Average launch power of OFF transmitterper lane	Poff	–	–	-30	dBm	–
Transmitter reflectance	–	–	–	-12	dB	–
Optical return loss tolerance	ORL	–	–	20	dB	–
Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3}	{0.25,0.4,0.45,0.25,0.28,0.4}					3

Receiver Specifications-Optical
Parameter	Symbol	Min.	Typical	Max.	Unit	Ref.
Bit rate per channel	DR	27.9525±20ppm			Gb/s	4
Data rate variation	–	-20	–	20	ppm	–
Lane_0 center wavelength	λ0	1294.53	1295.56	1296.59	nm	–
Lane_1 center wavelength	λ1	1299.02	1300.05	1301.09	nm	–
Lane_2 center wavelength	入2	1303.54	1304.58	1305.63	nm	–
Lane_3 center wavelength	λ3	1308.09	1309.14	1310.19	nm	–
Average receive power per lane	RXPOW	-6.9	–	4	dBm	5,6
Receive sensitivity in OMA per lane	Rsen	–	–	-8.4	dBm	–
Optical return loss	ORL	–	–	-26	dB	–
LOS assert	Lsa	-25	–	–	dBm	–
LOS DE-assert	Lda	–	–	-12	dBm	–
LOS hysteresis	Lh	0.5	–	–	dB	–
Notes: [1]Transmitter consists of 4lasers operating at 27.95Gb/s each. [2]Minimum value is informative. [3]Hit ratio 5×10-5. [4]Receiver consists of4 photodetectors operatingat 27.95Gb/s each. [5]Minimum value is informative,equals min TxOMA with infinite ER and max channel insertion loss. [6]Power value and power accuracy are with allchannels on.

General Specifications
Parameter	Symbol	Min.	Typical	Max.	Unit	Ref.
Bit rate(all wavelengths combined)	BR	–	–	112	Gb/s	1
Bit error ratio @25.78Gb/s	BER	–	–	10-6	–	2
Maximum supported distances
Fiber type	–	–	–	–	–	–
SMF per G.652	Lmax	–	–	10	km	–
Notes: [1]Supports OTU4411-9D1F per ITU-T G.959.1. [2]Tested with a 231-1PRBS.

QSFP28 TRANSCEIVER ELECTRICAL PAD LAYOUT

PIN DEFINITION

Pin Definition
Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCCTx	+3.3V power supply transmitter
30	VCC1	+3.3V power supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted data input
37	Tx1n	Transmitter inverted data input
38	GND	Ground
